SPECpower_ssj2008
Power/Temperature Details
Copyright © 2007-2022 Standard Performance Evaluation Corporation
| Nettrix R620 G40 | SPECpower_ssj2008 = 10,799 overall ssj_ops/watt | ||||
| Test Sponsor: | Nettrix | SPEC License #: | 6138 | Test Method: | Single Node |
| Tested By: | Nettrix | Test Location: | Beijing,China | Test Date: | Jun 17, 2022 |
| Hardware Availability: | Jun-2022 | Software Availability: | Jun-2022 | Publication: | Jul 12, 2022 |
| System Source: | Single Supplier | System Designation: | Server | Power Provisioning: | Line-powered |

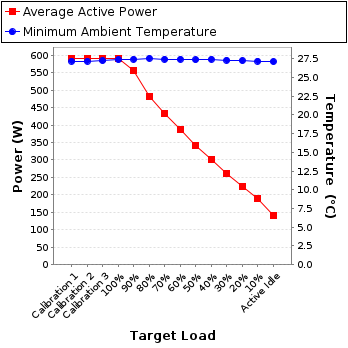

| Target Load | Average Active Power (W) | Minimum Ambient Temperature (°C) |
|---|---|---|
| Calibration 1 | 591 | 27.2 |
| Calibration 2 | 591 | 27.2 |
| Calibration 3 | 591 | 27.2 |
| 100% | 591 | 27.4 |
| 90% | 556 | 27.4 |
| 80% | 482 | 27.6 |
| 70% | 434 | 27.4 |
| 60% | 386 | 27.4 |
| 50% | 341 | 27.4 |
| 40% | 300 | 27.4 |
| 30% | 261 | 27.3 |
| 20% | 225 | 27.2 |
| 10% | 191 | 27.2 |
| Active Idle | 142 | 27.1 |
| Power Analyzer pwr1 | |
|---|---|
| Hardware Vendor: | YOKOGAWA |
| Model: | WT310E |
| Serial Number: | C3TF05047E |
| Connectivity: | USB |
| Input Connection: | Default |
| Metrology Institute: | CETC |
| Accredited by: | Calibration Laboratory of CETC |
| Calibration Label: | C3VB14026E |
| Date of Calibration: | 29-Mar-2022 |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| PTDaemon Version: | 1.9.2-3976349f-20201208 |
| Setup Description: | Attached to SUT Power Supplier Unit 1 |
| Temperature Sensor temp1 | |
|---|---|
| Hardware Vendor: | iButton Link Technology |
| Model: | iButton Link T-Sense/T-Probe |
| Driver Version: | 2.12.36.4 |
| Connectivity: | USB2Serial |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| Setup Description: | 10mm in front of SUT main airflow intake |

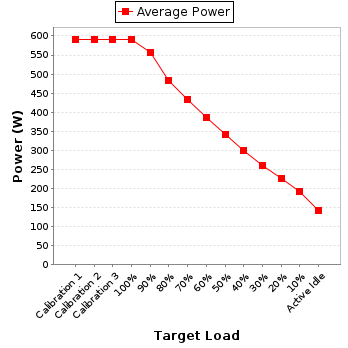

| Target Load | Voltage (V) | Current (A) | Avg Power Factor | Avg Active Power (W) | Power Measurement Uncertainty (%) | ||
|---|---|---|---|---|---|---|---|
| Avg | Range | Avg | Range | ||||
| Calibration 1 | 223 | 300.0 | 2.67 | 5.0 | 0.994 | 591 | 0.3% |
| Calibration 2 | 223 | 300.0 | 2.67 | 5.0 | 0.995 | 591 | 0.3% |
| Calibration 3 | 222 | 300.0 | 2.68 | 5.0 | 0.994 | 591 | 0.3% |
| 100% | 222 | 300.0 | 2.68 | 5.0 | 0.994 | 591 | 0.3% |
| 90% | 223 | 300.0 | 2.52 | 5.0 | 0.994 | 556 | 0.3% |
| 80% | 222 | 300.0 | 2.19 | 5.0 | 0.990 | 482 | 0.3% |
| 70% | 223 | 300.0 | 1.97 | 5.0 | 0.990 | 434 | 0.3% |
| 60% | 223 | 300.0 | 1.75 | 5.0 | 0.989 | 386 | 0.3% |
| 50% | 223 | 300.0 | 1.55 | 5.0 | 0.986 | 341 | 0.4% |
| 40% | 223 | 300.0 | 1.36 | 5.0 | 0.986 | 300 | 0.4% |
| 30% | 224 | 300.0 | 1.19 | 5.0 | 0.983 | 261 | 0.4% |
| 20% | 224 | 300.0 | 1.03 | 5.0 | 0.979 | 225 | 0.5% |
| 10% | 224 | 300.0 | 0.875 | 5.0 | 0.973 | 191 | 0.5% |
| Active Idle | 225 | 300.0 | 0.659 | 5.0 | 0.956 | 142 | 0.7% |
