SPECpower_ssj2008
Power/Temperature Details
Copyright © 2007-2022 Standard Performance Evaluation Corporation
| ASUSTeK Computer Inc. RS700A-E11-RS4U | SPECpower_ssj2008 = 25,302 overall ssj_ops/watt | ||||
| Test Sponsor: | ASUSTeK Computer Inc. | SPEC License #: | 9016 | Test Method: | Single Node |
| Tested By: | ASUSTeK Computer Inc. | Test Location: | Taipei, Taiwan. | Test Date: | Jun 16, 2022 |
| Hardware Availability: | May-2022 | Software Availability: | May-2022 | Publication: | Jul 13, 2022 |
| System Source: | Single Supplier | System Designation: | Server | Power Provisioning: | Line-powered |

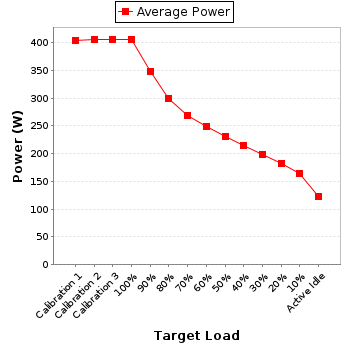

| Target Load | Average Active Power (W) | Minimum Ambient Temperature (°C) |
|---|---|---|
| Calibration 1 | 403 | 20.9 |
| Calibration 2 | 406 | 21.0 |
| Calibration 3 | 406 | 21.1 |
| 100% | 406 | 21.2 |
| 90% | 349 | 21.2 |
| 80% | 299 | 21.2 |
| 70% | 268 | 21.1 |
| 60% | 249 | 21.1 |
| 50% | 232 | 21.1 |
| 40% | 214 | 21.1 |
| 30% | 198 | 21.1 |
| 20% | 182 | 21.0 |
| 10% | 164 | 21.0 |
| Active Idle | 122 | 21.0 |
| Power Analyzer pwr1 | |
|---|---|
| Hardware Vendor: | YOKOGAWA, Inc. |
| Model: | WT210 |
| Serial Number: | 91J615902 |
| Connectivity: | RS-232 |
| Input Connection: | Default |
| Metrology Institute: | National Measurement Laboratory of the R.O.C. |
| Accredited by: | OMNIO Calibration Laboratory Ltd. |
| Calibration Label: | OCL-1122107F02C1 |
| Date of Calibration: | 2-Jul-2021 |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| PTDaemon Version: | 1.9.2-3976349f-20201208 |
| Setup Description: | Connected to PSU1 |
| Temperature Sensor temp1 | |
|---|---|
| Hardware Vendor: | Digi International Inc. |
| Model: | Watchport/H |
| Driver Version: | 5.70.105.0 |
| Connectivity: | USB |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| Setup Description: | placed in front the main airflow inlet of the SUT less than 50 mm. |
| Target Load | Voltage (V) | Current (A) | Avg Power Factor | Avg Active Power (W) | Power Measurement Uncertainty (%) | ||
|---|---|---|---|---|---|---|---|
| Avg | Range | Avg | Range | ||||
| Calibration 1 | 221 | 300.0 | 1.84 | 5.0 | 0.991 | 403 | 0.5% |
| Calibration 2 | 221 | 300.0 | 1.85 | 5.0 | 0.991 | 406 | 0.5% |
| Calibration 3 | 221 | 300.0 | 1.85 | 5.0 | 0.991 | 406 | 0.5% |
| 100% | 221 | 300.0 | 1.85 | 5.0 | 0.991 | 406 | 0.5% |
| 90% | 222 | 300.0 | 1.59 | 5.0 | 0.989 | 349 | 0.6% |
| 80% | 222 | 300.0 | 1.37 | 5.0 | 0.986 | 299 | 0.7% |
| 70% | 222 | 300.0 | 1.23 | 5.0 | 0.985 | 268 | 0.7% |
| 60% | 222 | 300.0 | 1.14 | 5.0 | 0.984 | 249 | 0.8% |
| 50% | 223 | 300.0 | 1.06 | 2.0 | 0.983 | 232 | 0.4% |
| 40% | 223 | 300.0 | 0.980 | 2.0 | 0.982 | 214 | 0.5% |
| 30% | 223 | 300.0 | 0.907 | 2.0 | 0.981 | 198 | 0.5% |
| 20% | 223 | 300.0 | 0.834 | 2.0 | 0.980 | 182 | 0.5% |
| 10% | 223 | 300.0 | 0.752 | 2.0 | 0.978 | 164 | 0.6% |
| Active Idle | 223 | 300.0 | 0.583 | 1.0 | 0.943 | 122 | 0.5% |
