SPECpower_ssj2008

Lenovo Global Technology ThinkSystem SN550 V2			SPECpower_ssj2008 = 9,878 overall ssj_ops/watt
Test Sponsor:	Lenovo Global Technology	SPEC License #:	9017	Test Method:	Multi Node
Tested By:	Lenovo Global Technology	Test Location:	Beijing, China	Test Date:	Apr 20, 2022
Hardware Availability:	Jul-2021	Software Availability:	Dec-2019	Publication:	May 24, 2022
System Source:	Single Supplier	System Designation:	Server	Power Provisioning:	Line-powered

# of Nodes	# of Chips	# of Cores	# of Threads	Total RAM (GB)	# of OS Images	# of JVM Instances
14	28	896	1,792	3,584	14	896

Shared Hardware
Enclosure:	Lenovo Flex System Enterprise Chassis with CMM2 (00FJ669) standard (Model 8721)
Form Factor:	10U
Power Supply Quantity and Rating (W):	6 x 2500
Power Supply Details:	Flex System Enterprise Chassis 2500W Power Module (Lenovo P/N:43W9049)
Network Switch:	Extreme Summit X670V
Network Switch Details:	48-PORT Extreme Summit X670V
KVM Switch:	None
KVM Switch Details:	None
Other Hardware:	None
Comment:	Network switch did not measure for Power

Hardware per Node
Hardware Vendor:	Lenovo Global Technology
Model:	ThinkSystem SN550 V2
Form Factor:	10U
CPU Name:	Intel Xeon Platinum 8352M
CPU Characteristics:	32 Core, 2.30GHz, 48MB L3 Cache
CPU Frequency (MHz):	2300
CPU(s) Enabled:	64 cores, 2 chips, 32 cores/chip
Hardware Threads:	128 (2 / core)
CPU(s) Orderable:	1,2 chips
Primary Cache:	32 KB I + 48 KB D on chip per core
Secondary Cache:	1280 KB I+D on chip per core
Tertiary Cache:	48 MB I+D on chip per chip
Other Cache:	None
Memory Amount (GB):	256
# and size of DIMM:	16 x 16 GB
Memory Details:	16GB 2Rx8 PC4-3200AA-RE2-12-MH1; slots 1,2,3,4,5,6,7,8,9,10,11,12,13,14,15 and 16 for each processor
Power Supply Quantity and Rating (W):	None
Power Supply Details:	Shared
Disk Drive:	1 x 128GB M.2 SSD P/N:7N47A00130 M.2 Module P/N:4Y37A09738
Disk Controller:	Integrated SATA controller
# and type of Network Interface Cards (NICs) Installed:	1 x Flex System CN4052S 2-port 10Gb Virtual Fabric Adapter P/N:00AG540
NICs Enabled in Firmware / OS / Connected:	2/2/1
Network Speed (Mbit):	10000
Keyboard:	None
Mouse:	None
Monitor:	None
Optical Drives:	No
Other Hardware:	None

Software per Node
Power Management:	Enabled (see SUT Notes)
Operating System (OS):	Suse Linux Enterprise Server 12 SP5
OS Version:	4.12.14-120-default
Filesystem:	btrfs
JVM Vendor:	Oracle Corporation
JVM Version:	Java HotSpot(TM) 64-Bit Server VM 18.9 (build 11.0.5+10-LTS, mixed mode)
JVM Command-line Options:	-server -Xss256k -Xmn1700m -Xms1950m -Xmx1950m -XX:UseSSE=4 -XX:UseAVX=1 -XX:SurvivorRatio=1 -XX:TargetSurvivorRatio=99 -XX:ParallelGCThreads=2 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=4 -XX:LoopUnrollLimit=45 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:InlineSmallCode=4000 -XX:MaxInlineSize=300 -XX:FreqInlineSize=2500 -XX:+UseLargePages -XX:+UseParallelOldGC -XX:LargePageSizeInBytes=2m -XX:+UseBiasedLocking -XX:+UseHugeTLBFS -XX:+UseTransparentHugePages
JVM Affinity:	for each physicalCore { numactl -C physicalCoreId, physicalCoreId + 1, physicalCoreId + 64, physicalCoreId + 65 }
JVM Instances:	64
JVM Initial Heap (MB):	1950
JVM Maximum Heap (MB):	1950
JVM Address Bits:	64
Boot Firmware Version:	U8E115M
Management Firmware Version:	TGBT29S
Workload Version:	SSJ 1.2.10
Director Location:	Controller
Other Software:	None

none

Benchmark started via ssh
Each JVM instance was affinitized to two threads on a single socket
echo 960000 > /proc/sys/kernel/sched_rt_runtime_us
echo 16000000 > /proc/sys/kernel/sched_latency_ns
echo 9000000 > /proc/sys/kernel/sched_min_granularity_ns
Yes: The test sponsor attests, as of date of publication, that CVE-2017-5754 (Meltdown) is mitigated in the system as tested and documented
Yes: The test sponsor attests, as of date of publication, that CVE-2017-5753 (Spectre variant 1) is mitigated in the system as tested and documented
Yes: The test sponsor attests, as of date of publication, that CVE-2017-5715 (Spectre variant 2) is mitigated in the system as tested and documented

Software
Operating System (OS):	Microsoft Windows Server 2019 DataCenter - Version 1809 (OS Build 17763.2268)
JVM Vendor:	Oracle Corporation
JVM Version:	Oracle Java HotSpot(TM) 64-Bit Server VM (build 24.80-b11, mixed mode), version 1.7.0_80
CCS Version:	1.2.6

Power Analyzer pwr1
Hardware Vendor:	YOKOGAWA, Inc.
Model:	WT310E
Serial Number:	C3UG05014E
Connectivity:	USB
Input Connection:	Default
Metrology Institute:	China National Accreditation Service for Conformity Assessment (CNAS)
Accredited by:	GUANG ZHOU GRG METROLOGY & TEST CO.,LTD.
Calibration Label:	J202110137471A-0004
Date of Calibration:	21-Oct-2021
PTDaemon Host System:	same as CCS
PTDaemon Host OS:	same as CCS
PTDaemon Version:	1.9.2-3976349f-20201208
Setup Description:	Connected to PSU 1,PSU 2,PSU 3

Power Analyzer pwr2
Hardware Vendor:	YOKOGAWA, Inc.
Model:	WT310E
Serial Number:	C3UG05013E
Connectivity:	USB
Input Connection:	Default
Metrology Institute:	China National Accreditation Service for Conformity Assessment (CNAS)
Accredited by:	GUANG ZHOU GRG METROLOGY & TEST CO.,LTD.
Calibration Label:	J202110137471A-0001
Date of Calibration:	21-Oct-2021
PTDaemon Host System:	same as CCS
PTDaemon Host OS:	same as CCS
PTDaemon Version:	1.9.2-3976349f-20201208
Setup Description:	Connected to PSU 4,PSU 5,PSU 6

SPECpower_ssj.props input.load_level.number_warehouses set to 128 due to a known inconsistency in processor reporting with this Java version.

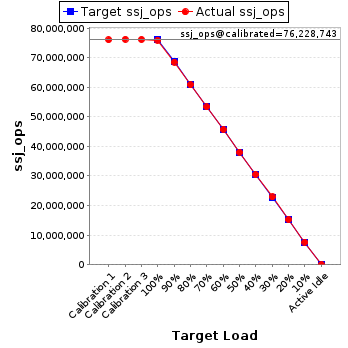

Target Load	Average Active Power (W)	Minimum Ambient Temperature (°C)
100%	5,637	21.6
90%	5,087	21.6
80%	4,682	21.7
70%	4,377	21.6
60%	4,087	21.7
50%	3,822	21.9
40%	3,568	21.9
30%	3,294	21.7
20%	3,021	21.8
10%	2,709	22.0
Active Idle	2,115	22.4

Line Standard	Minimum Temperature (°C)	Elevation (m)
220V / 60 Hz / 1 phase / 2 wires	21.6	43

See the Power/Temperature Details Report for additional details.

See the Aggregate Performance Report for additional details.

SPECpower_ssj2008 Reporter Version: [SSJ 1.2.10, May 9, 2012]
