Inspur Corporation Inspur i24LM6 SPECpower_ssj2008 = 7,275 overall ssj_ops/watt
Test Sponsor: Inspur Corporation SPEC License #: 3358 Test Method: Single Node
Tested By: Inspur Corporation Test Location: JINAN, CHINA Test Date: Mar 9, 2022
Hardware Availability: Jan-2022 Software Availability: Aug-2021 Publication: Apr 29, 2022
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Average Active Power (W) Minimum Ambient Temperature (°C)
Calibration 1 770 23.8
Calibration 2 770 24.0
Calibration 3 770 24.2
100% 769 24.3
90% 743 24.4
80% 710 24.4
70% 670 24.4
60% 630 24.3
50% 589 24.2
40% 551 24.2
30% 513 24.2
20% 474 24.1
10% 437 24.0
Active Idle 348 23.9

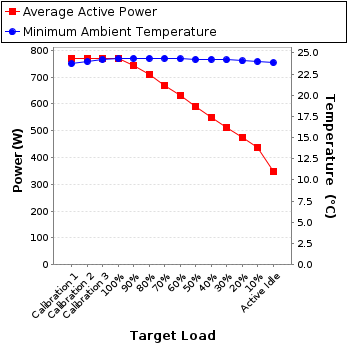

Graph of power and temperature
Measurement Devices
Power Analyzer pwr1
Hardware Vendor: Yokogawa Meters and Instruments Corporation
Model: WT310E
Serial Number: C3TA11005E
Connectivity: RS-232
Input Connection: Default
Metrology Institute: China National Accreditation Service for Conformity Assessment (CNAS)
Accredited by: Calibration and Testing Center of CEPREI
Calibration Label: J202110192703C-0118
Date of Calibration: 16-Nov-2021
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
PTDaemon Version: 1.9.2-3976349f-20201208
Setup Description: Connected to SUT PSU
Temperature Sensor temp1
Hardware Vendor: Digi
Model: Watchport/H
Driver Version: 5.70.105.0
Connectivity: USB
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
Setup Description: placed in front the main airflow inlet of the SUT less than 50mm.
Notes
SPECpower_ssj.props input.load_level.number_warehouses set to 152 due to a known inconsistency in processor reporting with this Java version
Power Details for Device pwr1
Target Load Voltage (V) Current (A) Avg Power Factor Avg Active Power (W) Power Measurement Uncertainty (%)
Avg Range Avg Range
Calibration 1 222 300.0 3.50 10.0 0.991 770 0.3%
Calibration 2 222 300.0 3.50 10.0 0.991 770 0.3%
Calibration 3 222 300.0 3.50 10.0 0.991 770 0.3%
100% 222 300.0 3.50 10.0 0.991 769 0.3%
90% 222 300.0 3.38 10.0 0.991 743 0.3%
80% 222 300.0 3.22 10.0 0.993 710 0.3%
70% 222 300.0 3.05 10.0 0.992 670 0.4%
60% 222 300.0 2.86 10.0 0.991 630 0.4%
50% 222 300.0 2.68 10.0 0.990 589 0.4%
40% 220 300.0 2.52 10.0 0.990 551 0.4%
30% 220 300.0 2.35 10.0 0.990 513 0.4%
20% 220 300.0 2.18 10.0 0.989 474 0.4%
10% 221 300.0 2.01 10.0 0.987 437 0.5%
Active Idle 221 300.0 1.61 5.0 0.979 348 0.4%

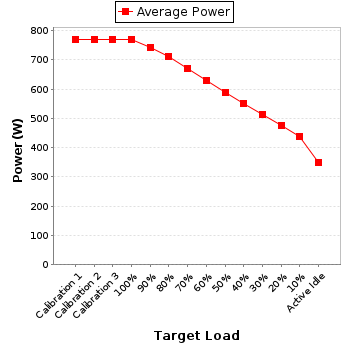

Power details for pwr1
