SPECpower_ssj2008
Power/Temperature Details
Copyright © 2007-2022 Standard Performance Evaluation Corporation
| Hewlett Packard Enterprise ProLiant DL20 Gen10 Plus | SPECpower_ssj2008 = 9,658 overall ssj_ops/watt | ||||
| Test Sponsor: | Hewlett Packard Enterprise | SPEC License #: | 3 | Test Method: | Single Node |
| Tested By: | Hewlett Packard Enterprise | Test Location: | Houston, TX, USA | Test Date: | Feb 14, 2022 |
| Hardware Availability: | Mar-2022 | Software Availability: | Oct-2020 | Publication: | Mar 24, 2022 |
| System Source: | Single Supplier | System Designation: | Server | Power Provisioning: | Line-powered |

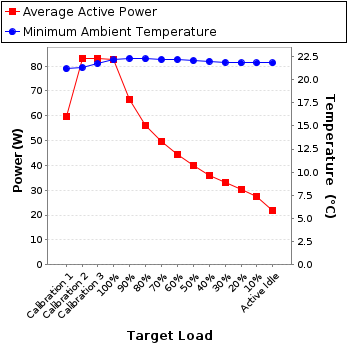

| Target Load | Average Active Power (W) | Minimum Ambient Temperature (°C) |
|---|---|---|
| Calibration 1 | 59.6 | 21.2 |
| Calibration 2 | 83.0 | 21.3 |
| Calibration 3 | 83.2 | 21.8 |
| 100% | 82.8 | 22.1 |
| 90% | 66.4 | 22.3 |
| 80% | 55.9 | 22.2 |
| 70% | 49.7 | 22.2 |
| 60% | 44.5 | 22.2 |
| 50% | 40.1 | 22.1 |
| 40% | 36.1 | 22.0 |
| 30% | 33.2 | 21.9 |
| 20% | 30.5 | 21.8 |
| 10% | 27.5 | 21.8 |
| Active Idle | 21.7 | 21.8 |
| Power Analyzer pwr1 | |
|---|---|
| Hardware Vendor: | Yokogawa |
| Model: | WT310 |
| Serial Number: | C2QM22005V |
| Connectivity: | GPIB vi NI GPIB-USB-HS |
| Input Connection: | Default |
| Metrology Institute: | NIST |
| Accredited by: | TRANSCAT |
| Calibration Label: | 5-F91A5-20-1 |
| Date of Calibration: | 26-Jun-2021 |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| PTDaemon Version: | 1.9.2-3976349f-20201208 |
| Setup Description: | SUT Power Supply 1 |
| Temperature Sensor temp1 | |
|---|---|
| Hardware Vendor: | Digi International Inc. |
| Model: | Watchport/H |
| Driver Version: | 5.70.105.0 |
| Connectivity: | USB |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| Setup Description: | 5 mm in front of SUT main intake |
| Target Load | Voltage (V) | Current (A) | Avg Power Factor | Avg Active Power (W) | Power Measurement Uncertainty (%) | ||
|---|---|---|---|---|---|---|---|
| Avg | Range | Avg | Range | ||||
| Calibration 1 | 213 | 300.0 | 0.382 | 0.5 | 0.732 | 59.6 | 0.5% |
| Calibration 2 | 212 | 300.0 | 0.480 | 0.5 | 0.814 | 83.0 | 0.4% |
| Calibration 3 | 212 | 300.0 | 0.479 | 0.5 | 0.818 | 83.2 | 0.4% |
| 100% | 212 | 300.0 | 0.478 | 0.5 | 0.815 | 82.8 | 0.4% |
| 90% | 212 | 300.0 | 0.406 | 0.5 | 0.770 | 66.4 | 0.4% |
| 80% | 213 | 300.0 | 0.363 | 0.5 | 0.724 | 55.9 | 0.5% |
| 70% | 213 | 300.0 | 0.334 | 0.5 | 0.699 | 49.7 | 0.5% |
| 60% | 213 | 300.0 | 0.314 | 0.5 | 0.666 | 44.5 | 0.6% |
| 50% | 213 | 300.0 | 0.297 | 0.5 | 0.633 | 40.1 | 0.6% |
| 40% | 213 | 300.0 | 0.282 | 0.5 | 0.599 | 36.1 | 0.6% |
| 30% | 213 | 300.0 | 0.272 | 0.5 | 0.572 | 33.2 | 0.7% |
| 20% | 213 | 300.0 | 0.263 | 0.5 | 0.544 | 30.5 | 0.7% |
| 10% | 213 | 300.0 | 0.252 | 0.5 | 0.511 | 27.5 | 0.7% |
| Active Idle | 213 | 300.0 | 0.212 | 0.2 | 0.479 | 21.7 | 0.6% |
