SPECpower_ssj2008
Power/Temperature Details
Copyright © 2007-2022 Standard Performance Evaluation Corporation
| GIGA-BYTE TECHNOLOGY CO., LTD. R282-Z90 | SPECpower_ssj2008 = 18,692 overall ssj_ops/watt | ||||
| Test Sponsor: | GIGA-BYTE TECHNOLOGY CO., LTD. | SPEC License #: | 9082 | Test Method: | Single Node |
| Tested By: | GIGA-BYTE TECHNOLOGY CO., LTD. | Test Location: | XinTien ,Taipei | Test Date: | Feb 15, 2022 |
| Hardware Availability: | Mar-2022 | Software Availability: | Oct-2021 | Publication: | Mar 24, 2022 |
| System Source: | Single Supplier | System Designation: | Server | Power Provisioning: | Line-powered |

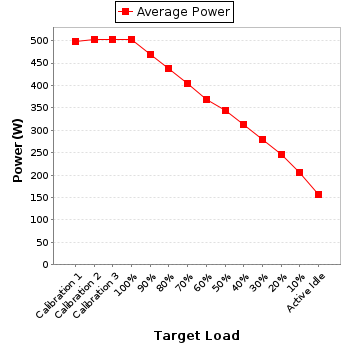

| Target Load | Average Active Power (W) | Minimum Ambient Temperature (°C) |
|---|---|---|
| Calibration 1 | 498 | 21.4 |
| Calibration 2 | 503 | 21.9 |
| Calibration 3 | 503 | 22.2 |
| 100% | 501 | 22.2 |
| 90% | 470 | 22.2 |
| 80% | 437 | 22.2 |
| 70% | 404 | 22.1 |
| 60% | 368 | 22.0 |
| 50% | 343 | 21.9 |
| 40% | 312 | 21.8 |
| 30% | 279 | 21.8 |
| 20% | 245 | 21.7 |
| 10% | 207 | 21.6 |
| Active Idle | 156 | 21.6 |
| Power Analyzer pwr1 | |
|---|---|
| Hardware Vendor: | Yokogawa |
| Model: | WT210 |
| Serial Number: | 91GC17356 |
| Connectivity: | RS-232 |
| Input Connection: | Default |
| Metrology Institute: | TAF |
| Accredited by: | Chroma ATE Inc. Calibration Lab |
| Calibration Label: | RE1100704984 |
| Date of Calibration: | 27-Jul-2021 |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| PTDaemon Version: | 1.9.2-3976349f-20201208 |
| Setup Description: | Connect to SUT PSU directly |
| Temperature Sensor temp1 | |
|---|---|
| Hardware Vendor: | TEMPERATURE@LERT |
| Model: | TM-STD30 |
| Driver Version: | 3.1.0.0 |
| Connectivity: | USB |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| Setup Description: | 10mm in front of SUT main airflow intake |
| Target Load | Voltage (V) | Current (A) | Avg Power Factor | Avg Active Power (W) | Power Measurement Uncertainty (%) | ||
|---|---|---|---|---|---|---|---|
| Avg | Range | Avg | Range | ||||
| Calibration 1 | 219 | 300.0 | 2.28 | 5.0 | 0.993 | 498 | 0.5% |
| Calibration 2 | 219 | 300.0 | 2.30 | 5.0 | 0.993 | 503 | 0.5% |
| Calibration 3 | 219 | 300.0 | 2.31 | 5.0 | 0.993 | 503 | 0.5% |
| 100% | 219 | 300.0 | 2.30 | 5.0 | 0.993 | 501 | 0.5% |
| 90% | 220 | 300.0 | 2.15 | 5.0 | 0.993 | 470 | 0.5% |
| 80% | 220 | 300.0 | 2.01 | 5.0 | 0.992 | 437 | 0.5% |
| 70% | 220 | 300.0 | 1.86 | 5.0 | 0.990 | 404 | 0.5% |
| 60% | 220 | 300.0 | 1.70 | 5.0 | 0.988 | 368 | 0.6% |
| 50% | 220 | 300.0 | 1.58 | 5.0 | 0.986 | 343 | 0.6% |
| 40% | 220 | 300.0 | 1.44 | 5.0 | 0.984 | 312 | 0.7% |
| 30% | 220 | 300.0 | 1.30 | 2.0 | 0.979 | 279 | 0.4% |
| 20% | 220 | 300.0 | 1.15 | 2.0 | 0.973 | 245 | 0.4% |
| 10% | 220 | 300.0 | 0.975 | 2.0 | 0.965 | 207 | 0.5% |
| Active Idle | 220 | 300.0 | 0.753 | 2.0 | 0.943 | 156 | 0.6% |
