SPECpower_ssj2008 Aggregate Performance Report

SPECpower_ssj2008

Aggregate Performance Report

Hewlett Packard Enterprise Synergy 480 Gen10 Plus Compute Module			ssj_ops@100% = 67,000,991 ssj_ops@100% per Host = 8,375,124 ssj_ops@100% per JVM = 104,689
Test Sponsor:	Hewlett Packard Enterprise	SPEC License #:	3	Test Method:	Multi Node
Tested By:	Hewlett Packard Enterprise	Test Location:	Houston, TX, USA	Test Date:	Jan 12, 2022
Hardware Availability:	Apr-2021	Software Availability:	Apr-2021	Publication:	Feb 16, 2022
System Source:	Single Supplier	System Designation:	Server	Power Provisioning:	Line-powered

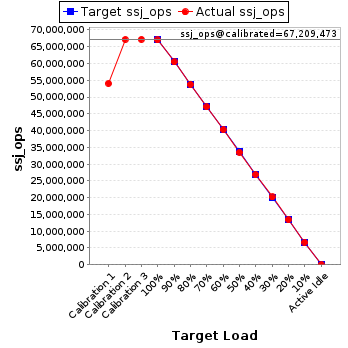

Benchmark Results Summary

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			54,076,889
Calibration 2			67,193,477
Calibration 3			67,225,470
ssj_ops@calibrated=67,209,473
100%	99.7%	67,209,473	67,000,991
90%	90.0%	60,488,526	60,470,483
80%	80.0%	53,767,579	53,779,225
70%	70.0%	47,046,631	47,065,783
60%	60.0%	40,325,684	40,305,837
50%	50.0%	33,604,737	33,578,702
40%	40.0%	26,883,789	26,874,765
30%	30.0%	20,162,842	20,181,169
20%	20.0%	13,441,895	13,435,980
10%	10.0%	6,720,947	6,719,581
Active Idle		0	0

Aggregate SUT Data

# of Nodes	# of Chips	# of Cores	# of Threads	Total RAM (GB)	# of OS Images	# of JVM Instances
8	16	640	1,280	2,048	8	640

System Under Test

Shared Hardware

Shared Hardware
Enclosure:	HPE Synergy 12000 Frame
Form Factor:	10U
Power Supply Quantity and Rating (W):	6 x 2650
Power Supply Details:	HPE 2650W Performance Hot Plug Titanium Plus Power Supply Kit (798095-B21)
Network Switch:	1 x H3C S5820X-28S (JD373A)
Network Switch Details:	10 Gb Fibre 24 ports
KVM Switch:	None
KVM Switch Details:	N/A
Other Hardware:	1 x HPE Synergy 10/40Gb Pass Thru Module (799330-B21), 1 x Synergy Composer (804353-B21), 1 x Synergy Frame Link Module (804942-B21)
Comment:	Network switch not measured for power

Set: 'SUT'

Set Identifier:	SUT
Set Description:	System Under Test
# of Identical Nodes:	8
Comment:	SUT

Hardware per Node
Hardware Vendor:	Hewlett Packard Enterprise
Model:	Synergy 480 Gen10 Plus Compute Module
Form Factor:	Blade
CPU Name:	Intel Xeon Platinum 8380 CPU @ 2.30GHz
CPU Characteristics:	40-Core, 2.30 GHz, 60MB L3 Cache
CPU Frequency (MHz):	2300
CPU(s) Enabled:	80 cores, 2 chips, 40 cores/chip
Hardware Threads:	160 (2 / core)
CPU(s) Orderable:	1,2 chips
Primary Cache:	32 KB I + 48 KB D on chip per core
Secondary Cache:	1280 KB I+D on chip per core
Tertiary Cache:	60 MB I+D on chip per chip
Other Cache:	None
Memory Amount (GB):	256
# and size of DIMM:	16 x 16384 MB
Memory Details:	16 x 16GB 2Rx8 PC4-3200-T; slots 1, 3, 5, 7, 10, 12, 14 & 16 on each socket
Power Supply Quantity and Rating (W):	None
Power Supply Details:	Shared
Disk Drive:	HPE 240GB SATA 6G Read Intensive SFF (P18420-B21)
Disk Controller:	Embedded SATA Controller
# and type of Network Interface Cards (NICs) Installed:	1 x HPE Synergy 4820C 10/20/25Gb CNA
NICs Enabled in Firmware / OS / Connected:	2/1/1
Network Speed (Mbit):	10000
Keyboard:	None
Mouse:	None
Monitor:	None
Optical Drives:	No
Other Hardware:	None

Software per Node
Power Management:	Enabled (see SUT Notes)
Operating System (OS):	SUSE Linux Enterprise Server 15 SP2
OS Version:	5.3.18-22-default
Filesystem:	xfs
JVM Vendor:	Oracle Corporation
JVM Version:	Oracle Java HotSpot(TM) 64-Bit Server VM 18.9 (build 11.0.11+9-LTS-194, mixed mode)
JVM Command-line Options:	-server -Xmn1700m -Xms1950m -Xmx1950m -XX:SurvivorRatio=1 -XX:TargetSurvivorRatio=99 -XX:ParallelGCThreads=2 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=4 -XX:LoopUnrollLimit=45 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:InlineSmallCode=3900 -XX:MaxInlineSize=270 -XX:FreqInlineSize=2500 -XX:+UseLargePages -XX:+UseParallelOldGC -XX:UseAVX=0 -XX:-UseAdaptiveSizePolicy -XX:-ThreadLocalHandshakes
JVM Affinity:	for each physicalCore { numactl -C physicalCoreId, physicalCoreId + 80 }
JVM Instances:	80
JVM Initial Heap (MB):	1950
JVM Maximum Heap (MB):	1950
JVM Address Bits:	64
Boot Firmware Version:	I44 v1.40 (03/05/2021)
Management Firmware Version:	2.40 pass 31 Jan 05 2021
Workload Version:	SSJ 1.2.10
Director Location:	Controller
Other Software:	None

Boot Firmware Settings

BIOS Platform Configuration (RBSU):

USB Support: All USB Ports Disabled
Internal SD Card Slot: Disabled
Memory Patrol Scrubbing: Disabled
Memory Bus Frequency: 2400 MHz
Intel Virtualization (Intel VT): Disabled
Access Control Service: Disabled
Power Regulator: OS Control
Intel Turbo Boost Technology: Disabled
Energy Performance Bias: Balanced Power
Intel DMI Link Frequency: Gen 1 Speed
NUMA Group Size Optimization: Clustered
Sub-NUMA Clustering: Enabled SNC2 (2-clusters)
HW Prefetcher: Disabled
Adjacent Sector Prefetch: Disabled
DCU Stream Prefetcher: Disabled
XPT Prefetcher: Disabled
Intel UPI Link Enablement: Single Link Operation
Intel UPI Link Frequency: Min UPI Speed
Processor PMAX Power Adjustment: 20
Maximum PCI Express Speed: PCIe Generation 1.0
Synergy 4820C PCIe Link Speed: PCIe Generation 1.0
Synergy 4820C PCIe Power Management: L1 Enabled

Management Firmware Settings

See SUT Notes

System Under Test Notes

Benchmark started via ssh
SPECpower_ssj.props input.load_level.number_warehouses set to 160 due to a known inconsistency in processor reporting with this Java version
Kernel Parameter: intel_pstate=passive
OS tunes:

modprobe cpufreq_conservative
cpupower frequency-set -g conservative
echo 3000000 > /sys/devices/system/cpu/cpufreq/conservative/sampling_rate
echo 94 > /sys/devices/system/cpu/cpufreq/conservative/up_threshold
echo 1 > /sys/devices/system/cpu/cpufreq/conservative/freq_step
echo 93 > /sys/devices/system/cpu/cpufreq/conservative/down_threshold
echo 960000 > /proc/sys/kernel/sched_rt_runtime_us
echo 16000000 > /proc/sys/kernel/sched_latency_ns
echo 9000000 > /proc/sys/kernel/sched_min_granularity_ns
echo 100000 > /proc/sys/vm/nr_hugepages

Applied protection against speculative execution

Yes: The test sponsor attests, as of date of publication, that CVE-2017-5754 (Meltdown) is mitigated in the system as tested and documented.
Yes: The test sponsor attests, as of date of publication, that CVE-2017-5753 (Spectre variant 1) is mitigated in the system as tested and documented.
Yes: The test sponsor attests, as of date of publication, that CVE-2017-5715 (Spectre variant 2) is mitigated in the system as tested and documented.

Notes

None

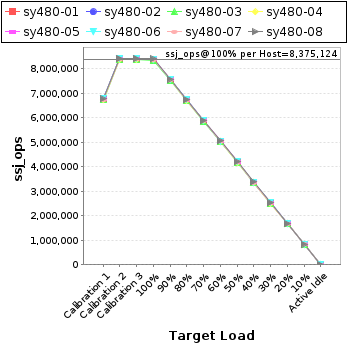

Host Instance Summary

Host	ssj_ops@100%
sy480-01	8,368,956
sy480-02	8,385,125
sy480-03	8,343,936
sy480-04	8,360,231
sy480-05	8,398,669
sy480-06	8,379,009
sy480-07	8,365,006
sy480-08	8,400,060
ssj_ops@100%	67,000,991
ssj_ops@100% per Host	8,375,124
ssj_ops@100% per JVM	104,689

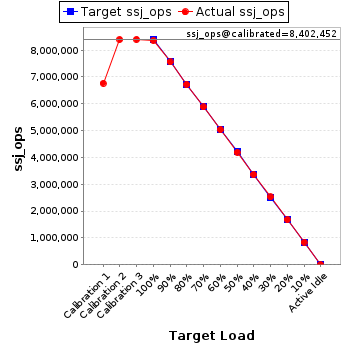

Host 'sy480-01' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			6,771,743
Calibration 2			8,399,629
Calibration 3			8,405,275
ssj_ops@calibrated=8,402,452
100%	99.6%	8,402,452	8,368,956
90%	90.0%	7,562,207	7,559,114
80%	80.1%	6,721,962	6,726,175
70%	70.0%	5,881,716	5,880,398
60%	60.0%	5,041,471	5,039,218
50%	50.0%	4,201,226	4,198,643
40%	40.0%	3,360,981	3,363,996
30%	30.0%	2,520,736	2,524,197
20%	20.0%	1,680,490	1,681,808
10%	10.0%	840,245	842,223
Active Idle		0	0

See the Host Performance Report for additional details.

Host 'sy480-02' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			6,786,854
Calibration 2			8,409,710
Calibration 3			8,415,873
ssj_ops@calibrated=8,412,791
100%	99.7%	8,412,791	8,385,125
90%	90.1%	7,571,512	7,580,331
80%	80.0%	6,730,233	6,733,849
70%	70.0%	5,888,954	5,891,235
60%	60.0%	5,047,675	5,045,859
50%	50.0%	4,206,396	4,203,713
40%	40.0%	3,365,116	3,361,981
30%	30.0%	2,523,837	2,526,758
20%	20.0%	1,682,558	1,682,469
10%	10.0%	841,279	839,280
Active Idle		0	0

See the Host Performance Report for additional details.

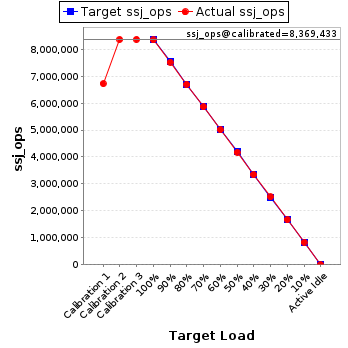

Host 'sy480-03' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			6,724,333
Calibration 2			8,367,623
Calibration 3			8,371,243
ssj_ops@calibrated=8,369,433
100%	99.7%	8,369,433	8,343,936
90%	89.9%	7,532,490	7,523,248
80%	80.1%	6,695,546	6,701,738
70%	70.1%	5,858,603	5,866,041
60%	59.9%	5,021,660	5,012,351
50%	50.0%	4,184,717	4,181,921
40%	40.0%	3,347,773	3,346,651
30%	30.1%	2,510,830	2,516,970
20%	20.0%	1,673,887	1,672,082
10%	10.0%	836,943	836,482
Active Idle		0	0

See the Host Performance Report for additional details.

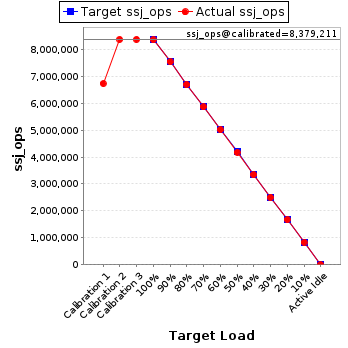

Host 'sy480-04' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			6,737,126
Calibration 2			8,378,737
Calibration 3			8,379,686
ssj_ops@calibrated=8,379,211
100%	99.8%	8,379,211	8,360,231
90%	90.0%	7,541,290	7,544,033
80%	80.0%	6,703,369	6,703,057
70%	70.0%	5,865,448	5,868,060
60%	59.9%	5,027,527	5,020,458
50%	49.9%	4,189,606	4,182,233
40%	39.9%	3,351,685	3,345,999
30%	30.0%	2,513,763	2,511,287
20%	20.0%	1,675,842	1,675,874
10%	10.0%	837,921	837,233
Active Idle		0	0

See the Host Performance Report for additional details.

Host 'sy480-05' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			6,774,919
Calibration 2			8,423,933
Calibration 3			8,428,886
ssj_ops@calibrated=8,426,410
100%	99.7%	8,426,410	8,398,669
90%	90.0%	7,583,769	7,579,794
80%	80.0%	6,741,128	6,737,410
70%	69.9%	5,898,487	5,893,849
60%	60.0%	5,055,846	5,054,816
50%	49.9%	4,213,205	4,204,786
40%	40.0%	3,370,564	3,368,962
30%	30.0%	2,527,923	2,531,291
20%	20.0%	1,685,282	1,683,524
10%	10.0%	842,641	840,759
Active Idle		0	0

See the Host Performance Report for additional details.

Host 'sy480-06' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			6,771,836
Calibration 2			8,401,189
Calibration 3			8,404,807
ssj_ops@calibrated=8,402,998
100%	99.7%	8,402,998	8,379,009
90%	89.9%	7,562,698	7,555,045
80%	80.1%	6,722,398	6,726,708
70%	70.2%	5,882,098	5,900,056
60%	60.0%	5,041,799	5,044,714
50%	50.0%	4,201,499	4,198,485
40%	39.9%	3,361,199	3,355,772
30%	30.1%	2,520,899	2,526,458
20%	20.0%	1,680,600	1,681,957
10%	10.0%	840,300	841,030
Active Idle		0	0

See the Host Performance Report for additional details.

Host 'sy480-07' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			6,738,118
Calibration 2			8,390,879
Calibration 3			8,393,826
ssj_ops@calibrated=8,392,353
100%	99.7%	8,392,353	8,365,006
90%	89.9%	7,553,117	7,547,196
80%	80.0%	6,713,882	6,711,086
70%	70.0%	5,874,647	5,871,788
60%	60.0%	5,035,412	5,031,630
50%	50.0%	4,196,176	4,200,080
40%	40.0%	3,356,941	3,354,138
30%	30.0%	2,517,706	2,516,568
20%	20.0%	1,678,471	1,676,127
10%	10.0%	839,235	841,860
Active Idle		0	0

See the Host Performance Report for additional details.

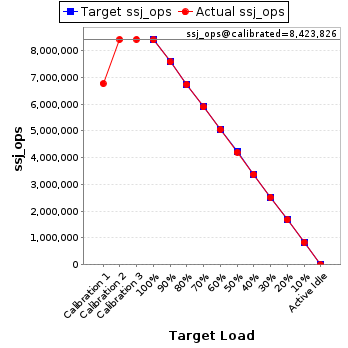

Host 'sy480-08' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			6,771,961
Calibration 2			8,421,778
Calibration 3			8,425,874
ssj_ops@calibrated=8,423,826
100%	99.7%	8,423,826	8,400,060
90%	90.0%	7,581,443	7,581,722
80%	80.0%	6,739,061	6,739,202
70%	70.0%	5,896,678	5,894,356
60%	60.0%	5,054,296	5,056,790
50%	50.0%	4,211,913	4,208,842
40%	40.1%	3,369,530	3,377,266
30%	30.0%	2,527,148	2,527,639
20%	20.0%	1,684,765	1,682,137
10%	10.0%	842,383	840,714
Active Idle		0	0

See the Host Performance Report for additional details.
