Hewlett Packard Enterprise Synergy 480 Gen10 Plus Compute Module SPECpower_ssj2008 = 11,470 overall ssj_ops/watt
Test Sponsor: Hewlett Packard Enterprise SPEC License #: 3 Test Method: Multi Node
Tested By: Hewlett Packard Enterprise Test Location: Houston, TX, USA Test Date: Jan 13, 2022
Hardware Availability: Apr-2021 Software Availability: Apr-2021 Publication: Feb 16, 2022
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Average Active Power (W) Minimum Ambient Temperature (°C)
Calibration 1 3,164 25.9
Calibration 2 4,006 26.0
Calibration 3 4,010 26.2
100% 4,005 26.1
90% 3,653 26.1
80% 2,792 26.0
70% 2,460 26.1
60% 2,165 26.3
50% 1,943 26.4
40% 1,757 26.3
30% 1,596 25.9
20% 1,429 25.9
10% 1,253 25.8
Active Idle 1,038 26.1

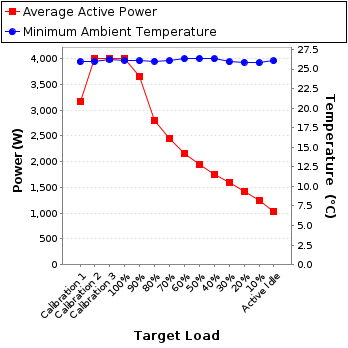

Graph of power and temperature
Measurement Devices
Power Analyzer pwr1
Hardware Vendor: Yokogawa
Model: WT210
Serial Number: 91GB47168
Connectivity: GPIB vi NI GPIB-USB-HS
Input Connection: Default
Metrology Institute: NIST
Accredited by: TRANSCAT
Calibration Label: 5-F673T-80-1
Date of Calibration: 14-May-2021
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
PTDaemon Version: 1.9.2-3976349f-20201208
Setup Description: SUT Power Supplies 1 and 2
Power Analyzer pwr2
Hardware Vendor: Yokogawa
Model: WT210
Serial Number: 91GB47169
Connectivity: GPIB vi NI GPIB-USB-HS
Input Connection: Default
Metrology Institute: NIST
Accredited by: TRANSCAT
Calibration Label: 5-F91A5-220-1
Date of Calibration: 26-Jun-2021
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
PTDaemon Version: 1.9.2-3976349f-20201208
Setup Description: SUT Power Supply 4
Power Analyzer pwr3
Hardware Vendor: Yokogawa
Model: WT210
Serial Number: 91K112854
Connectivity: GPIB vi NI GPIB-USB-HS
Input Connection: Default
Metrology Institute: NIST
Accredited by: TRANSCAT
Calibration Label: 5-F673T-40-1
Date of Calibration: 15-May-2021
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
PTDaemon Version: 1.9.2-3976349f-20201208
Setup Description: SUT Power Supply 6
Temperature Sensor temp1
Hardware Vendor: Digi International Inc.
Model: Watchport/H
Driver Version: 5.70.105.0
Connectivity: USB
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
Setup Description: 5 mm in front of SUT main intake
Notes
None
Power Details for Device pwr1
Target Load Voltage (V) Current (A) Avg Power Factor Avg Active Power (W) Power Measurement Uncertainty (%)
Avg Range Avg Range
Calibration 1 216 300.0 5.13 10.0 0.988 1,063 0.5%
Calibration 2 216 300.0 6.24 10.0 0.994 1,340 0.4%
Calibration 3 216 300.0 6.25 10.0 0.994 1,341 0.4%
100% 216 300.0 6.24 10.0 0.994 1,340 0.4%
90% 216 300.0 5.73 10.0 0.993 1,228 0.4%
80% 216 300.0 4.42 10.0 0.988 944 0.5%
70% 217 300.0 3.90 10.0 0.984 832 0.5%
60% 217 300.0 3.46 5.0 0.981 734 0.4%
50% 217 300.0 3.09 5.0 0.977 655 0.4%
40% 217 300.0 2.83 5.0 0.973 598 0.4%
30% 217 300.0 2.61 5.0 0.968 548 0.5%
20% 217 300.0 2.36 5.0 0.959 490 0.5%
10% 217 300.0 2.05 5.0 0.939 417 0.6%
Active Idle 217 300.0 1.69 2.0 0.910 332 0.4%
Power details for pwr1
Power Details for Device pwr2
Target Load Voltage (V) Current (A) Avg Power Factor Avg Active Power (W) Power Measurement Uncertainty (%)
Avg Range Avg Range
Calibration 1 213 300.0 5.12 10.0 0.970 1,027 0.5%
Calibration 2 213 300.0 6.25 10.0 0.984 1,309 0.4%
Calibration 3 213 300.0 6.25 10.0 0.984 1,310 0.4%
100% 213 300.0 6.24 10.0 0.984 1,308 0.4%
90% 213 300.0 5.68 10.0 0.981 1,186 0.4%
80% 214 300.0 4.35 5.0 0.968 900 0.4%
70% 214 300.0 3.85 5.0 0.960 789 0.4%
60% 214 300.0 3.39 5.0 0.952 689 0.4%
50% 214 300.0 3.06 5.0 0.944 617 0.5%
40% 214 300.0 2.75 5.0 0.934 549 0.5%
30% 214 300.0 2.49 5.0 0.924 492 0.5%
20% 214 300.0 2.20 2.0 0.902 424 0.4%
10% 214 300.0 1.97 2.0 0.885 373 0.4%
Active Idle 214 300.0 1.76 2.0 0.867 326 0.4%
Power details for pwr2
Power Details for Device pwr3
Target Load Voltage (V) Current (A) Avg Power Factor Avg Active Power (W) Power Measurement Uncertainty (%)
Avg Range Avg Range
Calibration 1 216 300.0 5.20 10.0 0.985 1,075 0.5%
Calibration 2 216 300.0 6.33 10.0 0.992 1,356 0.4%
Calibration 3 216 300.0 6.34 10.0 0.992 1,359 0.4%
100% 216 300.0 6.33 10.0 0.992 1,357 0.4%
90% 216 300.0 5.79 10.0 0.991 1,239 0.4%
80% 216 300.0 4.45 10.0 0.985 948 0.5%
70% 217 300.0 3.96 5.0 0.979 839 0.4%
60% 217 300.0 3.51 5.0 0.975 742 0.4%
50% 217 300.0 3.20 5.0 0.970 672 0.4%
40% 217 300.0 2.92 5.0 0.964 610 0.5%
30% 217 300.0 2.68 5.0 0.956 556 0.5%
20% 217 300.0 2.50 5.0 0.949 515 0.5%
10% 217 300.0 2.29 5.0 0.934 464 0.6%
Active Idle 217 300.0 1.94 2.0 0.903 379 0.4%
Power details for pwr3
