SPECpower_ssj2008 Aggregate Performance Report

SPECpower_ssj2008

Aggregate Performance Report

Hewlett Packard Enterprise Synergy 480 Gen10 Plus Compute Module			ssj_ops@100% = 41,895,333 ssj_ops@100% per Host = 8,379,067 ssj_ops@100% per JVM = 104,738
Test Sponsor:	Hewlett Packard Enterprise	SPEC License #:	3	Test Method:	Multi Node
Tested By:	Hewlett Packard Enterprise	Test Location:	Houston, TX, USA	Test Date:	Jan 14, 2022
Hardware Availability:	Apr-2021	Software Availability:	Apr-2021	Publication:	Feb 16, 2022
System Source:	Single Supplier	System Designation:	Server	Power Provisioning:	Line-powered

Benchmark Results Summary

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			33,828,423
Calibration 2			42,008,667
Calibration 3			42,032,915
ssj_ops@calibrated=42,020,791
100%	99.7%	42,020,791	41,895,333
90%	90.0%	37,818,712	37,813,127
80%	80.0%	33,616,633	33,616,554
70%	70.1%	29,414,554	29,440,788
60%	59.9%	25,212,475	25,186,750
50%	49.9%	21,010,396	20,984,520
40%	39.9%	16,808,316	16,785,725
30%	30.0%	12,606,237	12,610,987
20%	20.0%	8,404,158	8,403,092
10%	10.0%	4,202,079	4,201,071
Active Idle		0	0

Aggregate SUT Data

# of Nodes	# of Chips	# of Cores	# of Threads	Total RAM (GB)	# of OS Images	# of JVM Instances
5	10	400	800	1,280	5	400

System Under Test

Shared Hardware

Shared Hardware
Enclosure:	HPE Synergy 12000 Frame
Form Factor:	10U
Power Supply Quantity and Rating (W):	6 x 2650
Power Supply Details:	HPE 2650W Performance Hot Plug Titanium Plus Power Supply Kit (798095-B21)
Network Switch:	1 x H3C S5820X-28S (JD373A)
Network Switch Details:	10 Gb Fibre 24 ports
KVM Switch:	None
KVM Switch Details:	N/A
Other Hardware:	1 x HPE Synergy 10/40Gb Pass Thru Module (799330-B21), 1 x Synergy Composer (804353-B21), 1 x Synergy Frame Link Module (804942-B21)
Comment:	Network switch not measured for power

Set: 'SUT'

Set Identifier:	SUT
Set Description:	System Under Test
# of Identical Nodes:	5
Comment:	SUT

Hardware per Node
Hardware Vendor:	Hewlett Packard Enterprise
Model:	Synergy 480 Gen10 Plus Compute Module
Form Factor:	Blade
CPU Name:	Intel Xeon Platinum 8380 CPU @ 2.30GHz
CPU Characteristics:	40-Core, 2.30 GHz, 60MB L3 Cache
CPU Frequency (MHz):	2300
CPU(s) Enabled:	80 cores, 2 chips, 40 cores/chip
Hardware Threads:	160 (2 / core)
CPU(s) Orderable:	1,2 chips
Primary Cache:	32 KB I + 48 KB D on chip per core
Secondary Cache:	1280 KB I+D on chip per core
Tertiary Cache:	60 MB I+D on chip per chip
Other Cache:	None
Memory Amount (GB):	256
# and size of DIMM:	16 x 16384 MB
Memory Details:	16 x 16GB 2Rx8 PC4-3200-T; slots 1, 3, 5, 7, 10, 12, 14 & 16 on each socket
Power Supply Quantity and Rating (W):	None
Power Supply Details:	Shared
Disk Drive:	HPE 240GB SATA 6G Read Intensive SFF (P18420-B21)
Disk Controller:	Embedded SATA Controller
# and type of Network Interface Cards (NICs) Installed:	1 x HPE Synergy 4820C 10/20/25Gb CNA
NICs Enabled in Firmware / OS / Connected:	2/1/1
Network Speed (Mbit):	10000
Keyboard:	None
Mouse:	None
Monitor:	None
Optical Drives:	No
Other Hardware:	None

Software per Node
Power Management:	Enabled (see SUT Notes)
Operating System (OS):	SUSE Linux Enterprise Server 15 SP2
OS Version:	5.3.18-22-default
Filesystem:	xfs
JVM Vendor:	Oracle Corporation
JVM Version:	Oracle Java HotSpot(TM) 64-Bit Server VM 18.9 (build 11.0.11+9-LTS-194, mixed mode)
JVM Command-line Options:	-server -Xmn1700m -Xms1950m -Xmx1950m -XX:SurvivorRatio=1 -XX:TargetSurvivorRatio=99 -XX:ParallelGCThreads=2 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=4 -XX:LoopUnrollLimit=45 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:InlineSmallCode=3900 -XX:MaxInlineSize=270 -XX:FreqInlineSize=2500 -XX:+UseLargePages -XX:+UseParallelOldGC -XX:UseAVX=0 -XX:-UseAdaptiveSizePolicy -XX:-ThreadLocalHandshakes
JVM Affinity:	for each physicalCore { numactl -C physicalCoreId, physicalCoreId + 80 }
JVM Instances:	80
JVM Initial Heap (MB):	1950
JVM Maximum Heap (MB):	1950
JVM Address Bits:	64
Boot Firmware Version:	I44 v1.40 (03/05/2021)
Management Firmware Version:	2.40 pass 31 Jan 05 2021
Workload Version:	SSJ 1.2.10
Director Location:	Controller
Other Software:	None

Boot Firmware Settings

BIOS Platform Configuration (RBSU):

USB Support: All USB Ports Disabled
Internal SD Card Slot: Disabled
Memory Patrol Scrubbing: Disabled
Memory Bus Frequency: 2400 MHz
Intel Virtualization (Intel VT): Disabled
Access Control Service: Disabled
Power Regulator: OS Control
Intel Turbo Boost Technology: Disabled
Energy Performance Bias: Balanced Power
Intel DMI Link Frequency: Gen 1 Speed
NUMA Group Size Optimization: Clustered
Sub-NUMA Clustering: Enabled SNC2 (2-clusters)
HW Prefetcher: Disabled
Adjacent Sector Prefetch: Disabled
DCU Stream Prefetcher: Disabled
XPT Prefetcher: Disabled
Intel UPI Link Enablement: Single Link Operation
Intel UPI Link Frequency: Min UPI Speed
Processor PMAX Power Adjustment: 20
Maximum PCI Express Speed: PCIe Generation 1.0
Synergy 4820C PCIe Link Speed: PCIe Generation 1.0
Synergy 4820C PCIe Power Management: L1 Enabled

Management Firmware Settings

See SUT Notes

System Under Test Notes

Benchmark started via ssh
SPECpower_ssj.props input.load_level.number_warehouses set to 160 due to a known inconsistency in processor reporting with this Java version
Kernel Parameter: intel_pstate=passive
OS tunes:

modprobe cpufreq_conservative
cpupower frequency-set -g conservative
echo 3000000 > /sys/devices/system/cpu/cpufreq/conservative/sampling_rate
echo 94 > /sys/devices/system/cpu/cpufreq/conservative/up_threshold
echo 1 > /sys/devices/system/cpu/cpufreq/conservative/freq_step
echo 93 > /sys/devices/system/cpu/cpufreq/conservative/down_threshold
echo 960000 > /proc/sys/kernel/sched_rt_runtime_us
echo 16000000 > /proc/sys/kernel/sched_latency_ns
echo 9000000 > /proc/sys/kernel/sched_min_granularity_ns
echo 100000 > /proc/sys/vm/nr_hugepages

Applied protection against speculative execution

Yes: The test sponsor attests, as of date of publication, that CVE-2017-5754 (Meltdown) is mitigated in the system as tested and documented.
Yes: The test sponsor attests, as of date of publication, that CVE-2017-5753 (Spectre variant 1) is mitigated in the system as tested and documented.
Yes: The test sponsor attests, as of date of publication, that CVE-2017-5715 (Spectre variant 2) is mitigated in the system as tested and documented.

Notes

None

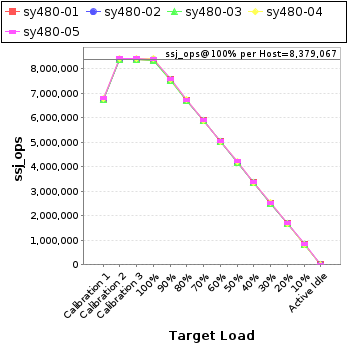

Host Instance Summary

Host	ssj_ops@100%
sy480-01	8,359,497
sy480-02	8,368,877
sy480-03	8,360,821
sy480-04	8,404,089
sy480-05	8,402,049
ssj_ops@100%	41,895,333
ssj_ops@100% per Host	8,379,067
ssj_ops@100% per JVM	104,738

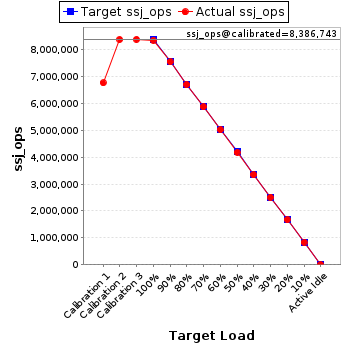

Host 'sy480-01' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			6,764,379
Calibration 2			8,384,445
Calibration 3			8,389,041
ssj_ops@calibrated=8,386,743
100%	99.7%	8,386,743	8,359,497
90%	90.1%	7,548,069	7,553,570
80%	80.0%	6,709,394	6,708,704
70%	70.1%	5,870,720	5,878,431
60%	59.9%	5,032,046	5,025,661
50%	49.9%	4,193,371	4,186,794
40%	39.9%	3,354,697	3,346,554
30%	30.0%	2,516,023	2,515,027
20%	20.0%	1,677,349	1,674,737
10%	10.0%	838,674	837,971
Active Idle		0	0

See the Host Performance Report for additional details.

Host 'sy480-02' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			6,739,481
Calibration 2			8,386,096
Calibration 3			8,390,612
ssj_ops@calibrated=8,388,354
100%	99.8%	8,388,354	8,368,877
90%	90.0%	7,549,518	7,546,607
80%	80.0%	6,710,683	6,712,628
70%	70.1%	5,871,848	5,877,230
60%	60.0%	5,033,012	5,030,140
50%	49.9%	4,194,177	4,189,670
40%	40.0%	3,355,342	3,353,837
30%	30.0%	2,516,506	2,516,857
20%	20.0%	1,677,671	1,677,598
10%	10.0%	838,835	837,675
Active Idle		0	0

See the Host Performance Report for additional details.

Host 'sy480-03' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			6,745,754
Calibration 2			8,388,822
Calibration 3			8,392,746
ssj_ops@calibrated=8,390,784
100%	99.6%	8,390,784	8,360,821
90%	89.9%	7,551,706	7,544,123
80%	79.9%	6,712,627	6,705,196
70%	70.1%	5,873,549	5,880,021
60%	60.0%	5,034,470	5,030,680
50%	49.9%	4,195,392	4,184,604
40%	40.0%	3,356,314	3,353,027
30%	30.0%	2,517,235	2,515,765
20%	20.0%	1,678,157	1,677,205
10%	10.0%	839,078	838,837
Active Idle		0	0

See the Host Performance Report for additional details.

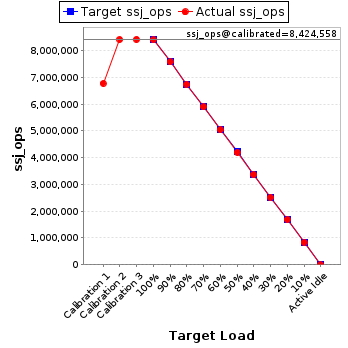

Host 'sy480-04' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			6,782,434
Calibration 2			8,421,453
Calibration 3			8,427,664
ssj_ops@calibrated=8,424,558
100%	99.8%	8,424,558	8,404,089
90%	90.0%	7,582,102	7,582,952
80%	80.1%	6,739,647	6,748,294
70%	70.1%	5,897,191	5,901,453
60%	59.9%	5,054,735	5,048,430
50%	49.9%	4,212,279	4,204,783
40%	40.0%	3,369,823	3,368,206
30%	30.0%	2,527,367	2,528,023
20%	20.0%	1,684,912	1,688,226
10%	10.0%	842,456	840,677
Active Idle		0	0

See the Host Performance Report for additional details.

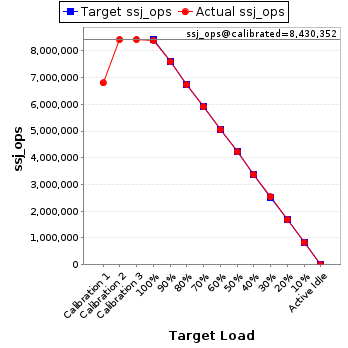

Host 'sy480-05' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			6,796,375
Calibration 2			8,427,852
Calibration 3			8,432,853
ssj_ops@calibrated=8,430,352
100%	99.7%	8,430,352	8,402,049
90%	90.0%	7,587,317	7,585,874
80%	80.0%	6,744,282	6,741,732
70%	70.0%	5,901,247	5,903,653
60%	59.9%	5,058,211	5,051,839
50%	50.0%	4,215,176	4,218,668
40%	39.9%	3,372,141	3,364,100
30%	30.1%	2,529,106	2,535,315
20%	20.0%	1,686,070	1,685,326
10%	10.0%	843,035	845,911
Active Idle		0	0

See the Host Performance Report for additional details.
