Fujitsu FUJITSU Server PRIMERGY TX1330 M5 SPECpower_ssj2008 = 10,857 overall ssj_ops/watt
Test Sponsor: Fujitsu SPEC License #: 19 Test Method: Single Node
Tested By: Fujitsu Test Location: Kawasaki, Kanagawa, Japan Test Date: Dec 16, 2021
Hardware Availability: Mar-2022 Software Availability: Jun-2021 Publication: Jan 19, 2022
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Performance Power Performance to Power Ratio
Target Load Actual Load ssj_ops Average Active Power (W)
100% 99.5% 829,272 73.6 11,272
90% 90.0% 749,606 59.1 12,686
80% 79.7% 663,603 49.7 13,356
70% 69.9% 582,017 43.8 13,285
60% 59.9% 498,986 39.0 12,787
50% 50.0% 416,552 34.7 12,014
40% 40.2% 334,849 30.5 10,984
30% 30.1% 251,087 27.2 9,215
20% 20.1% 167,056 24.4 6,836
10% 10.1% 83,722 21.6 3,884
Active Idle 0 18.0 0
∑ssj_ops / ∑power = 10,857

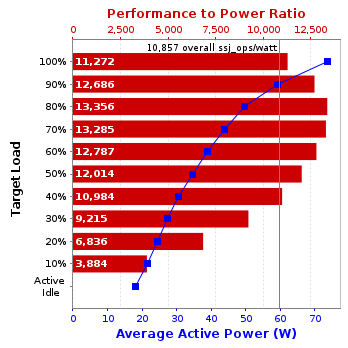

Graph of results
System Under Test
Set: 'TX1330M5'
Set Identifier: TX1330M5
Set Description: System Under Test
# of Identical Nodes: 1
Comment: Single Node
Hardware
Hardware Vendor: Fujitsu
Model: FUJITSU Server PRIMERGY TX1330 M5
Form Factor: Tower
CPU Name: Intel Xeon E-2388G (Intel Turbo Boost Technology up to 5.1GHz)
CPU Characteristics: 8-Core, 3.2GHz, 16MB L3 Cache
CPU Frequency (MHz): 3200
CPU(s) Enabled: 8 cores, 1 chip, 8 cores/chip
Hardware Threads: 16 (2 / core)
CPU(s) Orderable: 1 chips
Primary Cache: 32 KB I + 48 KB D on chip per core
Secondary Cache: 512 KB I+D on chip per core
Tertiary Cache: 16 MB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 16
# and size of DIMM: 2 x 8196 MB
Memory Details: 2 x 8 GB 1Rx8 PC4-3200AA-ED2-11; slots 1A, 1B populated
Power Supply Quantity and Rating (W): 1 x 300
Power Supply Details: S26113-E581-V50-1
Disk Drive: 1 x SSD M.2 240GB, S26361-F5787-E240
Disk Controller: Integrated SATA Controller
# and type of Network Interface Cards (NICs) Installed: 2 x Intel I210 Gigabit Network Connection (onboard)
NICs Enabled in Firmware / OS / Connected: 2/2/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Enabled (see SUT Notes)
Operating System (OS): SUSE Linux Enterprise Server 15 SP3
OS Version: 5.3.18-57-default
Filesystem: btrfs
JVM Vendor: Oracle Corporation
JVM Version: Oracle Java HotSpot(TM) 64-Bit Server VM 18.9 (build 11.0.9+7-LTS, mixed mode)
JVM Command-line Options: -server -Xmn11500m -Xms13000m -Xmx13000m -XX:+UseHugeTLBFS -XX:+UseLargePages -XX:+UseTransparentHugePages -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchInstr=0 -XX:AllocatePrefetchLines=4 -XX:InlineSmallCode=3900 -XX:MaxInlineSize=270 -XX:ParallelGCThreads=8 -XX:SurvivorRatio=1 -XX:TargetSurvivorRatio=99 -XX:+UseParallelOldGC -XX:FreqInlineSize=2500 -XX:MinJumpTableSize=18 -XX:UseAVX=0 -XX:+UseBiasedLocking -XX:-ThreadLocalHandshakes
JVM Affinity: chrt -r 1 taskset -c 0,1,2,3,4,5,6,7,8,9,10,11,12,13,14,15 numactl --membind=0
JVM Instances: 1
JVM Initial Heap (MB): 13000
JVM Maximum Heap (MB): 13000
JVM Address Bits: 64
Boot Firmware Version: R1.30.0
Management Firmware Version: 1.01S
Workload Version: SSJ 1.2.10
Director Location: Controller
Other Software: None
Boot Firmware Settings
Management Firmware Settings
None
System Under Test Notes
Controller System
Hardware
Hardware Vendor: Fujitsu
Model: PRIMERGY RX2530 M2
CPU Description: Intel Xeon E5-2643 v4
Memory amount (GB): 64
Software
Operating System (OS): Microsoft Windows Server 2012 R2 Standard
JVM Vendor: Oracle Corporation
JVM Version: Oracle Java HotSpot(TM) 64-Bit Server VM (build 25.211-b12, mixed mode), version 1.8.0_211
CCS Version: 1.2.6
Measurement Devices
Power Analyzer pwr1
Hardware Vendor: Hioki
Model: PW3336
Serial Number: 170134584
Connectivity: RS-232
Input Connection: Default
Metrology Institute: NICT (National Institute of Information and Communications Technology)
Accredited by: HIOKI E.E. CORPORATION
Calibration Label: H06400087-2103
Date of Calibration: 08-Mar-2021
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
PTDaemon Version: 1.9.2-3976349f-20201208
Setup Description: Connected to PSU 1
Temperature Sensor temp1
Hardware Vendor: Digi International Inc.
Model: Watchport/H
Driver Version: Watchport Virtual Port 5.70.105.0
Connectivity: USB
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
Setup Description: 5 mm in front of SUT main air intake
Notes
Aggregate Electrical and Environmental Data
Target Load Average Active Power (W) Minimum Ambient Temperature (°C)
100% 73.6 23.0
90% 59.1 23.0
80% 49.7 23.0
70% 43.8 22.9
60% 39.0 22.9
50% 34.7 22.9
40% 30.5 22.9
30% 27.2 22.9
20% 24.4 22.9
10% 21.6 22.8
Active Idle 18.0 22.8
Line Standard Minimum Temperature (°C) Elevation (m)
200V / 50 Hz / 1 phase / 2 wires 22.8 11
See the Power/Temperature Details Report for additional details.
Aggregate Performance Data
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     645,928
Calibration 2     834,170
Calibration 3     831,919
ssj_ops@calibrated=833,045
100% 99.5% 833,045 829,272
90% 90.0% 749,740 749,606
80% 79.7% 666,436 663,603
70% 69.9% 583,131 582,017
60% 59.9% 499,827 498,986
50% 50.0% 416,522 416,552
40% 40.2% 333,218 334,849
30% 30.1% 249,913 251,087
20% 20.1% 166,609 167,056
10% 10.1% 83,304 83,722
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
