SPECpower_ssj2008 JVM Instance 'WIN-CER5JCBHD39.001' Performance Report

SPECpower_ssj2008

JVM Instance 'WIN-CER5JCBHD39.001' Performance Report

Fujitsu FUJITSU Server PRIMERGY TX1310 M5 (D3931-C100)			ssj_ops@100% = 668,541
Test Sponsor:	Fujitsu	SPEC License #:	19	Test Method:	Single Node
Tested By:	Fujitsu	Test Location:	Kawasaki, Kanagawa, Japan	Test Date:	Dec 18, 2021
Hardware Availability:	Mar-2022	Software Availability:	Oct-2020	Publication:	Jan 19, 2022
System Source:	Single Supplier	System Designation:	Server	Power Provisioning:	Line-powered

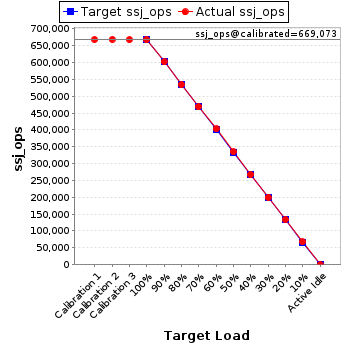

Benchmark Results Summary

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			669,059
Calibration 2			669,479
Calibration 3			668,667
ssj_ops@calibrated=669,073
100%	99.9%	669,073	668,541
90%	90.0%	602,166	602,490
80%	80.0%	535,259	535,035
70%	70.2%	468,351	469,444
60%	60.4%	401,444	403,864
50%	50.1%	334,537	335,373
40%	40.1%	267,629	268,132
30%	29.9%	200,722	200,214
20%	20.1%	133,815	134,634
10%	10.1%	66,907	67,717
Active Idle		0	0

System Under Test

Set: 'TX1310M5'

Set Identifier:	TX1310M5
Set Description:	System Under Test
# of Identical Nodes:	1
Comment:	Single Node

Hardware
Hardware Vendor:	Fujitsu
Model:	FUJITSU Server PRIMERGY TX1310 M5 (D3931-C100)
Form Factor:	Tower
CPU Name:	Intel Xeon E-2356G
CPU Characteristics:	6-Core, 3.2GHz, 12MB L3 Cache
CPU Frequency (MHz):	3200
CPU(s) Enabled:	6 cores, 1 chip, 6 cores/chip
Hardware Threads:	12 (2 / core)
CPU(s) Orderable:	1 chips
Primary Cache:	32 KB I + 48 KB D on chip per core
Secondary Cache:	512 KB I+D on chip per core
Tertiary Cache:	12 MB I+D on chip per chip
Other Cache:	None
Memory Amount (GB):	16
# and size of DIMM:	2 x 8196 MB
Memory Details:	2 x 8 GB 1Rx8 PC4-3200AA-ED2-11; slots 1A, 1B populated
Power Supply Quantity and Rating (W):	1 x 250
Power Supply Details:	S26113-E591-V70-2
Disk Drive:	1 x SSD M.2 240GB, S26361-F5787-E240
Disk Controller:	Integrated SATA Controller
# and type of Network Interface Cards (NICs) Installed:	2 x Intel I210 Gigabit Network Connection (onboard)
NICs Enabled in Firmware / OS / Connected:	2/2/1
Network Speed (Mbit):	1000
Keyboard:	None
Mouse:	None
Monitor:	None
Optical Drives:	No
Other Hardware:	None

Software
Power Management:	Balanced
Operating System (OS):	Windows Server 2019 Standard
OS Version:	version1809, build 17763.107
Filesystem:	ntfs
JVM Vendor:	Oracle Corporation
JVM Version:	Oracle Java HotSpot(TM) 64-Bit Server VM 18.9 (build 11.0.9+7-LTS, mixed mode)
JVM Command-line Options:	-server -Xmn10500m -Xms12000m -Xmx12000m -XX:SurvivorRatio=1 -XX:TargetSurvivorRatio=99 -XX:ParallelGCThreads=2 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=4 -XX:LoopUnrollLimit=45 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:InlineSmallCode=3900 -XX:MaxInlineSize=270 -XX:FreqInlineSize=2500 -XX:+UseLargePages -XX:+UseParallelOldGC -XX:UseAVX=0 -XX:-UseAdaptiveSizePolicy -XX:-ThreadLocalHandshakes
JVM Affinity:	none
JVM Instances:	1
JVM Initial Heap (MB):	12000
JVM Maximum Heap (MB):	12000
JVM Address Bits:	64
Boot Firmware Version:	R1.30.0
Management Firmware Version:	1.01S
Workload Version:	SSJ 1.2.10
Director Location:	Controller
Other Software:	KB4464455

Boot Firmware Settings

"ASPM Support = Auto"
"Hardware Prefetcher = Disabled"
"Adjacent Cache Line Prefetch = Disabled"
"Intel Virtualization Technology = Disabled"
"Software Guard Extensions (SGX) = Software Controlled"
"DMI Max Link Speed = Gen1"
"Turbo Mode = Disabled"
"DDR Speed Control = Auto"
"DMI Gen3 ASPM = Auto"
"DMI Link ASPM Control = Auto"
"SATA Controller Port0/1/2/3/4/6 = Disabled"
"Serial Port = Disabled"
"LAN2 Controller = Disabled"

Management Firmware Settings

None

System Under Test Notes

Set "Turn off hard disk after = 1 Minute" in OS.
Set "Turn off display after = 1 Minute" in OS.
Set "Minimum processor state = 0%" in OS.
Set "Maximum processor state = 100%" in OS.
Using the local security settings console, "lock pages in memory" was enabled for the user running the benchmark.
Benchmark was started via Windows Remote Desktop Connection.
<Yes> The test sponsor attests, as of date of publication, that CVE-2017-5754 (Meltdown) is mitigated in the system as tested and documented.
<Yes> The test sponsor attests, as of date of publication, that CVE-2017-5753 (Spectre variant 1) is mitigated in the system as tested and documented.
<Yes> The test sponsor attests, as of date of publication, that CVE-2017-5715 (Spectre variant 2) is mitigated in the system as tested and documented.

Notes

SPECpower_ssj.props input.load_level.number_warehouses set to 12.

Performance Details

Target Load	Actual Load	Transaction Type	Count	Total Heap (MB)
Calibration 1		New Order	48,745,428	8,500
		Payment	48,745,422
		Order Status	4,874,544
		Delivery	4,874,539
		Stock Level	4,874,542
		Customer Report	48,745,430
Calibration 2		New Order	48,757,179	8,500
		Payment	48,757,192
		Order Status	4,875,720
		Delivery	4,875,721
		Stock Level	4,875,717
		Customer Report	48,757,180
Calibration 3		New Order	48,650,573	8,500
		Payment	48,650,567
		Order Status	4,865,054
		Delivery	4,865,055
		Stock Level	4,865,061
		Customer Report	48,650,582
100%	99.9%	New Order	48,650,894	8,500
		Payment	48,650,880
		Order Status	4,865,088
		Delivery	4,865,089
		Stock Level	4,865,089
		Customer Report	48,650,889
90%	90.0%	New Order	43,817,702	8,500
		Payment	43,817,695
		Order Status	4,381,774
		Delivery	4,381,771
		Stock Level	4,381,771
		Customer Report	43,817,690
80%	80.0%	New Order	38,914,189	8,500
		Payment	38,914,188
		Order Status	3,891,417
		Delivery	3,891,423
		Stock Level	3,891,419
		Customer Report	38,914,190
70%	70.2%	New Order	34,141,702	8,500
		Payment	34,141,715
		Order Status	3,414,170
		Delivery	3,414,169
		Stock Level	3,414,171
		Customer Report	34,141,698
60%	60.4%	New Order	29,373,565	8,500
		Payment	29,373,561
		Order Status	2,937,360
		Delivery	2,937,359
		Stock Level	2,937,354
		Customer Report	29,373,552
50%	50.1%	New Order	24,391,118	8,500
		Payment	24,391,106
		Order Status	2,439,110
		Delivery	2,439,114
		Stock Level	2,439,111
		Customer Report	24,391,128
40%	40.1%	New Order	19,501,249	8,500
		Payment	19,501,246
		Order Status	1,950,125
		Delivery	1,950,125
		Stock Level	1,950,123
		Customer Report	19,501,249
30%	29.9%	New Order	14,561,606	8,500
		Payment	14,561,603
		Order Status	1,456,164
		Delivery	1,456,161
		Stock Level	1,456,156
		Customer Report	14,561,607
20%	20.1%	New Order	9,792,020	8,500
		Payment	9,792,008
		Order Status	979,204
		Delivery	979,205
		Stock Level	979,201
		Customer Report	9,792,001
10%	10.1%	New Order	4,925,122	8,500
		Payment	4,925,110
		Order Status	492,509
		Delivery	492,511
		Stock Level	492,511
		Customer Report	4,925,092
Active Idle		New Order	0	8,500
		Payment	0
		Order Status	0
		Delivery	0
		Stock Level	0
		Customer Report	0
