SPECpower_ssj2008

Fujitsu FUJITSU Server PRIMERGY TX1310 M5 (D3931-C100)			SPECpower_ssj2008 = 9,993 overall ssj_ops/watt
Test Sponsor:	Fujitsu	SPEC License #:	19	Test Method:	Single Node
Tested By:	Fujitsu	Test Location:	Kawasaki, Kanagawa, Japan	Test Date:	Dec 18, 2021
Hardware Availability:	Mar-2022	Software Availability:	Jun-2021	Publication:	Jan 19, 2022
System Source:	Single Supplier	System Designation:	Server	Power Provisioning:	Line-powered

Hardware
Hardware Vendor:	Fujitsu
Model:	FUJITSU Server PRIMERGY TX1310 M5 (D3931-C100)
Form Factor:	Tower
CPU Name:	Intel Xeon E-2356G (Intel Turbo Boost Technology up to 5.0GHz)
CPU Characteristics:	6-Core, 3.2GHz, 12MB L3 Cache
CPU Frequency (MHz):	3200
CPU(s) Enabled:	6 cores, 1 chip, 6 cores/chip
Hardware Threads:	12 (2 / core)
CPU(s) Orderable:	1 chips
Primary Cache:	32 KB I + 48 KB D on chip per core
Secondary Cache:	512 KB I+D on chip per core
Tertiary Cache:	12 MB I+D on chip per chip
Other Cache:	None
Memory Amount (GB):	16
# and size of DIMM:	2 x 8196 MB
Memory Details:	2 x 8 GB 1Rx8 PC4-3200AA-ED2-11; slots 1A, 1B populated
Power Supply Quantity and Rating (W):	1 x 250
Power Supply Details:	S26113-E591-V70-2
Disk Drive:	1 x SSD M.2 240GB, S26361-F5787-E240
Disk Controller:	Integrated SATA Controller
# and type of Network Interface Cards (NICs) Installed:	2 x Intel I210 Gigabit Network Connection (onboard)
NICs Enabled in Firmware / OS / Connected:	2/2/1
Network Speed (Mbit):	1000
Keyboard:	None
Mouse:	None
Monitor:	None
Optical Drives:	No
Other Hardware:	None

Software
Power Management:	Enabled (see SUT Notes)
Operating System (OS):	SUSE Linux Enterprise Server 15 SP3
OS Version:	5.3.18-57-default
Filesystem:	btrfs
JVM Vendor:	Oracle Corporation
JVM Version:	Oracle Java HotSpot(TM) 64-Bit Server VM 18.9 (build 11.0.9+7-LTS, mixed mode)
JVM Command-line Options:	-server -Xmn10500m -Xms12000m -Xmx12000m -XX:+UseHugeTLBFS -XX:+UseLargePages -XX:+UseTransparentHugePages -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchInstr=0 -XX:AllocatePrefetchLines=4 -XX:InlineSmallCode=3900 -XX:MaxInlineSize=270 -XX:ParallelGCThreads=8 -XX:SurvivorRatio=1 -XX:TargetSurvivorRatio=99 -XX:+UseParallelOldGC -XX:FreqInlineSize=2500 -XX:MinJumpTableSize=18 -XX:UseAVX=0 -XX:+UseBiasedLocking -XX:-ThreadLocalHandshakes
JVM Affinity:	chrt -r 1 taskset -c 0,1,2,3,4,5,6,7,8,9,10,11 numactl --membind=0
JVM Instances:	1
JVM Initial Heap (MB):	12000
JVM Maximum Heap (MB):	12000
JVM Address Bits:	64
Boot Firmware Version:	R1.30.0
Management Firmware Version:	1.01S
Workload Version:	SSJ 1.2.10
Director Location:	Controller
Other Software:	None

None

kernel parameter: pcie_aspm=force pcie_aspm.policy=powersave intel_pstate=passive
Benchmark started via ssh.
modprobe cpufreq_conservative
cpupower frequency-set -g conservative
echo 3000000 > /sys/devices/system/cpu/cpufreq/conservative/sampling_rate
echo 92 > /sys/devices/system/cpu/cpufreq/conservative/up_threshold
echo 1 > /sys/devices/system/cpu/cpufreq/conservative/freq_step
echo 91 > /sys/devices/system/cpu/cpufreq/conservative/down_threshold
echo always > /sys/kernel/mm/transparent_hugepage/enabled
cpupower frequency-set -u 3200MHz
sysctl -w kernel.nmi_watchdog=0
echo 0000:00:14.0 > /sys/bus/pci/drivers/xhci_hcd/unbind
<Yes> The test sponsor attests, as of date of publication, that CVE-2017-5754 (Meltdown) is mitigated in the system as tested and documented.
<Yes> The test sponsor attests, as of date of publication, that CVE-2017-5753 (Spectre variant 1) is mitigated in the system as tested and documented.
<Yes> The test sponsor attests, as of date of publication, that CVE-2017-5715 (Spectre variant 2) is mitigated in the system as tested and documented.

Software
Operating System (OS):	Microsoft Windows Server 2012 R2 Standard
JVM Vendor:	Oracle Corporation
JVM Version:	Oracle Java HotSpot(TM) 64-Bit Server VM (build 25.211-b12, mixed mode), version 1.8.0_211
CCS Version:	1.2.6

Power Analyzer pwr1
Hardware Vendor:	Hioki
Model:	PW3336
Serial Number:	170134584
Connectivity:	RS-232
Input Connection:	Default
Metrology Institute:	NICT (National Institute of Information and Communications Technology)
Accredited by:	HIOKI E.E. CORPORATION
Calibration Label:	H06400087-2103
Date of Calibration:	08-Mar-2021
PTDaemon Host System:	same as CCS
PTDaemon Host OS:	same as CCS
PTDaemon Version:	1.9.2-3976349f-20201208
Setup Description:	Connected to PSU 1

Temperature Sensor temp1
Hardware Vendor:	Digi International Inc.
Model:	Watchport/H
Driver Version:	Watchport Virtual Port 5.70.105.0
Connectivity:	USB
PTDaemon Host System:	same as CCS
PTDaemon Host OS:	same as CCS
Setup Description:	5 mm in front of SUT main air intake

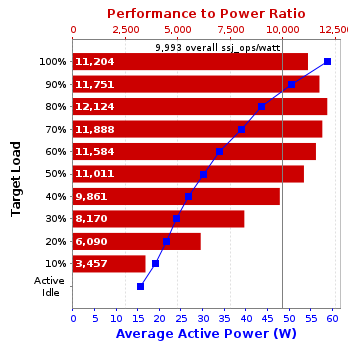

Target Load	Average Active Power (W)	Minimum Ambient Temperature (°C)
100%	58.9	28.1
90%	50.7	28.2
80%	43.7	29.4
70%	39.0	28.1
60%	34.0	29.1
50%	30.2	28.1
40%	26.8	27.7
30%	24.0	29.2
20%	21.6	28.5
10%	19.0	27.4
Active Idle	15.6	26.8

Line Standard	Minimum Temperature (°C)	Elevation (m)
200V / 50 Hz / 1 phase / 2 wires	26.8	11

See the Power/Temperature Details Report for additional details.

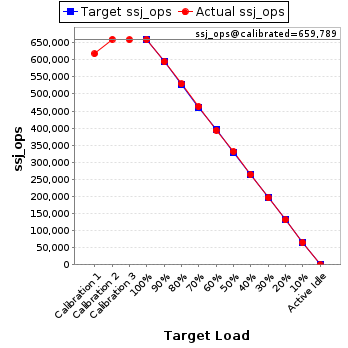

See the JVM Instance Performance Report for additional details.

SPECpower_ssj2008 Reporter Version: [SSJ 1.2.10, May 9, 2012]
