SPECpower_ssj2008
Power/Temperature Details
Copyright © 2007-2021 Standard Performance Evaluation Corporation
| Fujitsu FUJITSU Server PRIMERGY TX1310 M5 (D3930-A100) | SPECpower_ssj2008 = 9,596 overall ssj_ops/watt | ||||
| Test Sponsor: | Fujitsu | SPEC License #: | 19 | Test Method: | Single Node |
| Tested By: | Fujitsu | Test Location: | Kawasaki, Kanagawa, Japan | Test Date: | Oct 12, 2021 |
| Hardware Availability: | Nov-2021 | Software Availability: | Oct-2020 | Publication: | Oct 28, 2021 |
| System Source: | Single Supplier | System Designation: | Server | Power Provisioning: | Line-powered |

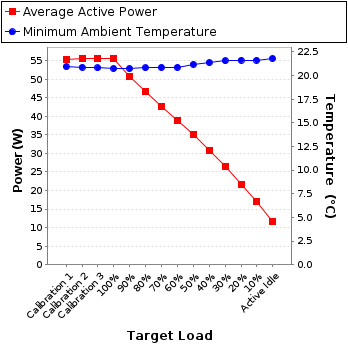

| Target Load | Average Active Power (W) | Minimum Ambient Temperature (°C) |
|---|---|---|
| Calibration 1 | 55.3 | 20.9 |
| Calibration 2 | 55.6 | 20.9 |
| Calibration 3 | 55.6 | 20.8 |
| 100% | 55.5 | 20.8 |
| 90% | 50.7 | 20.8 |
| 80% | 46.7 | 20.8 |
| 70% | 42.6 | 20.9 |
| 60% | 38.8 | 20.9 |
| 50% | 35.1 | 21.2 |
| 40% | 30.8 | 21.4 |
| 30% | 26.4 | 21.6 |
| 20% | 21.7 | 21.6 |
| 10% | 16.9 | 21.6 |
| Active Idle | 11.7 | 21.8 |
| Power Analyzer pwr1 | |
|---|---|
| Hardware Vendor: | Hioki |
| Model: | PW3336 |
| Serial Number: | 170134584 |
| Connectivity: | RS-232 |
| Input Connection: | Default |
| Metrology Institute: | NICT (National Institute of Information and Communications Technology) |
| Accredited by: | HIOKI E.E. CORPORATION |
| Calibration Label: | H06400087-2103 |
| Date of Calibration: | 08-Mar-2021 |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| PTDaemon Version: | 1.9.2-3976349f-20201208 |
| Setup Description: | Connected to PSU 1 |
| Temperature Sensor temp1 | |
|---|---|
| Hardware Vendor: | Digi International Inc. |
| Model: | Watchport/H |
| Driver Version: | Watchport Virtual Port 5.70.105.0 |
| Connectivity: | USB |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| Setup Description: | 5 mm in front of SUT main air intake |
| Target Load | Voltage (V) | Current (A) | Avg Power Factor | Avg Active Power (W) | Power Measurement Uncertainty (%) | ||
|---|---|---|---|---|---|---|---|
| Avg | Range | Avg | Range | ||||
| Calibration 1 | 206 | 300.0 | 0.318 | 1.0 | 0.845 | 55.3 | 0.4% |
| Calibration 2 | 206 | 300.0 | 0.319 | 1.0 | 0.847 | 55.6 | 0.4% |
| Calibration 3 | 206 | 300.0 | 0.319 | 1.0 | 0.847 | 55.6 | 0.4% |
| 100% | 206 | 300.0 | 0.319 | 1.0 | 0.847 | 55.5 | 0.4% |
| 90% | 206 | 300.0 | 0.300 | 1.0 | 0.822 | 50.7 | 0.5% |
| 80% | 206 | 300.0 | 0.285 | 1.0 | 0.797 | 46.7 | 0.5% |
| 70% | 206 | 300.0 | 0.269 | 1.0 | 0.767 | 42.6 | 0.5% |
| 60% | 206 | 300.0 | 0.256 | 1.0 | 0.736 | 38.8 | 0.6% |
| 50% | 206 | 300.0 | 0.242 | 1.0 | 0.704 | 35.1 | 0.6% |
| 40% | 206 | 300.0 | 0.227 | 1.0 | 0.658 | 30.8 | 0.7% |
| 30% | 206 | 300.0 | 0.212 | 0.5 | 0.606 | 26.4 | 0.5% |
| 20% | 206 | 300.0 | 0.195 | 0.5 | 0.540 | 21.7 | 0.6% |
| 10% | 206 | 300.0 | 0.176 | 0.5 | 0.466 | 16.9 | 0.7% |
| Active Idle | 206 | 300.0 | 0.144 | 0.2 | 0.396 | 11.7 | 0.6% |
