New H3C Technologies Co., Ltd. H3C UniServer R4900 G5 ssj_ops@100% = 101,725
Test Sponsor: New H3C Technologies Co., Ltd. SPEC License #: 9066 Test Method: Single Node
Tested By: New H3C Technologies Co., Ltd. Test Location: Hangzhou, Zhejiang, China Test Date: Oct 9, 2021
Hardware Availability: May-2021 Software Availability: Jul-2021 Publication: Oct 28, 2021
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     100,917
Calibration 2     101,646
Calibration 3     101,703
ssj_ops@calibrated=101,674
100% 100.0% 101,674 101,725
90% 90.8% 91,507 92,308
80% 79.2% 81,339 80,561
70% 70.3% 71,172 71,505
60% 60.4% 61,005 61,389
50% 50.4% 50,837 51,203
40% 40.2% 40,670 40,899
30% 29.9% 30,502 30,414
20% 20.1% 20,335 20,413
10% 9.9% 10,167 10,016
Active Idle   0 0

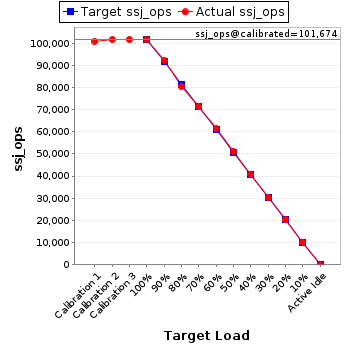

Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: System Under Test
# of Identical Nodes: 1
Comment: SUT
Hardware
Hardware Vendor: New H3C Technologies Co., Ltd.
Model: H3C UniServer R4900 G5
Form Factor: 2U
CPU Name: Intel Xeon Platinum 8380 2.3GHz
CPU Characteristics: 2.3 GHz, 40 core, 60MB L3 cache
CPU Frequency (MHz): 2300
CPU(s) Enabled: 80 cores, 2 chips, 40 cores/chip
Hardware Threads: 160 (2 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 32 KB I + 48 KB D on chip per core
Secondary Cache: 1280 KB I+D on chip per chip
Tertiary Cache: 60 MB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 256
# and size of DIMM: 16 x 16 GB
Memory Details: 16 GB 2Rx8 PC4-3200AA-RE2-12; slots 1, 3, 5, 7, 10, 12, 14, 16 populated in each Socket
Power Supply Quantity and Rating (W): 1 x 850
Power Supply Details: 1 X DELTA DPS-850AB-11A PN:IRHD2111000036
Disk Drive: 1 x Intel M.2 SSD 240GB SSDSCKKB240GZ,PN:PHYK115400HH240A
Disk Controller: Integrated SATA controller
# and type of Network Interface Cards (NICs) Installed: 1 x H3C 4-Port 1GE OCP3.0 Adapter
NICs Enabled in Firmware / OS / Connected: 4/4/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Balanced Mode Enabled In OS (see SUT Notes)
Operating System (OS): Windows Server 2019 Datacenter
OS Version: Version 1809(OS Build 17763.1)
Filesystem: NTFS
JVM Vendor: Oracle Corporation
JVM Version: Oracle Java HotSpot(TM) 64-bit Server VM 18.9 (build 11.0.9+7-LTS,mixed mode)
JVM Command-line Options: set JAVAOPTIONS_SSJ=-server -Xmn1700m -Xms1950m -Xmx1950m -XX:SurvivorRatio=1 -XX:TargetSurvivorRatio=99 -XX:ParallelGCThreads=2 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=4 -XX:LoopUnrollLimit=45 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:InlineSmallCode=3900 -XX:MaxInlineSize=270 -XX:FreqInlineSize=2500 -XX:+UseLargePages -XX:+UseParallelOldGC -XX:UseAVX=1 -XX:-UseAdaptiveSizePolicy -XX:-ThreadLocalHandshakes
JVM Affinity: start /node [0,1,2,3] /affinity [3,C,30,C0,300,C00,3000,C000,30000,C0000,300000,C00000,3000000,C000000,30000000,C0000000,300000000,C00000000,3000000000,C000000000]
JVM Instances: 80
JVM Initial Heap (MB): 1950
JVM Maximum Heap (MB): 1950
JVM Address Bits: 64
Boot Firmware Version: 5.30.00
Management Firmware Version: 2.60.00
Workload Version: SSJ 1.2.10
Director Location: Controller
Other Software: Microsoft Windows KB4072698
Boot Firmware Settings
  • Degrade Precedence: Feature Precedence
  • UPI Link Frequency Select: 9.6GT/s
  • Patrol Scrub: Disabled
  • Hardware Prefetcher: Disabled
  • Adjacent Cache Prefetch: Disabled
  • DCU Streamer Prefetcher: Disabled
  • Memory Frequency: 2400
  • Turbo Mode: Disabled
  • CPU C6 Report: Enabled
  • Package C State: C6(non Retention state)
  • SNC (Sub NUMA): Enable SNC2(2-clusters)
    • Management Firmware Settings
    none
    System Under Test Notes
    Notes
    None
    Performance Details
    Target Load Actual Load Transaction Type Count Total Heap (MB)
    Calibration 1 New Order 7,355,777 1,384
    Payment 7,355,779
    Order Status 735,577
    Delivery 735,576
    Stock Level 735,577
    Customer Report 7,355,778
    Calibration 2 New Order 7,397,239 1,384
    Payment 7,397,235
    Order Status 739,723
    Delivery 739,723
    Stock Level 739,723
    Customer Report 7,397,230
    Calibration 3 New Order 7,396,709 1,384
    Payment 7,396,704
    Order Status 739,669
    Delivery 739,670
    Stock Level 739,671
    Customer Report 7,396,707
    100% 100.0% New Order 7,400,377 1,384
    Payment 7,400,377
    Order Status 740,038
    Delivery 740,036
    Stock Level 740,037
    Customer Report 7,400,381
    90% 90.8% New Order 6,715,291 1,384
    Payment 6,715,289
    Order Status 671,530
    Delivery 671,529
    Stock Level 671,530
    Customer Report 6,715,290
    80% 79.2% New Order 5,868,233 1,384
    Payment 5,868,228
    Order Status 586,823
    Delivery 586,823
    Stock Level 586,823
    Customer Report 5,868,228
    70% 70.3% New Order 5,202,699 1,384
    Payment 5,202,694
    Order Status 520,267
    Delivery 520,270
    Stock Level 520,270
    Customer Report 5,202,696
    60% 60.4% New Order 4,466,323 1,384
    Payment 4,466,325
    Order Status 446,632
    Delivery 446,633
    Stock Level 446,633
    Customer Report 4,466,331
    50% 50.4% New Order 3,724,644 1,384
    Payment 3,724,641
    Order Status 372,463
    Delivery 372,466
    Stock Level 372,464
    Customer Report 3,724,646
    40% 40.2% New Order 2,974,698 1,384
    Payment 2,974,700
    Order Status 297,469
    Delivery 297,471
    Stock Level 297,470
    Customer Report 2,974,703
    30% 29.9% New Order 2,212,036 1,384
    Payment 2,212,034
    Order Status 221,204
    Delivery 221,204
    Stock Level 221,203
    Customer Report 2,212,028
    20% 20.1% New Order 1,484,674 1,384
    Payment 1,484,675
    Order Status 148,467
    Delivery 148,467
    Stock Level 148,467
    Customer Report 1,484,675
    10% 9.9% New Order 728,489 1,384
    Payment 728,478
    Order Status 72,848
    Delivery 72,849
    Stock Level 72,849
    Customer Report 728,487
    Active Idle New Order 0 1,384
    Payment 0
    Order Status 0
    Delivery 0
    Stock Level 0
    Customer Report 0
