New H3C Technologies Co., Ltd. H3C UniServer R4900 G5 ssj_ops@100% = 98,724
Test Sponsor: New H3C Technologies Co., Ltd. SPEC License #: 9066 Test Method: Single Node
Tested By: New H3C Technologies Co., Ltd. Test Location: Hangzhou, Zhejiang, China Test Date: Oct 9, 2021
Hardware Availability: May-2021 Software Availability: Jul-2021 Publication: Oct 28, 2021
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     100,178
Calibration 2     98,981
Calibration 3     99,106
ssj_ops@calibrated=99,044
100% 99.7% 99,044 98,724
90% 90.1% 89,139 89,244
80% 78.6% 79,235 77,880
70% 70.5% 69,330 69,813
60% 59.9% 59,426 59,291
50% 50.6% 49,522 50,123
40% 40.0% 39,617 39,620
30% 29.8% 29,713 29,526
20% 19.9% 19,809 19,675
10% 9.7% 9,904 9,559
Active Idle   0 0

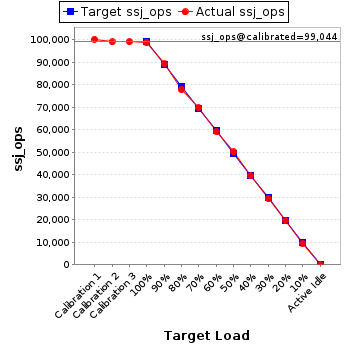

Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: System Under Test
# of Identical Nodes: 1
Comment: SUT
Hardware
Hardware Vendor: New H3C Technologies Co., Ltd.
Model: H3C UniServer R4900 G5
Form Factor: 2U
CPU Name: Intel Xeon Platinum 8380 2.3GHz
CPU Characteristics: 2.3 GHz, 40 core, 60MB L3 cache
CPU Frequency (MHz): 2300
CPU(s) Enabled: 80 cores, 2 chips, 40 cores/chip
Hardware Threads: 160 (2 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 32 KB I + 48 KB D on chip per core
Secondary Cache: 1280 KB I+D on chip per chip
Tertiary Cache: 60 MB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 256
# and size of DIMM: 16 x 16 GB
Memory Details: 16 GB 2Rx8 PC4-3200AA-RE2-12; slots 1, 3, 5, 7, 10, 12, 14, 16 populated in each Socket
Power Supply Quantity and Rating (W): 1 x 850
Power Supply Details: 1 X DELTA DPS-850AB-11A PN:IRHD2111000036
Disk Drive: 1 x Intel M.2 SSD 240GB SSDSCKKB240GZ,PN:PHYK115400HH240A
Disk Controller: Integrated SATA controller
# and type of Network Interface Cards (NICs) Installed: 1 x H3C 4-Port 1GE OCP3.0 Adapter
NICs Enabled in Firmware / OS / Connected: 4/4/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Balanced Mode Enabled In OS (see SUT Notes)
Operating System (OS): Windows Server 2019 Datacenter
OS Version: Version 1809(OS Build 17763.1)
Filesystem: NTFS
JVM Vendor: Oracle Corporation
JVM Version: Oracle Java HotSpot(TM) 64-bit Server VM 18.9 (build 11.0.9+7-LTS,mixed mode)
JVM Command-line Options: set JAVAOPTIONS_SSJ=-server -Xmn1700m -Xms1950m -Xmx1950m -XX:SurvivorRatio=1 -XX:TargetSurvivorRatio=99 -XX:ParallelGCThreads=2 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=4 -XX:LoopUnrollLimit=45 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:InlineSmallCode=3900 -XX:MaxInlineSize=270 -XX:FreqInlineSize=2500 -XX:+UseLargePages -XX:+UseParallelOldGC -XX:UseAVX=1 -XX:-UseAdaptiveSizePolicy -XX:-ThreadLocalHandshakes
JVM Affinity: start /node [0,1,2,3] /affinity [3,C,30,C0,300,C00,3000,C000,30000,C0000,300000,C00000,3000000,C000000,30000000,C0000000,300000000,C00000000,3000000000,C000000000]
JVM Instances: 80
JVM Initial Heap (MB): 1950
JVM Maximum Heap (MB): 1950
JVM Address Bits: 64
Boot Firmware Version: 5.30.00
Management Firmware Version: 2.60.00
Workload Version: SSJ 1.2.10
Director Location: Controller
Other Software: Microsoft Windows KB4072698
Boot Firmware Settings
  • Degrade Precedence: Feature Precedence
  • UPI Link Frequency Select: 9.6GT/s
  • Patrol Scrub: Disabled
  • Hardware Prefetcher: Disabled
  • Adjacent Cache Prefetch: Disabled
  • DCU Streamer Prefetcher: Disabled
  • Memory Frequency: 2400
  • Turbo Mode: Disabled
  • CPU C6 Report: Enabled
  • Package C State: C6(non Retention state)
  • SNC (Sub NUMA): Enable SNC2(2-clusters)
    • Management Firmware Settings
    none
    System Under Test Notes
    Notes
    None
    Performance Details
    Target Load Actual Load Transaction Type Count Total Heap (MB)
    Calibration 1 New Order 7,300,015 1,384
    Payment 7,300,014
    Order Status 730,001
    Delivery 730,001
    Stock Level 730,001
    Customer Report 7,300,015
    Calibration 2 New Order 7,199,149 1,384
    Payment 7,199,146
    Order Status 719,915
    Delivery 719,914
    Stock Level 719,915
    Customer Report 7,199,146
    Calibration 3 New Order 7,215,084 1,384
    Payment 7,215,084
    Order Status 721,511
    Delivery 721,509
    Stock Level 721,508
    Customer Report 7,215,085
    100% 99.7% New Order 7,182,309 1,384
    Payment 7,182,308
    Order Status 718,230
    Delivery 718,232
    Stock Level 718,230
    Customer Report 7,182,310
    90% 90.1% New Order 6,492,474 1,384
    Payment 6,492,468
    Order Status 649,247
    Delivery 649,247
    Stock Level 649,247
    Customer Report 6,492,468
    80% 78.6% New Order 5,665,879 1,384
    Payment 5,665,884
    Order Status 566,588
    Delivery 566,590
    Stock Level 566,587
    Customer Report 5,665,884
    70% 70.5% New Order 5,079,342 1,384
    Payment 5,079,333
    Order Status 507,932
    Delivery 507,933
    Stock Level 507,934
    Customer Report 5,079,342
    60% 59.9% New Order 4,314,382 1,384
    Payment 4,314,385
    Order Status 431,439
    Delivery 431,439
    Stock Level 431,439
    Customer Report 4,314,383
    50% 50.6% New Order 3,645,348 1,384
    Payment 3,645,345
    Order Status 364,534
    Delivery 364,533
    Stock Level 364,533
    Customer Report 3,645,341
    40% 40.0% New Order 2,882,859 1,384
    Payment 2,882,860
    Order Status 288,285
    Delivery 288,287
    Stock Level 288,286
    Customer Report 2,882,854
    30% 29.8% New Order 2,147,482 1,384
    Payment 2,147,478
    Order Status 214,747
    Delivery 214,748
    Stock Level 214,748
    Customer Report 2,147,480
    20% 19.9% New Order 1,430,899 1,384
    Payment 1,430,896
    Order Status 143,090
    Delivery 143,090
    Stock Level 143,091
    Customer Report 1,430,900
    10% 9.7% New Order 695,236 1,384
    Payment 695,239
    Order Status 69,522
    Delivery 69,523
    Stock Level 69,523
    Customer Report 695,232
    Active Idle New Order 0 1,384
    Payment 0
    Order Status 0
    Delivery 0
    Stock Level 0
    Customer Report 0
