New H3C Technologies Co., Ltd. H3C UniServer R4900 G5 ssj_ops@100% = 105,075
Test Sponsor: New H3C Technologies Co., Ltd. SPEC License #: 9066 Test Method: Single Node
Tested By: New H3C Technologies Co., Ltd. Test Location: Hangzhou, Zhejiang, China Test Date: Oct 9, 2021
Hardware Availability: May-2021 Software Availability: Jul-2021 Publication: Oct 28, 2021
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     105,027
Calibration 2     105,410
Calibration 3     105,623
ssj_ops@calibrated=105,517
100% 99.6% 105,517 105,075
90% 89.8% 94,965 94,763
80% 80.1% 84,413 84,478
70% 69.6% 73,862 73,452
60% 59.7% 63,310 63,017
50% 49.9% 52,758 52,702
40% 39.2% 42,207 41,408
30% 30.0% 31,655 31,646
20% 20.2% 21,103 21,311
10% 9.9% 10,552 10,465
Active Idle   0 0

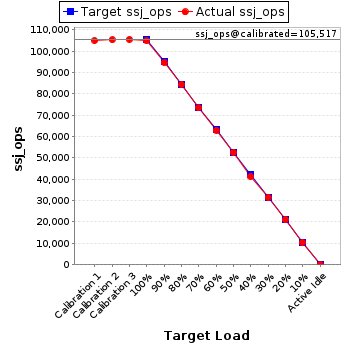

Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: System Under Test
# of Identical Nodes: 1
Comment: SUT
Hardware
Hardware Vendor: New H3C Technologies Co., Ltd.
Model: H3C UniServer R4900 G5
Form Factor: 2U
CPU Name: Intel Xeon Platinum 8380 2.3GHz
CPU Characteristics: 2.3 GHz, 40 core, 60MB L3 cache
CPU Frequency (MHz): 2300
CPU(s) Enabled: 80 cores, 2 chips, 40 cores/chip
Hardware Threads: 160 (2 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 32 KB I + 48 KB D on chip per core
Secondary Cache: 1280 KB I+D on chip per chip
Tertiary Cache: 60 MB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 256
# and size of DIMM: 16 x 16 GB
Memory Details: 16 GB 2Rx8 PC4-3200AA-RE2-12; slots 1, 3, 5, 7, 10, 12, 14, 16 populated in each Socket
Power Supply Quantity and Rating (W): 1 x 850
Power Supply Details: 1 X DELTA DPS-850AB-11A PN:IRHD2111000036
Disk Drive: 1 x Intel M.2 SSD 240GB SSDSCKKB240GZ,PN:PHYK115400HH240A
Disk Controller: Integrated SATA controller
# and type of Network Interface Cards (NICs) Installed: 1 x H3C 4-Port 1GE OCP3.0 Adapter
NICs Enabled in Firmware / OS / Connected: 4/4/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Balanced Mode Enabled In OS (see SUT Notes)
Operating System (OS): Windows Server 2019 Datacenter
OS Version: Version 1809(OS Build 17763.1)
Filesystem: NTFS
JVM Vendor: Oracle Corporation
JVM Version: Oracle Java HotSpot(TM) 64-bit Server VM 18.9 (build 11.0.9+7-LTS,mixed mode)
JVM Command-line Options: set JAVAOPTIONS_SSJ=-server -Xmn1700m -Xms1950m -Xmx1950m -XX:SurvivorRatio=1 -XX:TargetSurvivorRatio=99 -XX:ParallelGCThreads=2 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=4 -XX:LoopUnrollLimit=45 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:InlineSmallCode=3900 -XX:MaxInlineSize=270 -XX:FreqInlineSize=2500 -XX:+UseLargePages -XX:+UseParallelOldGC -XX:UseAVX=1 -XX:-UseAdaptiveSizePolicy -XX:-ThreadLocalHandshakes
JVM Affinity: start /node [0,1,2,3] /affinity [3,C,30,C0,300,C00,3000,C000,30000,C0000,300000,C00000,3000000,C000000,30000000,C0000000,300000000,C00000000,3000000000,C000000000]
JVM Instances: 80
JVM Initial Heap (MB): 1950
JVM Maximum Heap (MB): 1950
JVM Address Bits: 64
Boot Firmware Version: 5.30.00
Management Firmware Version: 2.60.00
Workload Version: SSJ 1.2.10
Director Location: Controller
Other Software: Microsoft Windows KB4072698
Boot Firmware Settings
  • Degrade Precedence: Feature Precedence
  • UPI Link Frequency Select: 9.6GT/s
  • Patrol Scrub: Disabled
  • Hardware Prefetcher: Disabled
  • Adjacent Cache Prefetch: Disabled
  • DCU Streamer Prefetcher: Disabled
  • Memory Frequency: 2400
  • Turbo Mode: Disabled
  • CPU C6 Report: Enabled
  • Package C State: C6(non Retention state)
  • SNC (Sub NUMA): Enable SNC2(2-clusters)
    • Management Firmware Settings
    none
    System Under Test Notes
    Notes
    None
    Performance Details
    Target Load Actual Load Transaction Type Count Total Heap (MB)
    Calibration 1 New Order 7,653,308 1,384
    Payment 7,653,312
    Order Status 765,331
    Delivery 765,332
    Stock Level 765,331
    Customer Report 7,653,311
    Calibration 2 New Order 7,674,556 1,384
    Payment 7,674,553
    Order Status 767,455
    Delivery 767,456
    Stock Level 767,455
    Customer Report 7,674,551
    Calibration 3 New Order 7,683,777 1,384
    Payment 7,683,776
    Order Status 768,377
    Delivery 768,377
    Stock Level 768,376
    Customer Report 7,683,773
    100% 99.6% New Order 7,643,400 1,384
    Payment 7,643,397
    Order Status 764,341
    Delivery 764,342
    Stock Level 764,340
    Customer Report 7,643,403
    90% 89.8% New Order 6,892,123 1,384
    Payment 6,892,115
    Order Status 689,212
    Delivery 689,210
    Stock Level 689,210
    Customer Report 6,892,119
    80% 80.1% New Order 6,147,940 1,384
    Payment 6,147,940
    Order Status 614,794
    Delivery 614,794
    Stock Level 614,793
    Customer Report 6,147,939
    70% 69.6% New Order 5,343,898 1,384
    Payment 5,343,892
    Order Status 534,388
    Delivery 534,389
    Stock Level 534,390
    Customer Report 5,343,891
    60% 59.7% New Order 4,586,835 1,384
    Payment 4,586,840
    Order Status 458,684
    Delivery 458,683
    Stock Level 458,684
    Customer Report 4,586,839
    50% 49.9% New Order 3,834,114 1,384
    Payment 3,834,115
    Order Status 383,411
    Delivery 383,411
    Stock Level 383,412
    Customer Report 3,834,115
    40% 39.2% New Order 3,011,789 1,384
    Payment 3,011,787
    Order Status 301,178
    Delivery 301,179
    Stock Level 301,178
    Customer Report 3,011,784
    30% 30.0% New Order 2,301,647 1,384
    Payment 2,301,652
    Order Status 230,165
    Delivery 230,164
    Stock Level 230,166
    Customer Report 2,301,650
    20% 20.2% New Order 1,549,944 1,384
    Payment 1,549,944
    Order Status 154,993
    Delivery 154,994
    Stock Level 154,994
    Customer Report 1,549,941
    10% 9.9% New Order 761,103 1,384
    Payment 761,107
    Order Status 76,110
    Delivery 76,109
    Stock Level 76,110
    Customer Report 761,106
    Active Idle New Order 0 1,384
    Payment 0
    Order Status 0
    Delivery 0
    Stock Level 0
    Customer Report 0
