New H3C Technologies Co., Ltd. H3C UniServer R4900 G5 ssj_ops@100% = 98,776
Test Sponsor: New H3C Technologies Co., Ltd. SPEC License #: 9066 Test Method: Single Node
Tested By: New H3C Technologies Co., Ltd. Test Location: Hangzhou, Zhejiang, China Test Date: Oct 9, 2021
Hardware Availability: May-2021 Software Availability: Jul-2021 Publication: Oct 28, 2021
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     99,946
Calibration 2     99,001
Calibration 3     99,238
ssj_ops@calibrated=99,120
100% 99.7% 99,120 98,776
90% 89.7% 89,208 88,923
80% 80.6% 79,296 79,855
70% 70.7% 69,384 70,041
60% 59.4% 59,472 58,906
50% 49.6% 49,560 49,186
40% 40.1% 39,648 39,793
30% 30.0% 29,736 29,764
20% 20.1% 19,824 19,885
10% 10.3% 9,912 10,191
Active Idle   0 0

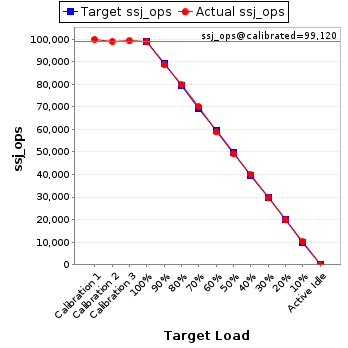

Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: System Under Test
# of Identical Nodes: 1
Comment: SUT
Hardware
Hardware Vendor: New H3C Technologies Co., Ltd.
Model: H3C UniServer R4900 G5
Form Factor: 2U
CPU Name: Intel Xeon Platinum 8380 2.3GHz
CPU Characteristics: 2.3 GHz, 40 core, 60MB L3 cache
CPU Frequency (MHz): 2300
CPU(s) Enabled: 80 cores, 2 chips, 40 cores/chip
Hardware Threads: 160 (2 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 32 KB I + 48 KB D on chip per core
Secondary Cache: 1280 KB I+D on chip per chip
Tertiary Cache: 60 MB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 256
# and size of DIMM: 16 x 16 GB
Memory Details: 16 GB 2Rx8 PC4-3200AA-RE2-12; slots 1, 3, 5, 7, 10, 12, 14, 16 populated in each Socket
Power Supply Quantity and Rating (W): 1 x 850
Power Supply Details: 1 X DELTA DPS-850AB-11A PN:IRHD2111000036
Disk Drive: 1 x Intel M.2 SSD 240GB SSDSCKKB240GZ,PN:PHYK115400HH240A
Disk Controller: Integrated SATA controller
# and type of Network Interface Cards (NICs) Installed: 1 x H3C 4-Port 1GE OCP3.0 Adapter
NICs Enabled in Firmware / OS / Connected: 4/4/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Balanced Mode Enabled In OS (see SUT Notes)
Operating System (OS): Windows Server 2019 Datacenter
OS Version: Version 1809(OS Build 17763.1)
Filesystem: NTFS
JVM Vendor: Oracle Corporation
JVM Version: Oracle Java HotSpot(TM) 64-bit Server VM 18.9 (build 11.0.9+7-LTS,mixed mode)
JVM Command-line Options: set JAVAOPTIONS_SSJ=-server -Xmn1700m -Xms1950m -Xmx1950m -XX:SurvivorRatio=1 -XX:TargetSurvivorRatio=99 -XX:ParallelGCThreads=2 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=4 -XX:LoopUnrollLimit=45 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:InlineSmallCode=3900 -XX:MaxInlineSize=270 -XX:FreqInlineSize=2500 -XX:+UseLargePages -XX:+UseParallelOldGC -XX:UseAVX=1 -XX:-UseAdaptiveSizePolicy -XX:-ThreadLocalHandshakes
JVM Affinity: start /node [0,1,2,3] /affinity [3,C,30,C0,300,C00,3000,C000,30000,C0000,300000,C00000,3000000,C000000,30000000,C0000000,300000000,C00000000,3000000000,C000000000]
JVM Instances: 80
JVM Initial Heap (MB): 1950
JVM Maximum Heap (MB): 1950
JVM Address Bits: 64
Boot Firmware Version: 5.30.00
Management Firmware Version: 2.60.00
Workload Version: SSJ 1.2.10
Director Location: Controller
Other Software: Microsoft Windows KB4072698
Boot Firmware Settings
  • Degrade Precedence: Feature Precedence
  • UPI Link Frequency Select: 9.6GT/s
  • Patrol Scrub: Disabled
  • Hardware Prefetcher: Disabled
  • Adjacent Cache Prefetch: Disabled
  • DCU Streamer Prefetcher: Disabled
  • Memory Frequency: 2400
  • Turbo Mode: Disabled
  • CPU C6 Report: Enabled
  • Package C State: C6(non Retention state)
  • SNC (Sub NUMA): Enable SNC2(2-clusters)
    • Management Firmware Settings
    none
    System Under Test Notes
    Notes
    None
    Performance Details
    Target Load Actual Load Transaction Type Count Total Heap (MB)
    Calibration 1 New Order 7,282,146 1,384
    Payment 7,282,146
    Order Status 728,216
    Delivery 728,215
    Stock Level 728,215
    Customer Report 7,282,149
    Calibration 2 New Order 7,203,882 1,384
    Payment 7,203,884
    Order Status 720,389
    Delivery 720,387
    Stock Level 720,389
    Customer Report 7,203,889
    Calibration 3 New Order 7,217,556 1,384
    Payment 7,217,555
    Order Status 721,756
    Delivery 721,755
    Stock Level 721,755
    Customer Report 7,217,554
    100% 99.7% New Order 7,184,728 1,384
    Payment 7,184,732
    Order Status 718,473
    Delivery 718,474
    Stock Level 718,473
    Customer Report 7,184,728
    90% 89.7% New Order 6,469,805 1,384
    Payment 6,469,808
    Order Status 646,979
    Delivery 646,980
    Stock Level 646,981
    Customer Report 6,469,799
    80% 80.6% New Order 5,811,885 1,384
    Payment 5,811,889
    Order Status 581,189
    Delivery 581,189
    Stock Level 581,189
    Customer Report 5,811,888
    70% 70.7% New Order 5,095,967 1,384
    Payment 5,095,964
    Order Status 509,595
    Delivery 509,597
    Stock Level 509,597
    Customer Report 5,095,962
    60% 59.4% New Order 4,286,563 1,384
    Payment 4,286,565
    Order Status 428,656
    Delivery 428,657
    Stock Level 428,657
    Customer Report 4,286,567
    50% 49.6% New Order 3,578,455 1,384
    Payment 3,578,461
    Order Status 357,847
    Delivery 357,847
    Stock Level 357,845
    Customer Report 3,578,459
    40% 40.1% New Order 2,894,140 1,384
    Payment 2,894,141
    Order Status 289,415
    Delivery 289,415
    Stock Level 289,413
    Customer Report 2,894,139
    30% 30.0% New Order 2,164,742 1,384
    Payment 2,164,748
    Order Status 216,475
    Delivery 216,475
    Stock Level 216,476
    Customer Report 2,164,747
    20% 20.1% New Order 1,446,256 1,384
    Payment 1,446,256
    Order Status 144,627
    Delivery 144,626
    Stock Level 144,625
    Customer Report 1,446,258
    10% 10.3% New Order 741,213 1,384
    Payment 741,215
    Order Status 74,122
    Delivery 74,121
    Stock Level 74,121
    Customer Report 741,208
    Active Idle New Order 0 1,384
    Payment 0
    Order Status 0
    Delivery 0
    Stock Level 0
    Customer Report 0
