New H3C Technologies Co., Ltd. H3C UniServer R4900 G5 ssj_ops@100% = 99,853
Test Sponsor: New H3C Technologies Co., Ltd. SPEC License #: 9066 Test Method: Single Node
Tested By: New H3C Technologies Co., Ltd. Test Location: Hangzhou, Zhejiang, China Test Date: Oct 9, 2021
Hardware Availability: May-2021 Software Availability: Jul-2021 Publication: Oct 28, 2021
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     101,598
Calibration 2     100,770
Calibration 3     100,621
ssj_ops@calibrated=100,696
100% 99.2% 100,696 99,853
90% 89.9% 90,626 90,494
80% 80.9% 80,557 81,413
70% 70.8% 70,487 71,271
60% 59.9% 60,417 60,366
50% 50.0% 50,348 50,331
40% 40.4% 40,278 40,716
30% 29.5% 30,209 29,751
20% 20.0% 20,139 20,158
10% 9.9% 10,070 9,941
Active Idle   0 0

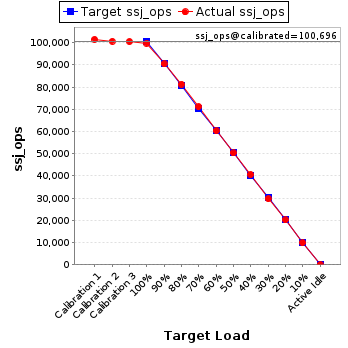

Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: System Under Test
# of Identical Nodes: 1
Comment: SUT
Hardware
Hardware Vendor: New H3C Technologies Co., Ltd.
Model: H3C UniServer R4900 G5
Form Factor: 2U
CPU Name: Intel Xeon Platinum 8380 2.3GHz
CPU Characteristics: 2.3 GHz, 40 core, 60MB L3 cache
CPU Frequency (MHz): 2300
CPU(s) Enabled: 80 cores, 2 chips, 40 cores/chip
Hardware Threads: 160 (2 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 32 KB I + 48 KB D on chip per core
Secondary Cache: 1280 KB I+D on chip per chip
Tertiary Cache: 60 MB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 256
# and size of DIMM: 16 x 16 GB
Memory Details: 16 GB 2Rx8 PC4-3200AA-RE2-12; slots 1, 3, 5, 7, 10, 12, 14, 16 populated in each Socket
Power Supply Quantity and Rating (W): 1 x 850
Power Supply Details: 1 X DELTA DPS-850AB-11A PN:IRHD2111000036
Disk Drive: 1 x Intel M.2 SSD 240GB SSDSCKKB240GZ,PN:PHYK115400HH240A
Disk Controller: Integrated SATA controller
# and type of Network Interface Cards (NICs) Installed: 1 x H3C 4-Port 1GE OCP3.0 Adapter
NICs Enabled in Firmware / OS / Connected: 4/4/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Balanced Mode Enabled In OS (see SUT Notes)
Operating System (OS): Windows Server 2019 Datacenter
OS Version: Version 1809(OS Build 17763.1)
Filesystem: NTFS
JVM Vendor: Oracle Corporation
JVM Version: Oracle Java HotSpot(TM) 64-bit Server VM 18.9 (build 11.0.9+7-LTS,mixed mode)
JVM Command-line Options: set JAVAOPTIONS_SSJ=-server -Xmn1700m -Xms1950m -Xmx1950m -XX:SurvivorRatio=1 -XX:TargetSurvivorRatio=99 -XX:ParallelGCThreads=2 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=4 -XX:LoopUnrollLimit=45 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:InlineSmallCode=3900 -XX:MaxInlineSize=270 -XX:FreqInlineSize=2500 -XX:+UseLargePages -XX:+UseParallelOldGC -XX:UseAVX=1 -XX:-UseAdaptiveSizePolicy -XX:-ThreadLocalHandshakes
JVM Affinity: start /node [0,1,2,3] /affinity [3,C,30,C0,300,C00,3000,C000,30000,C0000,300000,C00000,3000000,C000000,30000000,C0000000,300000000,C00000000,3000000000,C000000000]
JVM Instances: 80
JVM Initial Heap (MB): 1950
JVM Maximum Heap (MB): 1950
JVM Address Bits: 64
Boot Firmware Version: 5.30.00
Management Firmware Version: 2.60.00
Workload Version: SSJ 1.2.10
Director Location: Controller
Other Software: Microsoft Windows KB4072698
Boot Firmware Settings
  • Degrade Precedence: Feature Precedence
  • UPI Link Frequency Select: 9.6GT/s
  • Patrol Scrub: Disabled
  • Hardware Prefetcher: Disabled
  • Adjacent Cache Prefetch: Disabled
  • DCU Streamer Prefetcher: Disabled
  • Memory Frequency: 2400
  • Turbo Mode: Disabled
  • CPU C6 Report: Enabled
  • Package C State: C6(non Retention state)
  • SNC (Sub NUMA): Enable SNC2(2-clusters)
    • Management Firmware Settings
    none
    System Under Test Notes
    Notes
    None
    Performance Details
    Target Load Actual Load Transaction Type Count Total Heap (MB)
    Calibration 1 New Order 7,401,020 1,384
    Payment 7,401,016
    Order Status 740,101
    Delivery 740,103
    Stock Level 740,102
    Customer Report 7,401,016
    Calibration 2 New Order 7,336,705 1,384
    Payment 7,336,703
    Order Status 733,671
    Delivery 733,670
    Stock Level 733,671
    Customer Report 7,336,704
    Calibration 3 New Order 7,326,279 1,384
    Payment 7,326,283
    Order Status 732,628
    Delivery 732,629
    Stock Level 732,628
    Customer Report 7,326,280
    100% 99.2% New Order 7,265,871 1,384
    Payment 7,265,869
    Order Status 726,587
    Delivery 726,585
    Stock Level 726,587
    Customer Report 7,265,863
    90% 89.9% New Order 6,583,428 1,384
    Payment 6,583,427
    Order Status 658,342
    Delivery 658,343
    Stock Level 658,342
    Customer Report 6,583,428
    80% 80.9% New Order 5,925,216 1,384
    Payment 5,925,223
    Order Status 592,522
    Delivery 592,522
    Stock Level 592,521
    Customer Report 5,925,214
    70% 70.8% New Order 5,187,696 1,384
    Payment 5,187,692
    Order Status 518,770
    Delivery 518,769
    Stock Level 518,769
    Customer Report 5,187,694
    60% 59.9% New Order 4,390,616 1,384
    Payment 4,390,616
    Order Status 439,062
    Delivery 439,062
    Stock Level 439,063
    Customer Report 4,390,617
    50% 50.0% New Order 3,662,141 1,384
    Payment 3,662,143
    Order Status 366,215
    Delivery 366,214
    Stock Level 366,215
    Customer Report 3,662,142
    40% 40.4% New Order 2,961,366 1,384
    Payment 2,961,364
    Order Status 296,136
    Delivery 296,137
    Stock Level 296,136
    Customer Report 2,961,360
    30% 29.5% New Order 2,163,729 1,384
    Payment 2,163,734
    Order Status 216,374
    Delivery 216,374
    Stock Level 216,374
    Customer Report 2,163,730
    20% 20.0% New Order 1,466,058 1,384
    Payment 1,466,061
    Order Status 146,606
    Delivery 146,606
    Stock Level 146,605
    Customer Report 1,466,064
    10% 9.9% New Order 723,031 1,384
    Payment 723,030
    Order Status 72,302
    Delivery 72,303
    Stock Level 72,303
    Customer Report 723,031
    Active Idle New Order 0 1,384
    Payment 0
    Order Status 0
    Delivery 0
    Stock Level 0
    Customer Report 0
