New H3C Technologies Co., Ltd. H3C UniServer R4900 G5 ssj_ops@100% = 99,745
Test Sponsor: New H3C Technologies Co., Ltd. SPEC License #: 9066 Test Method: Single Node
Tested By: New H3C Technologies Co., Ltd. Test Location: Hangzhou, Zhejiang, China Test Date: Oct 9, 2021
Hardware Availability: May-2021 Software Availability: Jul-2021 Publication: Oct 28, 2021
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     100,603
Calibration 2     99,824
Calibration 3     99,902
ssj_ops@calibrated=99,863
100% 99.9% 99,863 99,745
90% 90.1% 89,877 89,982
80% 80.1% 79,890 79,965
70% 70.3% 69,904 70,234
60% 60.5% 59,918 60,449
50% 50.1% 49,931 50,056
40% 39.7% 39,945 39,626
30% 30.4% 29,959 30,340
20% 20.6% 19,973 20,579
10% 10.1% 9,986 10,074
Active Idle   0 0

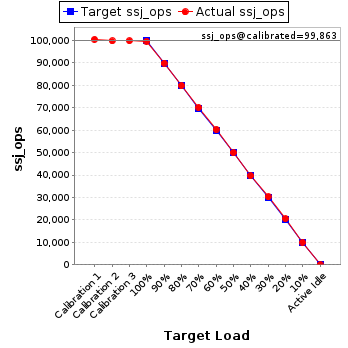

Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: System Under Test
# of Identical Nodes: 1
Comment: SUT
Hardware
Hardware Vendor: New H3C Technologies Co., Ltd.
Model: H3C UniServer R4900 G5
Form Factor: 2U
CPU Name: Intel Xeon Platinum 8380 2.3GHz
CPU Characteristics: 2.3 GHz, 40 core, 60MB L3 cache
CPU Frequency (MHz): 2300
CPU(s) Enabled: 80 cores, 2 chips, 40 cores/chip
Hardware Threads: 160 (2 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 32 KB I + 48 KB D on chip per core
Secondary Cache: 1280 KB I+D on chip per chip
Tertiary Cache: 60 MB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 256
# and size of DIMM: 16 x 16 GB
Memory Details: 16 GB 2Rx8 PC4-3200AA-RE2-12; slots 1, 3, 5, 7, 10, 12, 14, 16 populated in each Socket
Power Supply Quantity and Rating (W): 1 x 850
Power Supply Details: 1 X DELTA DPS-850AB-11A PN:IRHD2111000036
Disk Drive: 1 x Intel M.2 SSD 240GB SSDSCKKB240GZ,PN:PHYK115400HH240A
Disk Controller: Integrated SATA controller
# and type of Network Interface Cards (NICs) Installed: 1 x H3C 4-Port 1GE OCP3.0 Adapter
NICs Enabled in Firmware / OS / Connected: 4/4/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Balanced Mode Enabled In OS (see SUT Notes)
Operating System (OS): Windows Server 2019 Datacenter
OS Version: Version 1809(OS Build 17763.1)
Filesystem: NTFS
JVM Vendor: Oracle Corporation
JVM Version: Oracle Java HotSpot(TM) 64-bit Server VM 18.9 (build 11.0.9+7-LTS,mixed mode)
JVM Command-line Options: set JAVAOPTIONS_SSJ=-server -Xmn1700m -Xms1950m -Xmx1950m -XX:SurvivorRatio=1 -XX:TargetSurvivorRatio=99 -XX:ParallelGCThreads=2 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=4 -XX:LoopUnrollLimit=45 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:InlineSmallCode=3900 -XX:MaxInlineSize=270 -XX:FreqInlineSize=2500 -XX:+UseLargePages -XX:+UseParallelOldGC -XX:UseAVX=1 -XX:-UseAdaptiveSizePolicy -XX:-ThreadLocalHandshakes
JVM Affinity: start /node [0,1,2,3] /affinity [3,C,30,C0,300,C00,3000,C000,30000,C0000,300000,C00000,3000000,C000000,30000000,C0000000,300000000,C00000000,3000000000,C000000000]
JVM Instances: 80
JVM Initial Heap (MB): 1950
JVM Maximum Heap (MB): 1950
JVM Address Bits: 64
Boot Firmware Version: 5.30.00
Management Firmware Version: 2.60.00
Workload Version: SSJ 1.2.10
Director Location: Controller
Other Software: Microsoft Windows KB4072698
Boot Firmware Settings
  • Degrade Precedence: Feature Precedence
  • UPI Link Frequency Select: 9.6GT/s
  • Patrol Scrub: Disabled
  • Hardware Prefetcher: Disabled
  • Adjacent Cache Prefetch: Disabled
  • DCU Streamer Prefetcher: Disabled
  • Memory Frequency: 2400
  • Turbo Mode: Disabled
  • CPU C6 Report: Enabled
  • Package C State: C6(non Retention state)
  • SNC (Sub NUMA): Enable SNC2(2-clusters)
    • Management Firmware Settings
    none
    System Under Test Notes
    Notes
    None
    Performance Details
    Target Load Actual Load Transaction Type Count Total Heap (MB)
    Calibration 1 New Order 7,326,639 1,384
    Payment 7,326,633
    Order Status 732,663
    Delivery 732,664
    Stock Level 732,664
    Customer Report 7,326,637
    Calibration 2 New Order 7,261,170 1,384
    Payment 7,261,168
    Order Status 726,116
    Delivery 726,116
    Stock Level 726,117
    Customer Report 7,261,170
    Calibration 3 New Order 7,268,975 1,384
    Payment 7,268,977
    Order Status 726,897
    Delivery 726,897
    Stock Level 726,898
    Customer Report 7,268,977
    100% 99.9% New Order 7,259,906 1,384
    Payment 7,259,908
    Order Status 725,990
    Delivery 725,990
    Stock Level 725,991
    Customer Report 7,259,909
    90% 90.1% New Order 6,545,053 1,384
    Payment 6,545,047
    Order Status 654,506
    Delivery 654,504
    Stock Level 654,505
    Customer Report 6,545,047
    80% 80.1% New Order 5,815,888 1,384
    Payment 5,815,889
    Order Status 581,589
    Delivery 581,589
    Stock Level 581,589
    Customer Report 5,815,885
    70% 70.3% New Order 5,108,053 1,384
    Payment 5,108,054
    Order Status 510,805
    Delivery 510,806
    Stock Level 510,805
    Customer Report 5,108,054
    60% 60.5% New Order 4,396,267 1,384
    Payment 4,396,263
    Order Status 439,626
    Delivery 439,627
    Stock Level 439,627
    Customer Report 4,396,274
    50% 50.1% New Order 3,642,224 1,384
    Payment 3,642,228
    Order Status 364,224
    Delivery 364,222
    Stock Level 364,224
    Customer Report 3,642,226
    40% 39.7% New Order 2,882,119 1,384
    Payment 2,882,116
    Order Status 288,213
    Delivery 288,211
    Stock Level 288,212
    Customer Report 2,882,123
    30% 30.4% New Order 2,206,610 1,384
    Payment 2,206,603
    Order Status 220,661
    Delivery 220,661
    Stock Level 220,661
    Customer Report 2,206,607
    20% 20.6% New Order 1,496,740 1,384
    Payment 1,496,735
    Order Status 149,673
    Delivery 149,674
    Stock Level 149,673
    Customer Report 1,496,738
    10% 10.1% New Order 732,715 1,384
    Payment 732,711
    Order Status 73,272
    Delivery 73,271
    Stock Level 73,271
    Customer Report 732,716
    Active Idle New Order 0 1,384
    Payment 0
    Order Status 0
    Delivery 0
    Stock Level 0
    Customer Report 0
