New H3C Technologies Co., Ltd. H3C UniServer R4900 G5 ssj_ops@100% = 99,643
Test Sponsor: New H3C Technologies Co., Ltd. SPEC License #: 9066 Test Method: Single Node
Tested By: New H3C Technologies Co., Ltd. Test Location: Hangzhou, Zhejiang, China Test Date: Oct 9, 2021
Hardware Availability: May-2021 Software Availability: Jul-2021 Publication: Oct 28, 2021
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     99,945
Calibration 2     99,744
Calibration 3     99,876
ssj_ops@calibrated=99,810
100% 99.8% 99,810 99,643
90% 90.8% 89,829 90,601
80% 80.9% 79,848 80,783
70% 69.3% 69,867 69,120
60% 60.1% 59,886 59,949
50% 49.6% 49,905 49,487
40% 40.2% 39,924 40,158
30% 30.0% 29,943 29,953
20% 20.7% 19,962 20,700
10% 10.0% 9,981 9,997
Active Idle   0 0

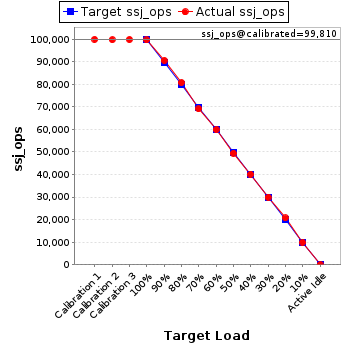

Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: System Under Test
# of Identical Nodes: 1
Comment: SUT
Hardware
Hardware Vendor: New H3C Technologies Co., Ltd.
Model: H3C UniServer R4900 G5
Form Factor: 2U
CPU Name: Intel Xeon Platinum 8380 2.3GHz
CPU Characteristics: 2.3 GHz, 40 core, 60MB L3 cache
CPU Frequency (MHz): 2300
CPU(s) Enabled: 80 cores, 2 chips, 40 cores/chip
Hardware Threads: 160 (2 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 32 KB I + 48 KB D on chip per core
Secondary Cache: 1280 KB I+D on chip per chip
Tertiary Cache: 60 MB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 256
# and size of DIMM: 16 x 16 GB
Memory Details: 16 GB 2Rx8 PC4-3200AA-RE2-12; slots 1, 3, 5, 7, 10, 12, 14, 16 populated in each Socket
Power Supply Quantity and Rating (W): 1 x 850
Power Supply Details: 1 X DELTA DPS-850AB-11A PN:IRHD2111000036
Disk Drive: 1 x Intel M.2 SSD 240GB SSDSCKKB240GZ,PN:PHYK115400HH240A
Disk Controller: Integrated SATA controller
# and type of Network Interface Cards (NICs) Installed: 1 x H3C 4-Port 1GE OCP3.0 Adapter
NICs Enabled in Firmware / OS / Connected: 4/4/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Balanced Mode Enabled In OS (see SUT Notes)
Operating System (OS): Windows Server 2019 Datacenter
OS Version: Version 1809(OS Build 17763.1)
Filesystem: NTFS
JVM Vendor: Oracle Corporation
JVM Version: Oracle Java HotSpot(TM) 64-bit Server VM 18.9 (build 11.0.9+7-LTS,mixed mode)
JVM Command-line Options: set JAVAOPTIONS_SSJ=-server -Xmn1700m -Xms1950m -Xmx1950m -XX:SurvivorRatio=1 -XX:TargetSurvivorRatio=99 -XX:ParallelGCThreads=2 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=4 -XX:LoopUnrollLimit=45 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:InlineSmallCode=3900 -XX:MaxInlineSize=270 -XX:FreqInlineSize=2500 -XX:+UseLargePages -XX:+UseParallelOldGC -XX:UseAVX=1 -XX:-UseAdaptiveSizePolicy -XX:-ThreadLocalHandshakes
JVM Affinity: start /node [0,1,2,3] /affinity [3,C,30,C0,300,C00,3000,C000,30000,C0000,300000,C00000,3000000,C000000,30000000,C0000000,300000000,C00000000,3000000000,C000000000]
JVM Instances: 80
JVM Initial Heap (MB): 1950
JVM Maximum Heap (MB): 1950
JVM Address Bits: 64
Boot Firmware Version: 5.30.00
Management Firmware Version: 2.60.00
Workload Version: SSJ 1.2.10
Director Location: Controller
Other Software: Microsoft Windows KB4072698
Boot Firmware Settings
  • Degrade Precedence: Feature Precedence
  • UPI Link Frequency Select: 9.6GT/s
  • Patrol Scrub: Disabled
  • Hardware Prefetcher: Disabled
  • Adjacent Cache Prefetch: Disabled
  • DCU Streamer Prefetcher: Disabled
  • Memory Frequency: 2400
  • Turbo Mode: Disabled
  • CPU C6 Report: Enabled
  • Package C State: C6(non Retention state)
  • SNC (Sub NUMA): Enable SNC2(2-clusters)
    • Management Firmware Settings
    none
    System Under Test Notes
    Notes
    None
    Performance Details
    Target Load Actual Load Transaction Type Count Total Heap (MB)
    Calibration 1 New Order 7,277,179 1,384
    Payment 7,277,183
    Order Status 727,717
    Delivery 727,719
    Stock Level 727,718
    Customer Report 7,277,181
    Calibration 2 New Order 7,258,932 1,384
    Payment 7,258,939
    Order Status 725,895
    Delivery 725,892
    Stock Level 725,893
    Customer Report 7,258,936
    Calibration 3 New Order 7,266,632 1,384
    Payment 7,266,628
    Order Status 726,663
    Delivery 726,663
    Stock Level 726,663
    Customer Report 7,266,628
    100% 99.8% New Order 7,248,034 1,384
    Payment 7,248,036
    Order Status 724,804
    Delivery 724,804
    Stock Level 724,804
    Customer Report 7,248,042
    90% 90.8% New Order 6,590,861 1,384
    Payment 6,590,867
    Order Status 659,086
    Delivery 659,087
    Stock Level 659,087
    Customer Report 6,590,866
    80% 80.9% New Order 5,876,373 1,384
    Payment 5,876,368
    Order Status 587,637
    Delivery 587,636
    Stock Level 587,637
    Customer Report 5,876,366
    70% 69.3% New Order 5,028,957 1,384
    Payment 5,028,955
    Order Status 502,896
    Delivery 502,896
    Stock Level 502,895
    Customer Report 5,028,957
    60% 60.1% New Order 4,361,674 1,384
    Payment 4,361,672
    Order Status 436,166
    Delivery 436,168
    Stock Level 436,167
    Customer Report 4,361,671
    50% 49.6% New Order 3,602,011 1,384
    Payment 3,602,006
    Order Status 360,201
    Delivery 360,201
    Stock Level 360,200
    Customer Report 3,602,010
    40% 40.2% New Order 2,921,104 1,384
    Payment 2,921,108
    Order Status 292,109
    Delivery 292,110
    Stock Level 292,111
    Customer Report 2,921,102
    30% 30.0% New Order 2,178,392 1,384
    Payment 2,178,394
    Order Status 217,840
    Delivery 217,839
    Stock Level 217,839
    Customer Report 2,178,400
    20% 20.7% New Order 1,505,454 1,384
    Payment 1,505,453
    Order Status 150,546
    Delivery 150,546
    Stock Level 150,544
    Customer Report 1,505,457
    10% 10.0% New Order 727,068 1,384
    Payment 727,066
    Order Status 72,706
    Delivery 72,706
    Stock Level 72,707
    Customer Report 727,065
    Active Idle New Order 0 1,384
    Payment 0
    Order Status 0
    Delivery 0
    Stock Level 0
    Customer Report 0
