New H3C Technologies Co., Ltd. H3C UniServer R4900 G5 ssj_ops@100% = 102,282
Test Sponsor: New H3C Technologies Co., Ltd. SPEC License #: 9066 Test Method: Single Node
Tested By: New H3C Technologies Co., Ltd. Test Location: Hangzhou, Zhejiang, China Test Date: Oct 9, 2021
Hardware Availability: May-2021 Software Availability: Jul-2021 Publication: Oct 28, 2021
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     103,329
Calibration 2     102,358
Calibration 3     102,554
ssj_ops@calibrated=102,456
100% 99.8% 102,456 102,282
90% 89.4% 92,211 91,559
80% 79.5% 81,965 81,474
70% 69.4% 71,719 71,090
60% 59.6% 61,474 61,017
50% 49.8% 51,228 51,034
40% 39.5% 40,983 40,510
30% 30.2% 30,737 30,917
20% 19.7% 20,491 20,229
10% 10.4% 10,246 10,658
Active Idle   0 0

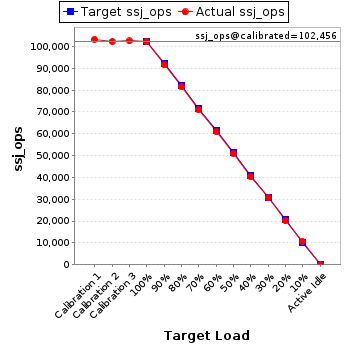

Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: System Under Test
# of Identical Nodes: 1
Comment: SUT
Hardware
Hardware Vendor: New H3C Technologies Co., Ltd.
Model: H3C UniServer R4900 G5
Form Factor: 2U
CPU Name: Intel Xeon Platinum 8380 2.3GHz
CPU Characteristics: 2.3 GHz, 40 core, 60MB L3 cache
CPU Frequency (MHz): 2300
CPU(s) Enabled: 80 cores, 2 chips, 40 cores/chip
Hardware Threads: 160 (2 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 32 KB I + 48 KB D on chip per core
Secondary Cache: 1280 KB I+D on chip per chip
Tertiary Cache: 60 MB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 256
# and size of DIMM: 16 x 16 GB
Memory Details: 16 GB 2Rx8 PC4-3200AA-RE2-12; slots 1, 3, 5, 7, 10, 12, 14, 16 populated in each Socket
Power Supply Quantity and Rating (W): 1 x 850
Power Supply Details: 1 X DELTA DPS-850AB-11A PN:IRHD2111000036
Disk Drive: 1 x Intel M.2 SSD 240GB SSDSCKKB240GZ,PN:PHYK115400HH240A
Disk Controller: Integrated SATA controller
# and type of Network Interface Cards (NICs) Installed: 1 x H3C 4-Port 1GE OCP3.0 Adapter
NICs Enabled in Firmware / OS / Connected: 4/4/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Balanced Mode Enabled In OS (see SUT Notes)
Operating System (OS): Windows Server 2019 Datacenter
OS Version: Version 1809(OS Build 17763.1)
Filesystem: NTFS
JVM Vendor: Oracle Corporation
JVM Version: Oracle Java HotSpot(TM) 64-bit Server VM 18.9 (build 11.0.9+7-LTS,mixed mode)
JVM Command-line Options: set JAVAOPTIONS_SSJ=-server -Xmn1700m -Xms1950m -Xmx1950m -XX:SurvivorRatio=1 -XX:TargetSurvivorRatio=99 -XX:ParallelGCThreads=2 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=4 -XX:LoopUnrollLimit=45 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:InlineSmallCode=3900 -XX:MaxInlineSize=270 -XX:FreqInlineSize=2500 -XX:+UseLargePages -XX:+UseParallelOldGC -XX:UseAVX=1 -XX:-UseAdaptiveSizePolicy -XX:-ThreadLocalHandshakes
JVM Affinity: start /node [0,1,2,3] /affinity [3,C,30,C0,300,C00,3000,C000,30000,C0000,300000,C00000,3000000,C000000,30000000,C0000000,300000000,C00000000,3000000000,C000000000]
JVM Instances: 80
JVM Initial Heap (MB): 1950
JVM Maximum Heap (MB): 1950
JVM Address Bits: 64
Boot Firmware Version: 5.30.00
Management Firmware Version: 2.60.00
Workload Version: SSJ 1.2.10
Director Location: Controller
Other Software: Microsoft Windows KB4072698
Boot Firmware Settings
  • Degrade Precedence: Feature Precedence
  • UPI Link Frequency Select: 9.6GT/s
  • Patrol Scrub: Disabled
  • Hardware Prefetcher: Disabled
  • Adjacent Cache Prefetch: Disabled
  • DCU Streamer Prefetcher: Disabled
  • Memory Frequency: 2400
  • Turbo Mode: Disabled
  • CPU C6 Report: Enabled
  • Package C State: C6(non Retention state)
  • SNC (Sub NUMA): Enable SNC2(2-clusters)
    • Management Firmware Settings
    none
    System Under Test Notes
    Notes
    None
    Performance Details
    Target Load Actual Load Transaction Type Count Total Heap (MB)
    Calibration 1 New Order 7,517,878 1,384
    Payment 7,517,881
    Order Status 751,788
    Delivery 751,788
    Stock Level 751,789
    Customer Report 7,517,881
    Calibration 2 New Order 7,447,242 1,384
    Payment 7,447,242
    Order Status 744,724
    Delivery 744,724
    Stock Level 744,726
    Customer Report 7,447,245
    Calibration 3 New Order 7,463,919 1,384
    Payment 7,463,920
    Order Status 746,392
    Delivery 746,392
    Stock Level 746,391
    Customer Report 7,463,918
    100% 99.8% New Order 7,439,846 1,384
    Payment 7,439,852
    Order Status 743,985
    Delivery 743,985
    Stock Level 743,985
    Customer Report 7,439,850
    90% 89.4% New Order 6,661,083 1,384
    Payment 6,661,086
    Order Status 666,110
    Delivery 666,109
    Stock Level 666,108
    Customer Report 6,661,080
    80% 79.5% New Order 5,925,929 1,384
    Payment 5,925,932
    Order Status 592,591
    Delivery 592,593
    Stock Level 592,594
    Customer Report 5,925,927
    70% 69.4% New Order 5,170,936 1,384
    Payment 5,170,938
    Order Status 517,093
    Delivery 517,094
    Stock Level 517,094
    Customer Report 5,170,943
    60% 59.6% New Order 4,437,654 1,384
    Payment 4,437,654
    Order Status 443,764
    Delivery 443,766
    Stock Level 443,765
    Customer Report 4,437,647
    50% 49.8% New Order 3,711,597 1,384
    Payment 3,711,587
    Order Status 371,159
    Delivery 371,159
    Stock Level 371,158
    Customer Report 3,711,595
    40% 39.5% New Order 2,946,322 1,384
    Payment 2,946,324
    Order Status 294,633
    Delivery 294,631
    Stock Level 294,632
    Customer Report 2,946,323
    30% 30.2% New Order 2,248,589 1,384
    Payment 2,248,584
    Order Status 224,859
    Delivery 224,859
    Stock Level 224,859
    Customer Report 2,248,581
    20% 19.7% New Order 1,471,212 1,384
    Payment 1,471,214
    Order Status 147,121
    Delivery 147,121
    Stock Level 147,122
    Customer Report 1,471,210
    10% 10.4% New Order 775,154 1,384
    Payment 775,149
    Order Status 77,516
    Delivery 77,515
    Stock Level 77,515
    Customer Report 775,151
    Active Idle New Order 0 1,384
    Payment 0
    Order Status 0
    Delivery 0
    Stock Level 0
    Customer Report 0
