New H3C Technologies Co., Ltd. H3C UniServer R4900 G5 ssj_ops@100% = 104,673
Test Sponsor: New H3C Technologies Co., Ltd. SPEC License #: 9066 Test Method: Single Node
Tested By: New H3C Technologies Co., Ltd. Test Location: Hangzhou, Zhejiang, China Test Date: Oct 9, 2021
Hardware Availability: May-2021 Software Availability: Jul-2021 Publication: Oct 28, 2021
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     105,866
Calibration 2     104,756
Calibration 3     104,744
ssj_ops@calibrated=104,750
100% 99.9% 104,750 104,673
90% 88.7% 94,275 92,914
80% 80.6% 83,800 84,383
70% 69.2% 73,325 72,521
60% 59.5% 62,850 62,320
50% 49.5% 52,375 51,886
40% 39.7% 41,900 41,579
30% 29.8% 31,425 31,212
20% 20.9% 20,950 21,890
10% 10.0% 10,475 10,470
Active Idle   0 0

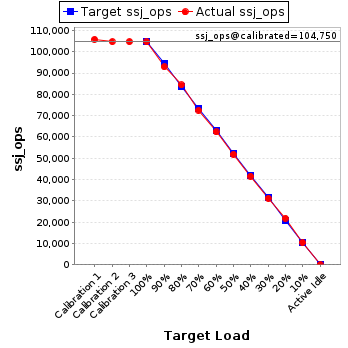

Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: System Under Test
# of Identical Nodes: 1
Comment: SUT
Hardware
Hardware Vendor: New H3C Technologies Co., Ltd.
Model: H3C UniServer R4900 G5
Form Factor: 2U
CPU Name: Intel Xeon Platinum 8380 2.3GHz
CPU Characteristics: 2.3 GHz, 40 core, 60MB L3 cache
CPU Frequency (MHz): 2300
CPU(s) Enabled: 80 cores, 2 chips, 40 cores/chip
Hardware Threads: 160 (2 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 32 KB I + 48 KB D on chip per core
Secondary Cache: 1280 KB I+D on chip per chip
Tertiary Cache: 60 MB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 256
# and size of DIMM: 16 x 16 GB
Memory Details: 16 GB 2Rx8 PC4-3200AA-RE2-12; slots 1, 3, 5, 7, 10, 12, 14, 16 populated in each Socket
Power Supply Quantity and Rating (W): 1 x 850
Power Supply Details: 1 X DELTA DPS-850AB-11A PN:IRHD2111000036
Disk Drive: 1 x Intel M.2 SSD 240GB SSDSCKKB240GZ,PN:PHYK115400HH240A
Disk Controller: Integrated SATA controller
# and type of Network Interface Cards (NICs) Installed: 1 x H3C 4-Port 1GE OCP3.0 Adapter
NICs Enabled in Firmware / OS / Connected: 4/4/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Balanced Mode Enabled In OS (see SUT Notes)
Operating System (OS): Windows Server 2019 Datacenter
OS Version: Version 1809(OS Build 17763.1)
Filesystem: NTFS
JVM Vendor: Oracle Corporation
JVM Version: Oracle Java HotSpot(TM) 64-bit Server VM 18.9 (build 11.0.9+7-LTS,mixed mode)
JVM Command-line Options: set JAVAOPTIONS_SSJ=-server -Xmn1700m -Xms1950m -Xmx1950m -XX:SurvivorRatio=1 -XX:TargetSurvivorRatio=99 -XX:ParallelGCThreads=2 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=4 -XX:LoopUnrollLimit=45 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:InlineSmallCode=3900 -XX:MaxInlineSize=270 -XX:FreqInlineSize=2500 -XX:+UseLargePages -XX:+UseParallelOldGC -XX:UseAVX=1 -XX:-UseAdaptiveSizePolicy -XX:-ThreadLocalHandshakes
JVM Affinity: start /node [0,1,2,3] /affinity [3,C,30,C0,300,C00,3000,C000,30000,C0000,300000,C00000,3000000,C000000,30000000,C0000000,300000000,C00000000,3000000000,C000000000]
JVM Instances: 80
JVM Initial Heap (MB): 1950
JVM Maximum Heap (MB): 1950
JVM Address Bits: 64
Boot Firmware Version: 5.30.00
Management Firmware Version: 2.60.00
Workload Version: SSJ 1.2.10
Director Location: Controller
Other Software: Microsoft Windows KB4072698
Boot Firmware Settings
  • Degrade Precedence: Feature Precedence
  • UPI Link Frequency Select: 9.6GT/s
  • Patrol Scrub: Disabled
  • Hardware Prefetcher: Disabled
  • Adjacent Cache Prefetch: Disabled
  • DCU Streamer Prefetcher: Disabled
  • Memory Frequency: 2400
  • Turbo Mode: Disabled
  • CPU C6 Report: Enabled
  • Package C State: C6(non Retention state)
  • SNC (Sub NUMA): Enable SNC2(2-clusters)
    • Management Firmware Settings
    none
    System Under Test Notes
    Notes
    None
    Performance Details
    Target Load Actual Load Transaction Type Count Total Heap (MB)
    Calibration 1 New Order 7,712,982 1,384
    Payment 7,712,977
    Order Status 771,297
    Delivery 771,297
    Stock Level 771,299
    Customer Report 7,712,981
    Calibration 2 New Order 7,620,704 1,384
    Payment 7,620,701
    Order Status 762,071
    Delivery 762,071
    Stock Level 762,071
    Customer Report 7,620,703
    Calibration 3 New Order 7,618,826 1,384
    Payment 7,618,827
    Order Status 761,884
    Delivery 761,882
    Stock Level 761,881
    Customer Report 7,618,825
    100% 99.9% New Order 7,616,134 1,384
    Payment 7,616,133
    Order Status 761,613
    Delivery 761,613
    Stock Level 761,612
    Customer Report 7,616,131
    90% 88.7% New Order 6,758,147 1,384
    Payment 6,758,143
    Order Status 675,814
    Delivery 675,815
    Stock Level 675,813
    Customer Report 6,758,144
    80% 80.6% New Order 6,139,842 1,384
    Payment 6,139,841
    Order Status 613,985
    Delivery 613,984
    Stock Level 613,984
    Customer Report 6,139,842
    70% 69.2% New Order 5,277,723 1,384
    Payment 5,277,732
    Order Status 527,774
    Delivery 527,772
    Stock Level 527,774
    Customer Report 5,277,732
    60% 59.5% New Order 4,535,215 1,384
    Payment 4,535,209
    Order Status 453,522
    Delivery 453,522
    Stock Level 453,520
    Customer Report 4,535,209
    50% 49.5% New Order 3,775,746 1,384
    Payment 3,775,739
    Order Status 377,575
    Delivery 377,575
    Stock Level 377,574
    Customer Report 3,775,740
    40% 39.7% New Order 3,024,125 1,384
    Payment 3,024,127
    Order Status 302,413
    Delivery 302,413
    Stock Level 302,413
    Customer Report 3,024,124
    30% 29.8% New Order 2,270,186 1,384
    Payment 2,270,191
    Order Status 227,020
    Delivery 227,018
    Stock Level 227,018
    Customer Report 2,270,190
    20% 20.9% New Order 1,592,248 1,384
    Payment 1,592,252
    Order Status 159,225
    Delivery 159,224
    Stock Level 159,225
    Customer Report 1,592,255
    10% 10.0% New Order 761,516 1,384
    Payment 761,518
    Order Status 76,151
    Delivery 76,151
    Stock Level 76,150
    Customer Report 761,514
    Active Idle New Order 0 1,384
    Payment 0
    Order Status 0
    Delivery 0
    Stock Level 0
    Customer Report 0
