New H3C Technologies Co., Ltd. H3C UniServer R4900 G5 ssj_ops@100% = 105,342
Test Sponsor: New H3C Technologies Co., Ltd. SPEC License #: 9066 Test Method: Single Node
Tested By: New H3C Technologies Co., Ltd. Test Location: Hangzhou, Zhejiang, China Test Date: Oct 9, 2021
Hardware Availability: May-2021 Software Availability: Jul-2021 Publication: Oct 28, 2021
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     104,700
Calibration 2     105,549
Calibration 3     105,756
ssj_ops@calibrated=105,652
100% 99.7% 105,652 105,342
90% 90.2% 95,087 95,282
80% 80.0% 84,522 84,546
70% 69.9% 73,957 73,814
60% 60.0% 63,391 63,374
50% 49.7% 52,826 52,527
40% 39.6% 42,261 41,807
30% 29.9% 31,696 31,540
20% 20.3% 21,130 21,434
10% 10.2% 10,565 10,750
Active Idle   0 0

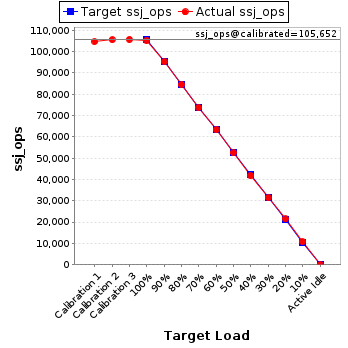

Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: System Under Test
# of Identical Nodes: 1
Comment: SUT
Hardware
Hardware Vendor: New H3C Technologies Co., Ltd.
Model: H3C UniServer R4900 G5
Form Factor: 2U
CPU Name: Intel Xeon Platinum 8380 2.3GHz
CPU Characteristics: 2.3 GHz, 40 core, 60MB L3 cache
CPU Frequency (MHz): 2300
CPU(s) Enabled: 80 cores, 2 chips, 40 cores/chip
Hardware Threads: 160 (2 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 32 KB I + 48 KB D on chip per core
Secondary Cache: 1280 KB I+D on chip per chip
Tertiary Cache: 60 MB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 256
# and size of DIMM: 16 x 16 GB
Memory Details: 16 GB 2Rx8 PC4-3200AA-RE2-12; slots 1, 3, 5, 7, 10, 12, 14, 16 populated in each Socket
Power Supply Quantity and Rating (W): 1 x 850
Power Supply Details: 1 X DELTA DPS-850AB-11A PN:IRHD2111000036
Disk Drive: 1 x Intel M.2 SSD 240GB SSDSCKKB240GZ,PN:PHYK115400HH240A
Disk Controller: Integrated SATA controller
# and type of Network Interface Cards (NICs) Installed: 1 x H3C 4-Port 1GE OCP3.0 Adapter
NICs Enabled in Firmware / OS / Connected: 4/4/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Balanced Mode Enabled In OS (see SUT Notes)
Operating System (OS): Windows Server 2019 Datacenter
OS Version: Version 1809(OS Build 17763.1)
Filesystem: NTFS
JVM Vendor: Oracle Corporation
JVM Version: Oracle Java HotSpot(TM) 64-bit Server VM 18.9 (build 11.0.9+7-LTS,mixed mode)
JVM Command-line Options: set JAVAOPTIONS_SSJ=-server -Xmn1700m -Xms1950m -Xmx1950m -XX:SurvivorRatio=1 -XX:TargetSurvivorRatio=99 -XX:ParallelGCThreads=2 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=4 -XX:LoopUnrollLimit=45 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:InlineSmallCode=3900 -XX:MaxInlineSize=270 -XX:FreqInlineSize=2500 -XX:+UseLargePages -XX:+UseParallelOldGC -XX:UseAVX=1 -XX:-UseAdaptiveSizePolicy -XX:-ThreadLocalHandshakes
JVM Affinity: start /node [0,1,2,3] /affinity [3,C,30,C0,300,C00,3000,C000,30000,C0000,300000,C00000,3000000,C000000,30000000,C0000000,300000000,C00000000,3000000000,C000000000]
JVM Instances: 80
JVM Initial Heap (MB): 1950
JVM Maximum Heap (MB): 1950
JVM Address Bits: 64
Boot Firmware Version: 5.30.00
Management Firmware Version: 2.60.00
Workload Version: SSJ 1.2.10
Director Location: Controller
Other Software: Microsoft Windows KB4072698
Boot Firmware Settings
  • Degrade Precedence: Feature Precedence
  • UPI Link Frequency Select: 9.6GT/s
  • Patrol Scrub: Disabled
  • Hardware Prefetcher: Disabled
  • Adjacent Cache Prefetch: Disabled
  • DCU Streamer Prefetcher: Disabled
  • Memory Frequency: 2400
  • Turbo Mode: Disabled
  • CPU C6 Report: Enabled
  • Package C State: C6(non Retention state)
  • SNC (Sub NUMA): Enable SNC2(2-clusters)
    • Management Firmware Settings
    none
    System Under Test Notes
    Notes
    None
    Performance Details
    Target Load Actual Load Transaction Type Count Total Heap (MB)
    Calibration 1 New Order 7,627,021 1,384
    Payment 7,627,016
    Order Status 762,701
    Delivery 762,703
    Stock Level 762,703
    Customer Report 7,627,011
    Calibration 2 New Order 7,682,353 1,384
    Payment 7,682,355
    Order Status 768,235
    Delivery 768,236
    Stock Level 768,235
    Customer Report 7,682,349
    Calibration 3 New Order 7,692,714 1,384
    Payment 7,692,717
    Order Status 769,271
    Delivery 769,271
    Stock Level 769,271
    Customer Report 7,692,712
    100% 99.7% New Order 7,664,341 1,384
    Payment 7,664,340
    Order Status 766,435
    Delivery 766,433
    Stock Level 766,435
    Customer Report 7,664,342
    90% 90.2% New Order 6,930,820 1,384
    Payment 6,930,814
    Order Status 693,081
    Delivery 693,082
    Stock Level 693,081
    Customer Report 6,930,816
    80% 80.0% New Order 6,150,469 1,384
    Payment 6,150,476
    Order Status 615,048
    Delivery 615,046
    Stock Level 615,047
    Customer Report 6,150,469
    70% 69.9% New Order 5,370,761 1,384
    Payment 5,370,760
    Order Status 537,075
    Delivery 537,077
    Stock Level 537,076
    Customer Report 5,370,760
    60% 60.0% New Order 4,609,357 1,384
    Payment 4,609,356
    Order Status 460,935
    Delivery 460,936
    Stock Level 460,935
    Customer Report 4,609,355
    50% 49.7% New Order 3,820,273 1,384
    Payment 3,820,271
    Order Status 382,027
    Delivery 382,028
    Stock Level 382,027
    Customer Report 3,820,274
    40% 39.6% New Order 3,040,617 1,384
    Payment 3,040,618
    Order Status 304,062
    Delivery 304,062
    Stock Level 304,061
    Customer Report 3,040,615
    30% 29.9% New Order 2,293,866 1,384
    Payment 2,293,871
    Order Status 229,387
    Delivery 229,388
    Stock Level 229,386
    Customer Report 2,293,871
    20% 20.3% New Order 1,558,857 1,384
    Payment 1,558,858
    Order Status 155,885
    Delivery 155,887
    Stock Level 155,885
    Customer Report 1,558,853
    10% 10.2% New Order 781,887 1,384
    Payment 781,893
    Order Status 78,190
    Delivery 78,189
    Stock Level 78,189
    Customer Report 781,885
    Active Idle New Order 0 1,384
    Payment 0
    Order Status 0
    Delivery 0
    Stock Level 0
    Customer Report 0
