New H3C Technologies Co., Ltd. H3C UniServer R4900 G5 | ssj_ops@100% = 99,916 | ||||
Test Sponsor: | New H3C Technologies Co., Ltd. | SPEC License #: | 9066 | Test Method: | Single Node |
Tested By: | New H3C Technologies Co., Ltd. | Test Location: | Hangzhou, Zhejiang, China | Test Date: | Oct 9, 2021 |
Hardware Availability: | May-2021 | Software Availability: | Jul-2021 | Publication: | Oct 28, 2021 |
System Source: | Single Supplier | System Designation: | Server | Power Provisioning: | Line-powered |

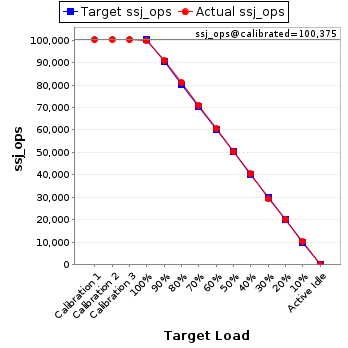

Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 100,290 | ||
Calibration 2 | 100,400 | ||
Calibration 3 | 100,351 | ||
ssj_ops@calibrated=100,375 | |||
100% | 99.5% | 100,375 | 99,916 |
90% | 90.7% | 90,338 | 91,066 |
80% | 80.9% | 80,300 | 81,247 |
70% | 70.7% | 70,263 | 70,984 |
60% | 60.4% | 60,225 | 60,579 |
50% | 50.2% | 50,188 | 50,416 |
40% | 40.2% | 40,150 | 40,388 |
30% | 29.4% | 30,113 | 29,514 |
20% | 20.2% | 20,075 | 20,282 |
10% | 10.1% | 10,038 | 10,146 |
Active Idle | 0 | 0 |
Set Identifier: | sut |
Set Description: | System Under Test |
# of Identical Nodes: | 1 |
Comment: | SUT |
Hardware | |
---|---|
Hardware Vendor: | New H3C Technologies Co., Ltd. |
Model: | H3C UniServer R4900 G5 |
Form Factor: | 2U |
CPU Name: | Intel Xeon Platinum 8380 2.3GHz |
CPU Characteristics: | 2.3 GHz, 40 core, 60MB L3 cache |
CPU Frequency (MHz): | 2300 |
CPU(s) Enabled: | 80 cores, 2 chips, 40 cores/chip |
Hardware Threads: | 160 (2 / core) |
CPU(s) Orderable: | 1,2 chips |
Primary Cache: | 32 KB I + 48 KB D on chip per core |
Secondary Cache: | 1280 KB I+D on chip per chip |
Tertiary Cache: | 60 MB I+D on chip per chip |
Other Cache: | None |
Memory Amount (GB): | 256 |
# and size of DIMM: | 16 x 16 GB |
Memory Details: | 16 GB 2Rx8 PC4-3200AA-RE2-12; slots 1, 3, 5, 7, 10, 12, 14, 16 populated in each Socket |
Power Supply Quantity and Rating (W): | 1 x 850 |
Power Supply Details: | 1 X DELTA DPS-850AB-11A PN:IRHD2111000036 |
Disk Drive: | 1 x Intel M.2 SSD 240GB SSDSCKKB240GZ,PN:PHYK115400HH240A |
Disk Controller: | Integrated SATA controller |
# and type of Network Interface Cards (NICs) Installed: | 1 x H3C 4-Port 1GE OCP3.0 Adapter |
NICs Enabled in Firmware / OS / Connected: | 4/4/1 |
Network Speed (Mbit): | 1000 |
Keyboard: | None |
Mouse: | None |
Monitor: | None |
Optical Drives: | No |
Other Hardware: | None |
Software | |
---|---|
Power Management: | Balanced Mode Enabled In OS (see SUT Notes) |
Operating System (OS): | Windows Server 2019 Datacenter |
OS Version: | Version 1809(OS Build 17763.1) |
Filesystem: | NTFS |
JVM Vendor: | Oracle Corporation |
JVM Version: | Oracle Java HotSpot(TM) 64-bit Server VM 18.9 (build 11.0.9+7-LTS,mixed mode) |
JVM Command-line Options: | set JAVAOPTIONS_SSJ=-server -Xmn1700m -Xms1950m -Xmx1950m -XX:SurvivorRatio=1 -XX:TargetSurvivorRatio=99 -XX:ParallelGCThreads=2 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=4 -XX:LoopUnrollLimit=45 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:InlineSmallCode=3900 -XX:MaxInlineSize=270 -XX:FreqInlineSize=2500 -XX:+UseLargePages -XX:+UseParallelOldGC -XX:UseAVX=1 -XX:-UseAdaptiveSizePolicy -XX:-ThreadLocalHandshakes |
JVM Affinity: | start /node [0,1,2,3] /affinity [3,C,30,C0,300,C00,3000,C000,30000,C0000,300000,C00000,3000000,C000000,30000000,C0000000,300000000,C00000000,3000000000,C000000000] |
JVM Instances: | 80 |
JVM Initial Heap (MB): | 1950 |
JVM Maximum Heap (MB): | 1950 |
JVM Address Bits: | 64 |
Boot Firmware Version: | 5.30.00 |
Management Firmware Version: | 2.60.00 |
Workload Version: | SSJ 1.2.10 |
Director Location: | Controller |
Other Software: | Microsoft Windows KB4072698 |
Target Load | Actual Load | Transaction Type | Count | Total Heap (MB) |
---|---|---|---|---|
Calibration 1 | New Order | 7,305,799 | 1,384 | |
Payment | 7,305,797 | |||
Order Status | 730,581 | |||
Delivery | 730,580 | |||
Stock Level | 730,579 | |||
Customer Report | 7,305,800 | |||
Calibration 2 | New Order | 7,302,348 | 1,384 | |
Payment | 7,302,348 | |||
Order Status | 730,234 | |||
Delivery | 730,234 | |||
Stock Level | 730,235 | |||
Customer Report | 7,302,347 | |||
Calibration 3 | New Order | 7,300,233 | 1,384 | |
Payment | 7,300,232 | |||
Order Status | 730,024 | |||
Delivery | 730,022 | |||
Stock Level | 730,023 | |||
Customer Report | 7,300,232 | |||
100% | 99.5% | New Order | 7,272,360 | 1,384 |
Payment | 7,272,360 | |||
Order Status | 727,237 | |||
Delivery | 727,235 | |||
Stock Level | 727,237 | |||
Customer Report | 7,272,365 | |||
90% | 90.7% | New Order | 6,625,626 | 1,384 |
Payment | 6,625,627 | |||
Order Status | 662,563 | |||
Delivery | 662,562 | |||
Stock Level | 662,563 | |||
Customer Report | 6,625,624 | |||
80% | 80.9% | New Order | 5,910,445 | 1,384 |
Payment | 5,910,453 | |||
Order Status | 591,044 | |||
Delivery | 591,045 | |||
Stock Level | 591,044 | |||
Customer Report | 5,910,444 | |||
70% | 70.7% | New Order | 5,163,897 | 1,384 |
Payment | 5,163,897 | |||
Order Status | 516,389 | |||
Delivery | 516,391 | |||
Stock Level | 516,389 | |||
Customer Report | 5,163,901 | |||
60% | 60.4% | New Order | 4,406,681 | 1,384 |
Payment | 4,406,677 | |||
Order Status | 440,667 | |||
Delivery | 440,667 | |||
Stock Level | 440,666 | |||
Customer Report | 4,406,681 | |||
50% | 50.2% | New Order | 3,666,872 | 1,384 |
Payment | 3,666,874 | |||
Order Status | 366,687 | |||
Delivery | 366,689 | |||
Stock Level | 366,687 | |||
Customer Report | 3,666,875 | |||
40% | 40.2% | New Order | 2,937,485 | 1,384 |
Payment | 2,937,481 | |||
Order Status | 293,749 | |||
Delivery | 293,748 | |||
Stock Level | 293,749 | |||
Customer Report | 2,937,487 | |||
30% | 29.4% | New Order | 2,146,551 | 1,384 |
Payment | 2,146,551 | |||
Order Status | 214,655 | |||
Delivery | 214,654 | |||
Stock Level | 214,654 | |||
Customer Report | 2,146,542 | |||
20% | 20.2% | New Order | 1,475,149 | 1,384 |
Payment | 1,475,154 | |||
Order Status | 147,516 | |||
Delivery | 147,515 | |||
Stock Level | 147,516 | |||
Customer Report | 1,475,150 | |||
10% | 10.1% | New Order | 737,881 | 1,384 |
Payment | 737,877 | |||
Order Status | 73,788 | |||
Delivery | 73,788 | |||
Stock Level | 73,788 | |||
Customer Report | 737,878 | |||
Active Idle | New Order | 0 | 1,384 | |
Payment | 0 | |||
Order Status | 0 | |||
Delivery | 0 | |||
Stock Level | 0 | |||
Customer Report | 0 |
