New H3C Technologies Co., Ltd. H3C UniServer R4900 G5 ssj_ops@100% = 100,839
Test Sponsor: New H3C Technologies Co., Ltd. SPEC License #: 9066 Test Method: Single Node
Tested By: New H3C Technologies Co., Ltd. Test Location: Hangzhou, Zhejiang, China Test Date: Oct 9, 2021
Hardware Availability: May-2021 Software Availability: Jul-2021 Publication: Oct 28, 2021
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     100,935
Calibration 2     101,372
Calibration 3     101,511
ssj_ops@calibrated=101,442
100% 99.4% 101,442 100,839
90% 90.4% 91,297 91,717
80% 80.6% 81,153 81,779
70% 69.5% 71,009 70,469
60% 60.0% 60,865 60,863
50% 50.1% 50,721 50,853
40% 39.7% 40,577 40,232
30% 29.9% 30,432 30,296
20% 20.2% 20,288 20,516
10% 9.4% 10,144 9,533
Active Idle   0 0

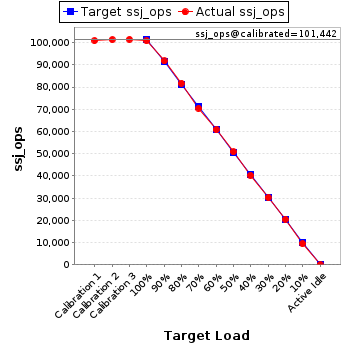

Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: System Under Test
# of Identical Nodes: 1
Comment: SUT
Hardware
Hardware Vendor: New H3C Technologies Co., Ltd.
Model: H3C UniServer R4900 G5
Form Factor: 2U
CPU Name: Intel Xeon Platinum 8380 2.3GHz
CPU Characteristics: 2.3 GHz, 40 core, 60MB L3 cache
CPU Frequency (MHz): 2300
CPU(s) Enabled: 80 cores, 2 chips, 40 cores/chip
Hardware Threads: 160 (2 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 32 KB I + 48 KB D on chip per core
Secondary Cache: 1280 KB I+D on chip per chip
Tertiary Cache: 60 MB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 256
# and size of DIMM: 16 x 16 GB
Memory Details: 16 GB 2Rx8 PC4-3200AA-RE2-12; slots 1, 3, 5, 7, 10, 12, 14, 16 populated in each Socket
Power Supply Quantity and Rating (W): 1 x 850
Power Supply Details: 1 X DELTA DPS-850AB-11A PN:IRHD2111000036
Disk Drive: 1 x Intel M.2 SSD 240GB SSDSCKKB240GZ,PN:PHYK115400HH240A
Disk Controller: Integrated SATA controller
# and type of Network Interface Cards (NICs) Installed: 1 x H3C 4-Port 1GE OCP3.0 Adapter
NICs Enabled in Firmware / OS / Connected: 4/4/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Balanced Mode Enabled In OS (see SUT Notes)
Operating System (OS): Windows Server 2019 Datacenter
OS Version: Version 1809(OS Build 17763.1)
Filesystem: NTFS
JVM Vendor: Oracle Corporation
JVM Version: Oracle Java HotSpot(TM) 64-bit Server VM 18.9 (build 11.0.9+7-LTS,mixed mode)
JVM Command-line Options: set JAVAOPTIONS_SSJ=-server -Xmn1700m -Xms1950m -Xmx1950m -XX:SurvivorRatio=1 -XX:TargetSurvivorRatio=99 -XX:ParallelGCThreads=2 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=4 -XX:LoopUnrollLimit=45 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:InlineSmallCode=3900 -XX:MaxInlineSize=270 -XX:FreqInlineSize=2500 -XX:+UseLargePages -XX:+UseParallelOldGC -XX:UseAVX=1 -XX:-UseAdaptiveSizePolicy -XX:-ThreadLocalHandshakes
JVM Affinity: start /node [0,1,2,3] /affinity [3,C,30,C0,300,C00,3000,C000,30000,C0000,300000,C00000,3000000,C000000,30000000,C0000000,300000000,C00000000,3000000000,C000000000]
JVM Instances: 80
JVM Initial Heap (MB): 1950
JVM Maximum Heap (MB): 1950
JVM Address Bits: 64
Boot Firmware Version: 5.30.00
Management Firmware Version: 2.60.00
Workload Version: SSJ 1.2.10
Director Location: Controller
Other Software: Microsoft Windows KB4072698
Boot Firmware Settings
  • Degrade Precedence: Feature Precedence
  • UPI Link Frequency Select: 9.6GT/s
  • Patrol Scrub: Disabled
  • Hardware Prefetcher: Disabled
  • Adjacent Cache Prefetch: Disabled
  • DCU Streamer Prefetcher: Disabled
  • Memory Frequency: 2400
  • Turbo Mode: Disabled
  • CPU C6 Report: Enabled
  • Package C State: C6(non Retention state)
  • SNC (Sub NUMA): Enable SNC2(2-clusters)
    • Management Firmware Settings
    none
    System Under Test Notes
    Notes
    None
    Performance Details
    Target Load Actual Load Transaction Type Count Total Heap (MB)
    Calibration 1 New Order 7,349,395 1,384
    Payment 7,349,397
    Order Status 734,939
    Delivery 734,939
    Stock Level 734,939
    Customer Report 7,349,393
    Calibration 2 New Order 7,374,369 1,384
    Payment 7,374,373
    Order Status 737,437
    Delivery 737,438
    Stock Level 737,438
    Customer Report 7,374,369
    Calibration 3 New Order 7,384,152 1,384
    Payment 7,384,156
    Order Status 738,415
    Delivery 738,416
    Stock Level 738,417
    Customer Report 7,384,158
    100% 99.4% New Order 7,336,572 1,384
    Payment 7,336,566
    Order Status 733,657
    Delivery 733,655
    Stock Level 733,655
    Customer Report 7,336,570
    90% 90.4% New Order 6,673,878 1,384
    Payment 6,673,879
    Order Status 667,388
    Delivery 667,387
    Stock Level 667,389
    Customer Report 6,673,877
    80% 80.6% New Order 5,947,816 1,384
    Payment 5,947,814
    Order Status 594,783
    Delivery 594,781
    Stock Level 594,782
    Customer Report 5,947,817
    70% 69.5% New Order 5,127,704 1,384
    Payment 5,127,706
    Order Status 512,771
    Delivery 512,770
    Stock Level 512,771
    Customer Report 5,127,707
    60% 60.0% New Order 4,427,519 1,384
    Payment 4,427,517
    Order Status 442,751
    Delivery 442,752
    Stock Level 442,751
    Customer Report 4,427,512
    50% 50.1% New Order 3,698,461 1,384
    Payment 3,698,457
    Order Status 369,847
    Delivery 369,846
    Stock Level 369,846
    Customer Report 3,698,461
    40% 39.7% New Order 2,926,115 1,384
    Payment 2,926,118
    Order Status 292,612
    Delivery 292,611
    Stock Level 292,613
    Customer Report 2,926,123
    30% 29.9% New Order 2,203,558 1,384
    Payment 2,203,555
    Order Status 220,355
    Delivery 220,355
    Stock Level 220,355
    Customer Report 2,203,550
    20% 20.2% New Order 1,492,122 1,384
    Payment 1,492,120
    Order Status 149,213
    Delivery 149,212
    Stock Level 149,212
    Customer Report 1,492,121
    10% 9.4% New Order 693,338 1,384
    Payment 693,330
    Order Status 69,334
    Delivery 69,334
    Stock Level 69,335
    Customer Report 693,329
    Active Idle New Order 0 1,384
    Payment 0
    Order Status 0
    Delivery 0
    Stock Level 0
    Customer Report 0
