New H3C Technologies Co., Ltd. H3C UniServer R4900 G5 | ssj_ops@100% = 101,925 | ||||
Test Sponsor: | New H3C Technologies Co., Ltd. | SPEC License #: | 9066 | Test Method: | Single Node |
Tested By: | New H3C Technologies Co., Ltd. | Test Location: | Hangzhou, Zhejiang, China | Test Date: | Oct 9, 2021 |
Hardware Availability: | May-2021 | Software Availability: | Jul-2021 | Publication: | Oct 28, 2021 |
System Source: | Single Supplier | System Designation: | Server | Power Provisioning: | Line-powered |

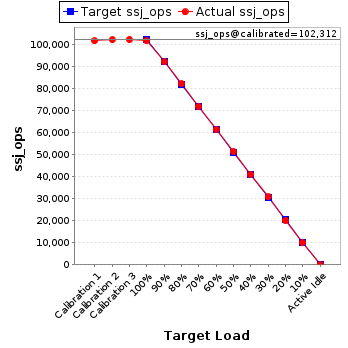

Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 101,653 | ||
Calibration 2 | 102,231 | ||
Calibration 3 | 102,393 | ||
ssj_ops@calibrated=102,312 | |||
100% | 99.6% | 102,312 | 101,925 |
90% | 90.1% | 92,081 | 92,208 |
80% | 80.4% | 81,850 | 82,251 |
70% | 70.4% | 71,619 | 72,001 |
60% | 60.2% | 61,387 | 61,555 |
50% | 50.3% | 51,156 | 51,463 |
40% | 40.1% | 40,925 | 41,072 |
30% | 30.1% | 30,694 | 30,784 |
20% | 19.7% | 20,462 | 20,166 |
10% | 9.9% | 10,231 | 10,084 |
Active Idle | 0 | 0 |
Set Identifier: | sut |
Set Description: | System Under Test |
# of Identical Nodes: | 1 |
Comment: | SUT |
Hardware | |
---|---|
Hardware Vendor: | New H3C Technologies Co., Ltd. |
Model: | H3C UniServer R4900 G5 |
Form Factor: | 2U |
CPU Name: | Intel Xeon Platinum 8380 2.3GHz |
CPU Characteristics: | 2.3 GHz, 40 core, 60MB L3 cache |
CPU Frequency (MHz): | 2300 |
CPU(s) Enabled: | 80 cores, 2 chips, 40 cores/chip |
Hardware Threads: | 160 (2 / core) |
CPU(s) Orderable: | 1,2 chips |
Primary Cache: | 32 KB I + 48 KB D on chip per core |
Secondary Cache: | 1280 KB I+D on chip per chip |
Tertiary Cache: | 60 MB I+D on chip per chip |
Other Cache: | None |
Memory Amount (GB): | 256 |
# and size of DIMM: | 16 x 16 GB |
Memory Details: | 16 GB 2Rx8 PC4-3200AA-RE2-12; slots 1, 3, 5, 7, 10, 12, 14, 16 populated in each Socket |
Power Supply Quantity and Rating (W): | 1 x 850 |
Power Supply Details: | 1 X DELTA DPS-850AB-11A PN:IRHD2111000036 |
Disk Drive: | 1 x Intel M.2 SSD 240GB SSDSCKKB240GZ,PN:PHYK115400HH240A |
Disk Controller: | Integrated SATA controller |
# and type of Network Interface Cards (NICs) Installed: | 1 x H3C 4-Port 1GE OCP3.0 Adapter |
NICs Enabled in Firmware / OS / Connected: | 4/4/1 |
Network Speed (Mbit): | 1000 |
Keyboard: | None |
Mouse: | None |
Monitor: | None |
Optical Drives: | No |
Other Hardware: | None |
Software | |
---|---|
Power Management: | Balanced Mode Enabled In OS (see SUT Notes) |
Operating System (OS): | Windows Server 2019 Datacenter |
OS Version: | Version 1809(OS Build 17763.1) |
Filesystem: | NTFS |
JVM Vendor: | Oracle Corporation |
JVM Version: | Oracle Java HotSpot(TM) 64-bit Server VM 18.9 (build 11.0.9+7-LTS,mixed mode) |
JVM Command-line Options: | set JAVAOPTIONS_SSJ=-server -Xmn1700m -Xms1950m -Xmx1950m -XX:SurvivorRatio=1 -XX:TargetSurvivorRatio=99 -XX:ParallelGCThreads=2 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=4 -XX:LoopUnrollLimit=45 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:InlineSmallCode=3900 -XX:MaxInlineSize=270 -XX:FreqInlineSize=2500 -XX:+UseLargePages -XX:+UseParallelOldGC -XX:UseAVX=1 -XX:-UseAdaptiveSizePolicy -XX:-ThreadLocalHandshakes |
JVM Affinity: | start /node [0,1,2,3] /affinity [3,C,30,C0,300,C00,3000,C000,30000,C0000,300000,C00000,3000000,C000000,30000000,C0000000,300000000,C00000000,3000000000,C000000000] |
JVM Instances: | 80 |
JVM Initial Heap (MB): | 1950 |
JVM Maximum Heap (MB): | 1950 |
JVM Address Bits: | 64 |
Boot Firmware Version: | 5.30.00 |
Management Firmware Version: | 2.60.00 |
Workload Version: | SSJ 1.2.10 |
Director Location: | Controller |
Other Software: | Microsoft Windows KB4072698 |
Target Load | Actual Load | Transaction Type | Count | Total Heap (MB) |
---|---|---|---|---|
Calibration 1 | New Order | 7,406,998 | 1,384 | |
Payment | 7,406,999 | |||
Order Status | 740,699 | |||
Delivery | 740,700 | |||
Stock Level | 740,700 | |||
Customer Report | 7,407,003 | |||
Calibration 2 | New Order | 7,438,930 | 1,384 | |
Payment | 7,438,931 | |||
Order Status | 743,893 | |||
Delivery | 743,893 | |||
Stock Level | 743,892 | |||
Customer Report | 7,438,931 | |||
Calibration 3 | New Order | 7,457,182 | 1,384 | |
Payment | 7,457,181 | |||
Order Status | 745,717 | |||
Delivery | 745,719 | |||
Stock Level | 745,719 | |||
Customer Report | 7,457,181 | |||
100% | 99.6% | New Order | 7,420,608 | 1,384 |
Payment | 7,420,607 | |||
Order Status | 742,061 | |||
Delivery | 742,061 | |||
Stock Level | 742,061 | |||
Customer Report | 7,420,610 | |||
90% | 90.1% | New Order | 6,711,306 | 1,384 |
Payment | 6,711,306 | |||
Order Status | 671,129 | |||
Delivery | 671,129 | |||
Stock Level | 671,130 | |||
Customer Report | 6,711,307 | |||
80% | 80.4% | New Order | 5,983,301 | 1,384 |
Payment | 5,983,307 | |||
Order Status | 598,330 | |||
Delivery | 598,330 | |||
Stock Level | 598,331 | |||
Customer Report | 5,983,304 | |||
70% | 70.4% | New Order | 5,237,374 | 1,384 |
Payment | 5,237,376 | |||
Order Status | 523,738 | |||
Delivery | 523,739 | |||
Stock Level | 523,737 | |||
Customer Report | 5,237,375 | |||
60% | 60.2% | New Order | 4,477,199 | 1,384 |
Payment | 4,477,197 | |||
Order Status | 447,719 | |||
Delivery | 447,720 | |||
Stock Level | 447,719 | |||
Customer Report | 4,477,200 | |||
50% | 50.3% | New Order | 3,743,968 | 1,384 |
Payment | 3,743,975 | |||
Order Status | 374,398 | |||
Delivery | 374,397 | |||
Stock Level | 374,398 | |||
Customer Report | 3,743,972 | |||
40% | 40.1% | New Order | 2,987,092 | 1,384 |
Payment | 2,987,091 | |||
Order Status | 298,709 | |||
Delivery | 298,709 | |||
Stock Level | 298,709 | |||
Customer Report | 2,987,090 | |||
30% | 30.1% | New Order | 2,238,962 | 1,384 |
Payment | 2,238,953 | |||
Order Status | 223,896 | |||
Delivery | 223,895 | |||
Stock Level | 223,895 | |||
Customer Report | 2,238,953 | |||
20% | 19.7% | New Order | 1,466,657 | 1,384 |
Payment | 1,466,653 | |||
Order Status | 146,666 | |||
Delivery | 146,665 | |||
Stock Level | 146,666 | |||
Customer Report | 1,466,657 | |||
10% | 9.9% | New Order | 733,398 | 1,384 |
Payment | 733,399 | |||
Order Status | 73,340 | |||
Delivery | 73,340 | |||
Stock Level | 73,341 | |||
Customer Report | 733,397 | |||
Active Idle | New Order | 0 | 1,384 | |
Payment | 0 | |||
Order Status | 0 | |||
Delivery | 0 | |||
Stock Level | 0 | |||
Customer Report | 0 |
