New H3C Technologies Co., Ltd. H3C UniServer R4900 G5 | ssj_ops@100% = 100,751 | ||||
Test Sponsor: | New H3C Technologies Co., Ltd. | SPEC License #: | 9066 | Test Method: | Single Node |
Tested By: | New H3C Technologies Co., Ltd. | Test Location: | Hangzhou, Zhejiang, China | Test Date: | Oct 9, 2021 |
Hardware Availability: | May-2021 | Software Availability: | Jul-2021 | Publication: | Oct 28, 2021 |
System Source: | Single Supplier | System Designation: | Server | Power Provisioning: | Line-powered |

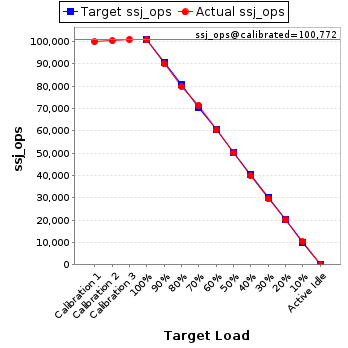

Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 100,023 | ||
Calibration 2 | 100,475 | ||
Calibration 3 | 101,069 | ||
ssj_ops@calibrated=100,772 | |||
100% | 100.0% | 100,772 | 100,751 |
90% | 89.3% | 90,695 | 89,997 |
80% | 79.4% | 80,618 | 79,990 |
70% | 71.0% | 70,540 | 71,533 |
60% | 60.0% | 60,463 | 60,486 |
50% | 49.7% | 50,386 | 50,069 |
40% | 39.7% | 40,309 | 39,967 |
30% | 29.4% | 30,232 | 29,594 |
20% | 19.9% | 20,154 | 20,028 |
10% | 10.2% | 10,077 | 10,266 |
Active Idle | 0 | 0 |
Set Identifier: | sut |
Set Description: | System Under Test |
# of Identical Nodes: | 1 |
Comment: | SUT |
Hardware | |
---|---|
Hardware Vendor: | New H3C Technologies Co., Ltd. |
Model: | H3C UniServer R4900 G5 |
Form Factor: | 2U |
CPU Name: | Intel Xeon Platinum 8380 2.3GHz |
CPU Characteristics: | 2.3 GHz, 40 core, 60MB L3 cache |
CPU Frequency (MHz): | 2300 |
CPU(s) Enabled: | 80 cores, 2 chips, 40 cores/chip |
Hardware Threads: | 160 (2 / core) |
CPU(s) Orderable: | 1,2 chips |
Primary Cache: | 32 KB I + 48 KB D on chip per core |
Secondary Cache: | 1280 KB I+D on chip per chip |
Tertiary Cache: | 60 MB I+D on chip per chip |
Other Cache: | None |
Memory Amount (GB): | 256 |
# and size of DIMM: | 16 x 16 GB |
Memory Details: | 16 GB 2Rx8 PC4-3200AA-RE2-12; slots 1, 3, 5, 7, 10, 12, 14, 16 populated in each Socket |
Power Supply Quantity and Rating (W): | 1 x 850 |
Power Supply Details: | 1 X DELTA DPS-850AB-11A PN:IRHD2111000036 |
Disk Drive: | 1 x Intel M.2 SSD 240GB SSDSCKKB240GZ,PN:PHYK115400HH240A |
Disk Controller: | Integrated SATA controller |
# and type of Network Interface Cards (NICs) Installed: | 1 x H3C 4-Port 1GE OCP3.0 Adapter |
NICs Enabled in Firmware / OS / Connected: | 4/4/1 |
Network Speed (Mbit): | 1000 |
Keyboard: | None |
Mouse: | None |
Monitor: | None |
Optical Drives: | No |
Other Hardware: | None |
Software | |
---|---|
Power Management: | Balanced Mode Enabled In OS (see SUT Notes) |
Operating System (OS): | Windows Server 2019 Datacenter |
OS Version: | Version 1809(OS Build 17763.1) |
Filesystem: | NTFS |
JVM Vendor: | Oracle Corporation |
JVM Version: | Oracle Java HotSpot(TM) 64-bit Server VM 18.9 (build 11.0.9+7-LTS,mixed mode) |
JVM Command-line Options: | set JAVAOPTIONS_SSJ=-server -Xmn1700m -Xms1950m -Xmx1950m -XX:SurvivorRatio=1 -XX:TargetSurvivorRatio=99 -XX:ParallelGCThreads=2 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=4 -XX:LoopUnrollLimit=45 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:InlineSmallCode=3900 -XX:MaxInlineSize=270 -XX:FreqInlineSize=2500 -XX:+UseLargePages -XX:+UseParallelOldGC -XX:UseAVX=1 -XX:-UseAdaptiveSizePolicy -XX:-ThreadLocalHandshakes |
JVM Affinity: | start /node [0,1,2,3] /affinity [3,C,30,C0,300,C00,3000,C000,30000,C0000,300000,C00000,3000000,C000000,30000000,C0000000,300000000,C00000000,3000000000,C000000000] |
JVM Instances: | 80 |
JVM Initial Heap (MB): | 1950 |
JVM Maximum Heap (MB): | 1950 |
JVM Address Bits: | 64 |
Boot Firmware Version: | 5.30.00 |
Management Firmware Version: | 2.60.00 |
Workload Version: | SSJ 1.2.10 |
Director Location: | Controller |
Other Software: | Microsoft Windows KB4072698 |
Target Load | Actual Load | Transaction Type | Count | Total Heap (MB) |
---|---|---|---|---|
Calibration 1 | New Order | 7,279,455 | 1,384 | |
Payment | 7,279,453 | |||
Order Status | 727,946 | |||
Delivery | 727,945 | |||
Stock Level | 727,945 | |||
Customer Report | 7,279,456 | |||
Calibration 2 | New Order | 7,313,043 | 1,384 | |
Payment | 7,313,044 | |||
Order Status | 731,305 | |||
Delivery | 731,304 | |||
Stock Level | 731,305 | |||
Customer Report | 7,313,048 | |||
Calibration 3 | New Order | 7,351,054 | 1,384 | |
Payment | 7,351,061 | |||
Order Status | 735,108 | |||
Delivery | 735,105 | |||
Stock Level | 735,106 | |||
Customer Report | 7,351,062 | |||
100% | 100.0% | New Order | 7,327,433 | 1,384 |
Payment | 7,327,427 | |||
Order Status | 732,743 | |||
Delivery | 732,742 | |||
Stock Level | 732,742 | |||
Customer Report | 7,327,425 | |||
90% | 89.3% | New Order | 6,551,621 | 1,384 |
Payment | 6,551,614 | |||
Order Status | 655,162 | |||
Delivery | 655,160 | |||
Stock Level | 655,161 | |||
Customer Report | 6,551,620 | |||
80% | 79.4% | New Order | 5,821,330 | 1,384 |
Payment | 5,821,333 | |||
Order Status | 582,133 | |||
Delivery | 582,132 | |||
Stock Level | 582,133 | |||
Customer Report | 5,821,335 | |||
70% | 71.0% | New Order | 5,203,791 | 1,384 |
Payment | 5,203,795 | |||
Order Status | 520,378 | |||
Delivery | 520,378 | |||
Stock Level | 520,380 | |||
Customer Report | 5,203,792 | |||
60% | 60.0% | New Order | 4,399,128 | 1,384 |
Payment | 4,399,126 | |||
Order Status | 439,913 | |||
Delivery | 439,913 | |||
Stock Level | 439,914 | |||
Customer Report | 4,399,132 | |||
50% | 49.7% | New Order | 3,642,599 | 1,384 |
Payment | 3,642,601 | |||
Order Status | 364,259 | |||
Delivery | 364,261 | |||
Stock Level | 364,260 | |||
Customer Report | 3,642,600 | |||
40% | 39.7% | New Order | 2,906,782 | 1,384 |
Payment | 2,906,784 | |||
Order Status | 290,679 | |||
Delivery | 290,679 | |||
Stock Level | 290,678 | |||
Customer Report | 2,906,783 | |||
30% | 29.4% | New Order | 2,152,421 | 1,384 |
Payment | 2,152,425 | |||
Order Status | 215,242 | |||
Delivery | 215,243 | |||
Stock Level | 215,242 | |||
Customer Report | 2,152,427 | |||
20% | 19.9% | New Order | 1,456,641 | 1,384 |
Payment | 1,456,643 | |||
Order Status | 145,665 | |||
Delivery | 145,665 | |||
Stock Level | 145,664 | |||
Customer Report | 1,456,636 | |||
10% | 10.2% | New Order | 746,664 | 1,384 |
Payment | 746,669 | |||
Order Status | 74,668 | |||
Delivery | 74,666 | |||
Stock Level | 74,665 | |||
Customer Report | 746,668 | |||
Active Idle | New Order | 0 | 1,384 | |
Payment | 0 | |||
Order Status | 0 | |||
Delivery | 0 | |||
Stock Level | 0 | |||
Customer Report | 0 |
