SPECpower_ssj2008

Quanta Cloud Technology QuantaGrid D43K-1U			SPECpower_ssj2008 = 21,949 overall ssj_ops/watt
Test Sponsor:	Quanta Computer Inc.	SPEC License #:	9050	Test Method:	Single Node
Tested By:	Quanta Computer Inc.	Test Location:	Taoyuan, TW, R.O.C	Test Date:	Aug 9, 2021
Hardware Availability:	Mar-2021	Software Availability:	Jul-2019	Publication:	Oct 28, 2021
System Source:	Single Supplier	System Designation:	Server	Power Provisioning:	Line-powered

Hardware
Hardware Vendor:	Quanta Cloud Technology
Model:	QuantaGrid D43K-1U
Form Factor:	1U
CPU Name:	AMD EPYC 7763
CPU Characteristics:	64-Core, 2.45GHz, 256MB L3 Cache (Max Boost Clock up to 3.5 GHz)
CPU Frequency (MHz):	2450
CPU(s) Enabled:	128 cores, 2 chips, 64 cores/chip
Hardware Threads:	256 (2 / core)
CPU(s) Orderable:	1,2 chips
Primary Cache:	32 KB I + 32 KB D on chip per core
Secondary Cache:	512 KB I+D on chip per core
Tertiary Cache:	256 MB I+D on chip per chip
Other Cache:	None
Memory Amount (GB):	256
# and size of DIMM:	16 x 16384 MB
Memory Details:	16GB 2Rx8 PC4-3200; slots 1, 3, 5, 7, 9, 11, 13, 15, 17, 19, 21, 23, 25, 27, 29,and 31 populated
Power Supply Quantity and Rating (W):	1 x 800
Power Supply Details:	LITEON PS-2801-8Q
Disk Drive:	1 x 600GB SATA SSD Toshiba P/N:HDEBL14GEA51
Disk Controller:	Integrated SATA controller
# and type of Network Interface Cards (NICs) Installed:	1 x Intel X710-T2L 2-Port 10Gb NIC
NICs Enabled in Firmware / OS / Connected:	2/2/1
Network Speed (Mbit):	10000
Keyboard:	None
Mouse:	None
Monitor:	None
Optical Drives:	No
Other Hardware:	None

Software
Power Management:	Balanced power plan in OS
Operating System (OS):	Microsoft Windows Server 2019 Datacenter
OS Version:	Version 1809 (OS Build 17763.1397)
Filesystem:	NTFS
JVM Vendor:	Oracle Corporation
JVM Version:	Java HotSpot(TM) 64-Bit Server VM 18.9 (build 11.0.4+10-LTS, mixed mode)
JVM Command-line Options:	-server -Xmn1700m -Xms1950m -Xmx1950m -XX:UseSSE=4 -XX:UseAVX=1 -XX:SurvivorRatio=1 -XX:TargetSurvivorRatio=99 -XX:ParallelGCThreads=2 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=2 -XX:LoopUnrollLimit=45 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:InlineSmallCode=3900 -XX:MaxInlineSize=270 -XX:FreqInlineSize=2500 -XX:+UseLargePages -XX:+UseParallelOldGC
JVM Affinity:	start /NODE [0-15] /AFFINITY [0xF,0xF0,0xF00,0xF000]
JVM Instances:	64
JVM Initial Heap (MB):	1950
JVM Maximum Heap (MB):	1950
JVM Address Bits:	64
Boot Firmware Version:	3C05
Management Firmware Version:	5.15
Workload Version:	SSJ 1.2.10
Director Location:	Controller
Other Software:	Microsoft Windows(KB4565349)

none

Benchmark started via Windows Remote Desktop Connection
Using the local security settings console, "lock pages in memory" was enabled for the user running the benchmark
Balanced mode
Hard Disk set to turn off after 1 minute
Display set to turn off after 1 minute
Using Windows PowerShell, set the following powercfg properties:

Each JVM instance was bound to 4 logical processors
NA: The test sponsor attests, as of date of publication, that CVE-2017-5754 (Meltdown) is mitigated in the system as tested and documented.
Yes: The test sponsor attests, as of date of publication, that CVE-2017-5753 (Spectre variant 1) is mitigated in the system as tested and documented.
Yes: The test sponsor attests, as of date of publication, that CVE-2017-5715 (Spectre variant 2) is mitigated in the system as tested and documented.

Software
Operating System (OS):	Microsoft Windows Server 2012 Datacenter 64-bit
JVM Vendor:	Oracle Corporation
JVM Version:	Hotspot(TM) Client VM, version 1.7.0_25
CCS Version:	1.2.6

Power Analyzer pwr1
Hardware Vendor:	Yokogawa Meters and Instruments Corporation
Model:	WT310
Serial Number:	C2PM12064V
Connectivity:	USB
Input Connection:	Default
Metrology Institute:	NML (National Measurement Laboratory)
Accredited by:	Omni Calibration Laboratory,Taiwan
Calibration Label:	ECR2114875
Date of Calibration:	4-May-2021
PTDaemon Host System:	same as CCS
PTDaemon Host OS:	same as CCS
PTDaemon Version:	1.9.2-3976349f-20201208
Setup Description:	Connected to power supply

Temperature Sensor temp1
Hardware Vendor:	Digi International Inc.
Model:	Watchport/T
Driver Version:	5.70.105.0
Connectivity:	USB
PTDaemon Host System:	same as CCS
PTDaemon Host OS:	same as CCS
Setup Description:	25 mm in front of SUT main airflow intake

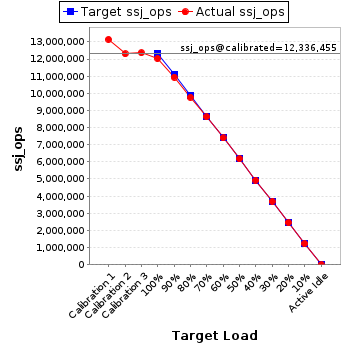

Target Load	Average Active Power (W)	Minimum Ambient Temperature (°C)
100%	453	21.8
90%	381	21.8
80%	342	21.7
70%	321	21.6
60%	300	21.6
50%	281	21.6
40%	260	21.6
30%	240	21.5
20%	218	21.5
10%	192	21.4
Active Idle	78.5	21.2

Line Standard	Minimum Temperature (°C)	Elevation (m)
220V / 60 Hz / 1 phase / 2 wires	21.2	250

See the Power/Temperature Details Report for additional details.

See the Host Performance Report for additional details.

SPECpower_ssj2008 Reporter Version: [SSJ 1.2.10, May 9, 2012]
