XSLAB V-Raptor SQ SPECpower_ssj2008 = 3,337 overall ssj_ops/watt
Test Sponsor: Telecommunications Technology Association SPEC License #: 83 Test Method: Multi Node
Tested By: Telecommunications Technology Association Test Location: TTA, Seongnam-city, Korea Test Date: Sep 15, 2021
Hardware Availability: Jul-2021 Software Availability: Sep-2018 Publication: Dec 8, 2021
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Average Active Power (W) Minimum Ambient Temperature (°C)
Calibration 1 269 28.9
Calibration 2 269 28.9
Calibration 3 269 28.9
100% 269 28.9
90% 267 28.9
80% 262 29.0
70% 255 29.0
60% 247 29.0
50% 239 28.9
40% 231 28.9
30% 224 28.9
20% 218 29.2
10% 212 29.2
Active Idle 206 29.1

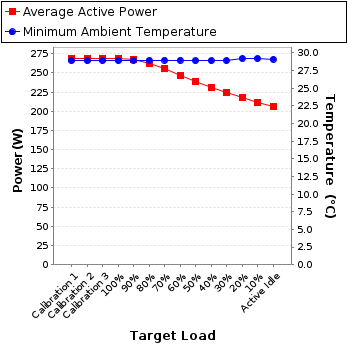

Graph of power and temperature
Measurement Devices
Power Analyzer pwr1
Hardware Vendor: Tektronix
Model: PA1000
Serial Number: C040933
Connectivity: USB
Input Connection: Default
Metrology Institute: SS TECHNOLOGY INC.
Accredited by: KOLAS (Korea Laboratory Accreditation Scheme)
Calibration Label: SS-210406-0022
Date of Calibration: 7-Apr-2021
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
PTDaemon Version: 1.9.2-e8c7a49a-20201208
Setup Description: Connected to PSU 1
Temperature Sensor temp1
Hardware Vendor: iButtonLink
Model: LinkUSBi + T-Probe
Driver Version: FTDI USB Serial Device 1.0
Connectivity: USB(UART)
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
Setup Description: 5mm in front of SUT main intake
Notes
None
Power Details for Device pwr1
Target Load Voltage (V) Current (A) Avg Power Factor Avg Active Power (W) Power Measurement Uncertainty (%)
Avg Range Avg Range
Calibration 1 217 353.6 1.35 3.5 0.922 269 0.7%
Calibration 2 216 353.6 1.35 3.5 0.922 269 0.7%
Calibration 3 217 353.6 1.35 3.5 0.922 269 0.7%
100% 216 353.6 1.35 3.5 0.922 269 0.7%
90% 216 353.6 1.34 3.5 0.922 267 0.7%
80% 216 353.6 1.32 3.5 0.921 262 0.7%
70% 216 353.6 1.28 3.5 0.919 255 0.7%
60% 216 353.6 1.24 3.5 0.917 247 0.7%
50% 216 353.6 1.21 3.5 0.914 239 0.7%
40% 216 353.6 1.17 3.5 0.911 231 0.7%
30% 216 353.6 1.14 3.5 0.909 224 0.7%
20% 216 353.6 1.11 3.5 0.906 218 0.7%
10% 217 353.6 1.08 3.5 0.904 212 0.7%
Active Idle 217 353.6 1.05 3.5 0.901 206 0.8%
Power details for pwr1
