SPECpower_ssj2008 Aggregate Performance Report

SPECpower_ssj2008

Aggregate Performance Report

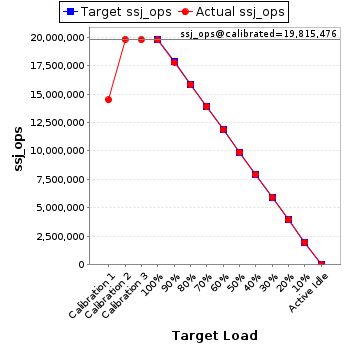

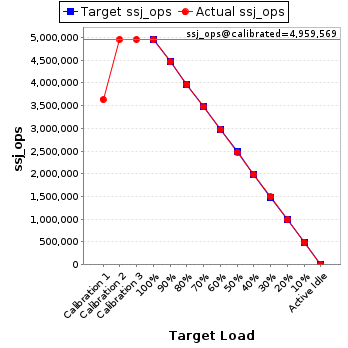

Fujitsu FUJITSU Server PRIMERGY CX2560 M6			ssj_ops@100% = 19,762,291 ssj_ops@100% per Host = 4,940,573 ssj_ops@100% per JVM = 1,235,143
Test Sponsor:	Fujitsu	SPEC License #:	19	Test Method:	Multi Node
Tested By:	Fujitsu	Test Location:	Kawasaki, Kanagawa, Japan	Test Date:	Aug 6, 2021
Hardware Availability:	Sep-2021	Software Availability:	Dec-2020	Publication:	Sep 1, 2021
System Source:	Single Supplier	System Designation:	Server	Power Provisioning:	Line-powered

# of Nodes	# of Chips	# of Cores	# of Threads	Total RAM (GB)	# of OS Images	# of JVM Instances
4	8	192	384	1,024	4	16

Shared Hardware
Enclosure:	PRIMERGY CX400 M6
Form Factor:	2U
Power Supply Quantity and Rating (W):	1 x 2600
Power Supply Details:	1x COMPUWARE 2600W S26113-E649-V90-1
Network Switch:	Fujitsu SR-X324T2
Network Switch Details:	24-Port Gigabit Switch
KVM Switch:	None
KVM Switch Details:	N/A
Other Hardware:	None
Comment:	Gigabit switch was not measured for power

Hardware per Node
Hardware Vendor:	Fujitsu
Model:	FUJITSU Server PRIMERGY CX2560 M6
Form Factor:	Blade
CPU Name:	Intel Xeon Gold 5318Y
CPU Characteristics:	24-Core, 2.10GHz, 36MB L3 Cache
CPU Frequency (MHz):	2100
CPU(s) Enabled:	48 cores, 2 chips, 24 cores/chip
Hardware Threads:	96 (2 / core)
CPU(s) Orderable:	1,2 chips
Primary Cache:	32 KB I + 48 KB D on chip per core
Secondary Cache:	1280 KB I+D on chip per core
Tertiary Cache:	36 MB I+D on chip per chip
Other Cache:	None
Memory Amount (GB):	256
# and size of DIMM:	16 x 16384 MB
Memory Details:	16 x 16 GB 2Rx8 PC4-3200Y-R; slots 1A, 1B, 1C, 1D, 1E, 1F, 1G, 1H, 1J, 1K, 1L, 1M, 1N, 1P, 1Q, 1R populated
Power Supply Quantity and Rating (W):	None
Power Supply Details:	N/A
Disk Drive:	1 x SSD M.2 240GB, S26361-F5787-E240
Disk Controller:	Integrated sSATA Controller
# and type of Network Interface Cards (NICs) Installed:	1 x Intel(R) 10Gb X550T Gigabit Network Connection (onboard)
NICs Enabled in Firmware / OS / Connected:	1/1/1
Network Speed (Mbit):	10000
Keyboard:	None
Mouse:	None
Monitor:	None
Optical Drives:	No
Other Hardware:	None

Software per Node
Power Management:	Enabled (see SUT Notes)
Operating System (OS):	SUSE Linux Enterprise Server 15 SP2
OS Version:	5.3.18-24.43-default
Filesystem:	btrfs
JVM Vendor:	Oracle Corporation
JVM Version:	Oracle Java HotSpot(TM) 64-Bit Server VM 18.9 (build 11.0.9+7-LTS, mixed mode)
JVM Command-line Options:	-server -Xmn20000m -Xms22000m -Xmx22000m -XX:+UseHugeTLBFS -XX:+UseLargePages -XX:+UseTransparentHugePages -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchInstr=0 -XX:AllocatePrefetchLines=4 -XX:InlineSmallCode=3900 -XX:MaxInlineSize=270 -XX:ParallelGCThreads=8 -XX:SurvivorRatio=1 -XX:TargetSurvivorRatio=99 -XX:+UseParallelOldGC -XX:FreqInlineSize=2500 -XX:MinJumpTableSize=18 -XX:UseAVX=0 -XX:+UseBiasedLocking
JVM Affinity:	chrt -r 1 taskset -c [(0,1,2,3,4,5,6,7,8,9,10,11,48,49,50,51,52,53,54,55,56,57,58), (12,13,14,15,16,17,18,19,20,21,22,23,60,61,62,63,64,65,66,67,68,69,70), (24,25,26,27,28,29,30,31,32,33,34,35,72,73,74,75,76,77,78,79,80,81,82), (36,37,38,39,40,41,42,43,44,45,46,47,84,85,86,87,88,89,90,91,92,93,94)] numactl --membind=[0-3]
JVM Instances:	4
JVM Initial Heap (MB):	22000
JVM Maximum Heap (MB):	22000
JVM Address Bits:	64
Boot Firmware Version:	R1.23.0
Management Firmware Version:	3.26P
Workload Version:	SSJ 1.2.10
Director Location:	Controller
Other Software:	None

None

kernel parameter: pcie_aspm=force pcie_aspm.policy=powersave intel_pstate=passive
Benchmark started via ssh.
modprobe cpufreq_conservative
cpupower frequency-set -g conservative
echo 3000000 > /sys/devices/system/cpu/cpufreq/conservative/sampling_rate
echo 93 > /sys/devices/system/cpu/cpufreq/conservative/up_threshold
echo 1 > /sys/devices/system/cpu/cpufreq/conservative/freq_step
echo 92 > /sys/devices/system/cpu/cpufreq/conservative/down_threshold
echo always > /sys/kernel/mm/transparent_hugepage/enabled
cpupower frequency-set -u 2600MHz
sysctl -w kernel.nmi_watchdog=0
<Yes> The test sponsor attests, as of date of publication, that CVE-2017-5754 (Meltdown) is mitigated in the system as tested and documented.
<Yes> The test sponsor attests, as of date of publication, that CVE-2017-5753 (Spectre variant 1) is mitigated in the system as tested and documented.
<Yes> The test sponsor attests, as of date of publication, that CVE-2017-5715 (Spectre variant 2) is mitigated in the system as tested and documented.

SPECpower_ssj.props input.load_level.number_warehouses set to 96 due to a known inconsistency in processor reporting with this Java version.

See the Host Performance Report for additional details.

See the Host Performance Report for additional details.

See the Host Performance Report for additional details.

See the Host Performance Report for additional details.

SPECpower_ssj2008 Reporter Version: [SSJ 1.2.10, May 9, 2012]
