SPECpower_ssj2008
Power/Temperature Details
Copyright © 2007-2021 Standard Performance Evaluation Corporation
| Fujitsu FUJITSU Server PRIMERGY CX2560 M6 | SPECpower_ssj2008 = 8,903 overall ssj_ops/watt | ||||
| Test Sponsor: | Fujitsu | SPEC License #: | 19 | Test Method: | Multi Node |
| Tested By: | Fujitsu | Test Location: | Kawasaki, Kanagawa, Japan | Test Date: | Aug 6, 2021 |
| Hardware Availability: | Sep-2021 | Software Availability: | Dec-2020 | Publication: | Sep 1, 2021 |
| System Source: | Single Supplier | System Designation: | Server | Power Provisioning: | Line-powered |

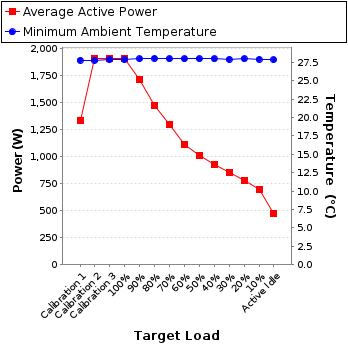

| Target Load | Average Active Power (W) | Minimum Ambient Temperature (°C) |
|---|---|---|
| Calibration 1 | 1,330 | 27.8 |
| Calibration 2 | 1,902 | 27.8 |
| Calibration 3 | 1,907 | 27.9 |
| 100% | 1,906 | 27.9 |
| 90% | 1,715 | 28.0 |
| 80% | 1,474 | 28.1 |
| 70% | 1,292 | 28.0 |
| 60% | 1,109 | 28.0 |
| 50% | 1,009 | 28.0 |
| 40% | 929 | 28.0 |
| 30% | 856 | 27.9 |
| 20% | 778 | 28.0 |
| 10% | 696 | 27.9 |
| Active Idle | 472 | 27.9 |
| Power Analyzer pwr1 | |
|---|---|
| Hardware Vendor: | Hioki |
| Model: | PW3336 |
| Serial Number: | 170134584 |
| Connectivity: | RS-232 |
| Input Connection: | Default |
| Metrology Institute: | NICT (National Institute of Information and Communications Technology) |
| Accredited by: | HIOKI E.E. CORPORATION |
| Calibration Label: | H06400087-2103 |
| Date of Calibration: | 08-Mar-2021 |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| PTDaemon Version: | 1.9.2-3976349f-20201208 |
| Setup Description: | Connected to PSU 1 |
| Temperature Sensor temp1 | |
|---|---|
| Hardware Vendor: | Digi International Inc |
| Model: | Watchport/H |
| Driver Version: | Watchport Virtual Port 5.70.105.0 |
| Connectivity: | USB |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| Setup Description: | 5 mm in front of SUT main air intake |

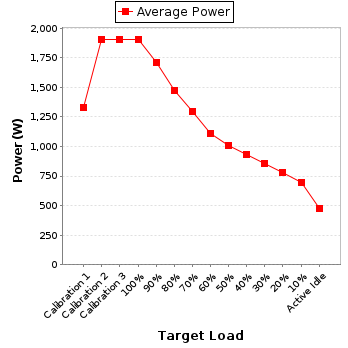

| Target Load | Voltage (V) | Current (A) | Avg Power Factor | Avg Active Power (W) | Power Measurement Uncertainty (%) | ||
|---|---|---|---|---|---|---|---|
| Avg | Range | Avg | Range | ||||
| Calibration 1 | 203 | 300.0 | 6.80 | 10.0 | 0.995 | 1,330 | 0.2% |
| Calibration 2 | 203 | 300.0 | 9.41 | 10.0 | 0.998 | 1,902 | 0.2% |
| Calibration 3 | 203 | 300.0 | 9.43 | 10.0 | 0.998 | 1,907 | 0.2% |
| 100% | 202 | 300.0 | 9.46 | 10.0 | 0.998 | 1,906 | 0.2% |
| 90% | 202 | 300.0 | 8.51 | 10.0 | 0.998 | 1,715 | 0.2% |
| 80% | 203 | 300.0 | 7.30 | 10.0 | 0.997 | 1,474 | 0.2% |
| 70% | 203 | 300.0 | 6.40 | 10.0 | 0.996 | 1,292 | 0.2% |
| 60% | 203 | 300.0 | 5.50 | 10.0 | 0.995 | 1,109 | 0.2% |
| 50% | 202 | 300.0 | 5.03 | 5.0 | 0.993 | 1,009 | 0.2% |
| 40% | 201 | 300.0 | 4.65 | 5.0 | 0.992 | 929 | 0.2% |
| 30% | 202 | 300.0 | 4.28 | 5.0 | 0.992 | 856 | 0.2% |
| 20% | 202 | 300.0 | 3.89 | 5.0 | 0.991 | 778 | 0.2% |
| 10% | 200 | 300.0 | 3.51 | 5.0 | 0.990 | 696 | 0.2% |
| Active Idle | 202 | 300.0 | 2.39 | 5.0 | 0.981 | 472 | 0.3% |
