Inspur Corporation Inspur NF5180M6 SPECpower_ssj2008 = 12,271 overall ssj_ops/watt
Test Sponsor: Inspur Corporation SPEC License #: 3358 Test Method: Single Node
Tested By: Inspur Corporation Test Location: JINAN, CHINA Test Date: Jul 13, 2021
Hardware Availability: Jun-2021 Software Availability: Jan-2021 Publication: Aug 19, 2021
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Average Active Power (W) Minimum Ambient Temperature (°C)
Calibration 1 625 24.0
Calibration 2 626 24.1
Calibration 3 626 24.2
100% 625 24.2
90% 561 24.2
80% 419 24.3
70% 371 24.2
60% 329 24.2
50% 293 24.1
40% 264 24.1
30% 238 24.1
20% 213 24.1
10% 188 24.0
Active Idle 129 23.9

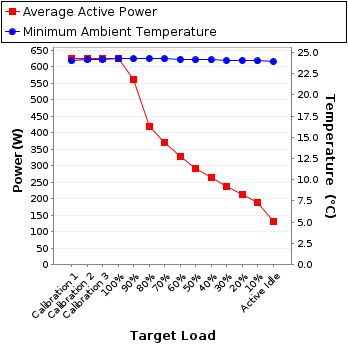

Graph of power and temperature
Measurement Devices
Power Analyzer pwr1
Hardware Vendor: Yokogawa Meters and Instruments Corporation
Model: WT310E
Serial Number: C2QK23023V
Connectivity: RS-232
Input Connection: Default
Metrology Institute: China National Accreditation Service for Conformity Assessment (CNAS)
Accredited by: Calibration and Testing Center of CEPREI
Calibration Label: J202010202011G-0013
Date of Calibration: 22-Oct-2020
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
PTDaemon Version: 1.9.2-3976349f-20201208
Setup Description: Connected to PSU 0
Temperature Sensor temp1
Hardware Vendor: Digi
Model: Watchport/H
Driver Version: 5.70.105.0
Connectivity: USB
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
Setup Description: placed in front the main airflow inlet of the SUT less than 50mm.
Notes
SPECpower_ssj.props input.load_level.number_warehouses set to 160 due to a known inconsistency in processor reporting with this Java version
Power Details for Device pwr1
Target Load Voltage (V) Current (A) Avg Power Factor Avg Active Power (W) Power Measurement Uncertainty (%)
Avg Range Avg Range
Calibration 1 222 300.0 2.84 5.0 0.992 625 0.3%
Calibration 2 222 300.0 2.84 5.0 0.992 626 0.3%
Calibration 3 222 300.0 2.84 5.0 0.992 626 0.3%
100% 222 300.0 2.83 5.0 0.992 625 0.3%
90% 222 300.0 2.53 5.0 0.997 561 0.3%
80% 223 300.0 1.90 5.0 0.994 419 0.3%
70% 223 300.0 1.67 5.0 0.994 371 0.3%
60% 224 300.0 1.48 5.0 0.993 329 0.4%
50% 224 300.0 1.32 5.0 0.992 293 0.4%
40% 224 300.0 1.19 5.0 0.991 264 0.4%
30% 223 300.0 1.08 5.0 0.989 238 0.4%
20% 223 300.0 0.970 2.0 0.987 213 0.3%
10% 223 300.0 0.853 2.0 0.986 188 0.3%
Active Idle 224 300.0 0.597 2.0 0.976 129 0.4%

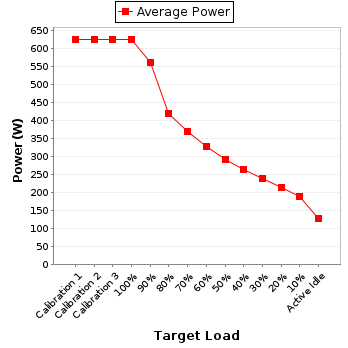

Power details for pwr1
