SPECpower_ssj2008 Host 'localhost' Performance Report

SPECpower_ssj2008

Host 'localhost' Performance Report

Hewlett Packard Enterprise ProLiant DL110 Gen10 Plus			ssj_ops@100% = 3,269,735 ssj_ops@100% per JVM = 204,358
Test Sponsor:	Hewlett Packard Enterprise	SPEC License #:	3	Test Method:	Single Node
Tested By:	Hewlett Packard Enterprise	Test Location:	Houston, TX, USA	Test Date:	Jul 26, 2021
Hardware Availability:	Aug-2021	Software Availability:	Jun-2021	Publication:	Aug 31, 2021
System Source:	Single Supplier	System Designation:	Server	Power Provisioning:	Line-powered

Benchmark Results Summary

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			2,807,226
Calibration 2			3,288,380
Calibration 3			3,286,113
ssj_ops@calibrated=3,287,247
100%	99.5%	3,287,247	3,269,735
90%	89.8%	2,958,522	2,952,754
80%	80.5%	2,629,797	2,646,240
70%	70.3%	2,301,073	2,310,987
60%	60.0%	1,972,348	1,972,933
50%	50.0%	1,643,623	1,642,065
40%	40.0%	1,314,899	1,315,144
30%	30.0%	986,174	984,697
20%	20.0%	657,449	656,493
10%	10.1%	328,725	330,914
Active Idle		0	0

System Under Test

Set: 'SUT'

Set Identifier:	SUT
Set Description:	System Under Test
# of Identical Nodes:	1
Comment:	SUT

Hardware
Hardware Vendor:	Hewlett Packard Enterprise
Model:	ProLiant DL110 Gen10 Plus
Form Factor:	1U
CPU Name:	Intel Xeon Gold 6314U CPU @ 2.30GHz (Intel Turbo Boost Technology up to 3.4GHz)
CPU Characteristics:	32-Core, 2.30 GHz, 48MB L3 Cache
CPU Frequency (MHz):	2300
CPU(s) Enabled:	32 cores, 1 chip, 32 cores/chip
Hardware Threads:	64 (2 / core)
CPU(s) Orderable:	1 chip
Primary Cache:	32 KB I + 32 KB D on chip per core
Secondary Cache:	1280 KB I+D on chip per core
Tertiary Cache:	48 MB I+D on chip per chip
Other Cache:	None
Memory Amount (GB):	64
# and size of DIMM:	8 x 8192 MB
Memory Details:	8 x 8GB 1Rx8 PC4-3200-AA-RD1-12; slots 1,2,3,4,5,6,7,8 populated in each socket
Power Supply Quantity and Rating (W):	1 x 700
Power Supply Details:	HPE 700W Flex Slot Platinum Hot Plug Low Halogen AC Power Supply Kit (P44975-B21)
Disk Drive:	1 x HPE 240GB SATA 6G M.2 5300 SSD (P19888-B21)
Disk Controller:	Embedded SATA Controller
# and type of Network Interface Cards (NICs) Installed:	1 x Ethernet 10/25Gb 2-port SFP28 MCX562A-ACAI OCP3 Adapter
NICs Enabled in Firmware / OS / Connected:	2/2/1
Network Speed (Mbit):	1000
Keyboard:	None
Mouse:	None
Monitor:	None
Optical Drives:	No
Other Hardware:	None

Software
Power Management:	Enabled (see SUT Notes)
Operating System (OS):	SUSE Linux Enterprise Server 15 SP2
OS Version:	5.3.18-22-default
Filesystem:	xfs
JVM Vendor:	Oracle Corporation
JVM Version:	Oracle Java HotSpot(TM) 64-Bit Server VM 18.9 (build 11.0.11+9-LTS-194, mixed mode)
JVM Command-line Options:	-server -Xmn3150m -Xms3350m -Xmx3350m -XX:SurvivorRatio=1 -XX:TargetSurvivorRatio=99 -XX:ParallelGCThreads=8 -XX:AllocatePrefetchDistance=252 -XX:AllocatePrefetchLines=4 -XX:LoopUnrollLimit=45 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:InlineSmallCode=4200 -XX:MaxInlineSize=270 -XX:FreqInlineSize=2500 -XX:+UseLargePages -XX:+UseParallelOldGC -XX:UseAVX=0 -XX:-UseAdaptiveSizePolicy -XX:-ThreadLocalHandshakes
JVM Affinity:	for each even physicalCore { numactl -C physicalCoreId, physicalCoreId + 1, physicalCoreId + 2, physicalCoreId + 3 }
JVM Instances:	16
JVM Initial Heap (MB):	3350
JVM Maximum Heap (MB):	3350
JVM Address Bits:	64
Boot Firmware Version:	U56 v1.40 (04/28/2021)
Management Firmware Version:	1.40 Apr 28 2021
Workload Version:	SSJ 1.2.10
Director Location:	Controller
Other Software:	HPE Service Pack for ProLiant (SPP) Version:2021.06.21 (June 2021)

Boot Firmware Settings

VT-D: Disabled
Intel Virtualization (Intel VT): Disabled
Processor x2APIC Support: Disabled
Power Regulator: OS Control Mode
Intel Turbo Boost Technology: Enabled
Energy Performance Bias: Balanced Power
Intel DMI Link Frequency: Gen1 Speed
NUMA Group Size Optimization: Clustered
Sub-NUMA Clustering: Enabled SNC 2
HW Prefetcher: Disabled
Adjacent Sector Prefetch: Disabled
DCU Stream Prefetcher: Disabled
Memory Patrol Scrubbing: Disabled
Memory Bus Frequency: 2400
USB Control: All USB Ports Disabled
Maximum PCI Express Speed: PCIe Generation 1.0

Management Firmware Settings

See SUT Notes

System Under Test Notes

Benchmark started via SSH
SPECpower_ssj.props input.load_level.number_warehouses set to 64 to detect the full number of available processors on the SUT
Kernel Parameter: intel_pstate=passive

modprobe cpufreq_conservative
cpupower frequency-set -g conservative
echo 2000000 > /sys/devices/system/cpu/cpufreq/conservative/sampling_rate
echo 98 > /sys/devices/system/cpu/cpufreq/conservative/up_threshold
echo 1 > /sys/devices/system/cpu/cpufreq/conservative/freq_step
echo 95 > /sys/devices/system/cpu/cpufreq/conservative/down_threshold
echo 960000 > /proc/sys/kernel/sched_rt_runtime_us
echo 15000000 > /proc/sys/kernel/sched_latency_ns
echo 9000000 > /proc/sys/kernel/sched_min_granularity_ns
echo 31000 > /proc/sys/vm/nr_hugepages

Applied protection against speculative execution

Yes: The test sponsor attests, as of date of publication, that CVE-2017-5754 (Meltdown) is mitigated in the system as tested and documented.
Yes: The test sponsor attests, as of date of publication, that CVE-2017-5753 (Spectre variant 1) is mitigated in the system as tested and documented.
Yes: The test sponsor attests, as of date of publication, that CVE-2017-5715 (Spectre variant 2) is mitigated in the system as tested and documented.

The system ROM used for this result contains Intel microcode version 0xd0002a0 for the Intel Xeon Gold 6314U processor

Notes

None

JVM Instance Summary

JVM Instance	ssj_ops@100%
localhost.001	210,413
localhost.002	209,779
localhost.003	191,256
localhost.004	206,585
localhost.005	206,372
localhost.006	208,826
localhost.007	201,310
localhost.008	205,452
localhost.009	195,658
localhost.010	207,011
localhost.011	210,529
localhost.012	207,669
localhost.013	202,675
localhost.014	209,223
localhost.015	193,422
localhost.016	203,555
ssj_ops@100%	3,269,735
ssj_ops@100% per JVM	204,358

JVM 'localhost.001' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			183,790
Calibration 2			211,738
Calibration 3			211,805
ssj_ops@calibrated=211,772
100%	99.4%	211,772	210,413
90%	90.1%	190,594	190,726
80%	80.3%	169,417	170,124
70%	70.7%	148,240	149,695
60%	60.5%	127,063	128,027
50%	49.7%	105,886	105,314
40%	40.4%	84,709	85,590
30%	29.7%	63,531	62,984
20%	19.6%	42,354	41,564
10%	9.9%	21,177	21,039
Active Idle		0	0

See the JVM Instance Performance Report for additional details.

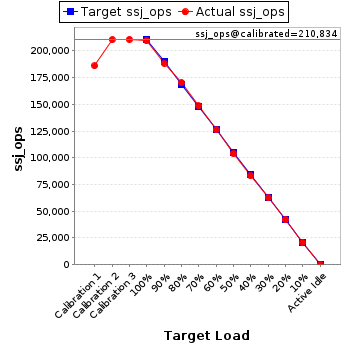

JVM 'localhost.002' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			186,182
Calibration 2			210,696
Calibration 3			210,972
ssj_ops@calibrated=210,834
100%	99.5%	210,834	209,779
90%	89.5%	189,750	188,612
80%	80.9%	168,667	170,534
70%	70.4%	147,584	148,502
60%	60.0%	126,500	126,483
50%	49.5%	105,417	104,366
40%	39.5%	84,334	83,327
30%	29.8%	63,250	62,761
20%	20.1%	42,167	42,442
10%	10.0%	21,083	21,051
Active Idle		0	0

See the JVM Instance Performance Report for additional details.

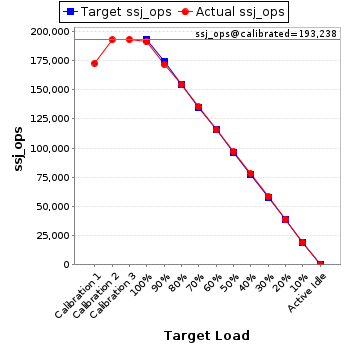

JVM 'localhost.003' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			172,876
Calibration 2			193,036
Calibration 3			193,441
ssj_ops@calibrated=193,238
100%	99.0%	193,238	191,256
90%	89.1%	173,915	172,091
80%	80.1%	154,591	154,728
70%	70.1%	135,267	135,512
60%	60.1%	115,943	116,154
50%	50.2%	96,619	97,083
40%	40.4%	77,295	78,134
30%	30.3%	57,972	58,634
20%	20.2%	38,648	38,988
10%	10.0%	19,324	19,252
Active Idle		0	0

See the JVM Instance Performance Report for additional details.

JVM 'localhost.004' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			179,943
Calibration 2			207,328
Calibration 3			206,885
ssj_ops@calibrated=207,107
100%	99.7%	207,107	206,585
90%	89.8%	186,396	186,016
80%	79.8%	165,685	165,301
70%	70.8%	144,975	146,616
60%	60.0%	124,264	124,229
50%	50.0%	103,553	103,560
40%	39.8%	82,843	82,485
30%	29.9%	62,132	61,823
20%	19.8%	41,421	40,960
10%	9.9%	20,711	20,543
Active Idle		0	0

See the JVM Instance Performance Report for additional details.

JVM 'localhost.005' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			168,692
Calibration 2			207,864
Calibration 3			207,226
ssj_ops@calibrated=207,545
100%	99.4%	207,545	206,372
90%	89.9%	186,790	186,547
80%	81.0%	166,036	168,030
70%	70.3%	145,281	145,870
60%	60.2%	124,527	124,890
50%	50.0%	103,772	103,748
40%	40.3%	83,018	83,648
30%	29.8%	62,263	61,899
20%	20.1%	41,509	41,615
10%	10.1%	20,754	21,055
Active Idle		0	0

See the JVM Instance Performance Report for additional details.

JVM 'localhost.006' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			170,641
Calibration 2			209,118
Calibration 3			209,266
ssj_ops@calibrated=209,192
100%	99.8%	209,192	208,826
90%	90.2%	188,273	188,606
80%	80.5%	167,353	168,411
70%	70.0%	146,434	146,462
60%	60.2%	125,515	125,849
50%	49.6%	104,596	103,692
40%	39.7%	83,677	83,004
30%	30.3%	62,758	63,392
20%	20.3%	41,838	42,441
10%	10.0%	20,919	20,837
Active Idle		0	0

See the JVM Instance Performance Report for additional details.

JVM 'localhost.007' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			163,767
Calibration 2			202,166
Calibration 3			201,391
ssj_ops@calibrated=201,778
100%	99.8%	201,778	201,310
90%	89.9%	181,601	181,421
80%	79.7%	161,423	160,786
70%	70.2%	141,245	141,695
60%	59.9%	121,067	120,853
50%	50.2%	100,889	101,270
40%	40.2%	80,711	81,156
30%	30.1%	60,534	60,744
20%	19.9%	40,356	40,239
10%	10.0%	20,178	20,187
Active Idle		0	0

See the JVM Instance Performance Report for additional details.

JVM 'localhost.008' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			176,939
Calibration 2			208,177
Calibration 3			208,108
ssj_ops@calibrated=208,142
100%	98.7%	208,142	205,452
90%	89.4%	187,328	186,167
80%	80.0%	166,514	166,485
70%	69.9%	145,700	145,517
60%	60.6%	124,885	126,109
50%	50.0%	104,071	104,130
40%	40.3%	83,257	83,817
30%	29.8%	62,443	62,060
20%	19.4%	41,628	40,344
10%	10.0%	20,814	20,887
Active Idle		0	0

See the JVM Instance Performance Report for additional details.

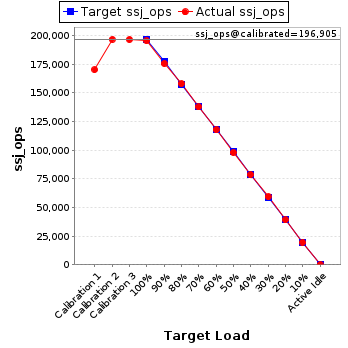

JVM 'localhost.009' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			170,464
Calibration 2			196,967
Calibration 3			196,842
ssj_ops@calibrated=196,905
100%	99.4%	196,905	195,658
90%	89.3%	177,214	175,854
80%	80.4%	157,524	158,292
70%	70.0%	137,833	137,842
60%	59.9%	118,143	117,958
50%	49.8%	98,452	98,150
40%	39.9%	78,762	78,595
30%	30.2%	59,071	59,539
20%	19.9%	39,381	39,166
10%	10.0%	19,690	19,688
Active Idle		0	0

See the JVM Instance Performance Report for additional details.

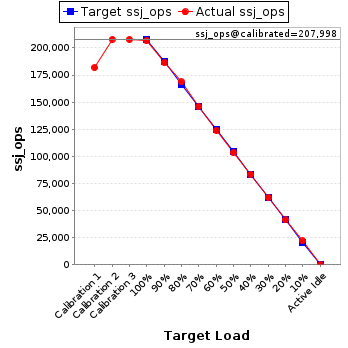

JVM 'localhost.010' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			181,974
Calibration 2			207,999
Calibration 3			207,997
ssj_ops@calibrated=207,998
100%	99.5%	207,998	207,011
90%	89.8%	187,198	186,747
80%	81.1%	166,398	168,674
70%	70.3%	145,599	146,270
60%	59.6%	124,799	124,020
50%	49.8%	103,999	103,519
40%	40.2%	83,199	83,572
30%	30.0%	62,399	62,366
20%	19.9%	41,600	41,301
10%	10.5%	20,800	21,902
Active Idle		0	0

See the JVM Instance Performance Report for additional details.

JVM 'localhost.011' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			191,959
Calibration 2			212,783
Calibration 3			211,422
ssj_ops@calibrated=212,102
100%	99.3%	212,102	210,529
90%	89.7%	190,892	190,308
80%	81.2%	169,682	172,279
70%	70.5%	148,472	149,458
60%	60.0%	127,261	127,297
50%	49.7%	106,051	105,438
40%	39.8%	84,841	84,511
30%	29.6%	63,631	62,749
20%	20.6%	42,420	43,589
10%	10.2%	21,210	21,604
Active Idle		0	0

See the JVM Instance Performance Report for additional details.

JVM 'localhost.012' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			183,009
Calibration 2			208,022
Calibration 3			208,159
ssj_ops@calibrated=208,090
100%	99.8%	208,090	207,669
90%	90.1%	187,281	187,386
80%	80.7%	166,472	167,964
70%	70.0%	145,663	145,719
60%	59.4%	124,854	123,613
50%	49.7%	104,045	103,318
40%	40.0%	83,236	83,208
30%	29.5%	62,427	61,463
20%	20.0%	41,618	41,535
10%	10.2%	20,809	21,250
Active Idle		0	0

See the JVM Instance Performance Report for additional details.

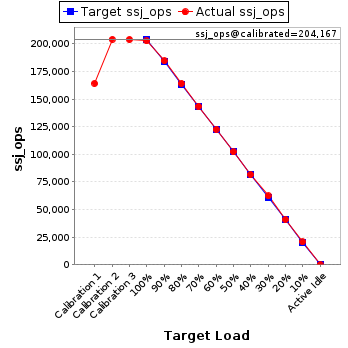

JVM 'localhost.013' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			164,314
Calibration 2			204,231
Calibration 3			204,104
ssj_ops@calibrated=204,167
100%	99.3%	204,167	202,675
90%	90.5%	183,750	184,797
80%	80.5%	163,334	164,371
70%	70.3%	142,917	143,628
60%	60.1%	122,500	122,729
50%	50.1%	102,084	102,215
40%	39.9%	81,667	81,534
30%	30.6%	61,250	62,410
20%	20.1%	40,833	41,049
10%	10.1%	20,417	20,574
Active Idle		0	0

See the JVM Instance Performance Report for additional details.

JVM 'localhost.014' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			177,043
Calibration 2			209,758
Calibration 3			209,198
ssj_ops@calibrated=209,478
100%	99.9%	209,478	209,223
90%	89.9%	188,530	188,260
80%	80.7%	167,582	169,022
70%	71.1%	146,635	148,914
60%	60.0%	125,687	125,604
50%	50.2%	104,739	105,104
40%	40.1%	83,791	83,979
30%	29.6%	62,843	62,088
20%	20.1%	41,896	42,105
10%	10.1%	20,948	21,070
Active Idle		0	0

See the JVM Instance Performance Report for additional details.

JVM 'localhost.015' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			159,383
Calibration 2			193,933
Calibration 3			194,309
ssj_ops@calibrated=194,121
100%	99.6%	194,121	193,422
90%	90.5%	174,709	175,692
80%	81.0%	155,297	157,279
70%	69.8%	135,885	135,587
60%	60.0%	116,473	116,526
50%	50.1%	97,061	97,249
40%	39.3%	77,649	76,340
30%	29.9%	58,236	57,961
20%	19.7%	38,824	38,274
10%	10.2%	19,412	19,800
Active Idle		0	0

See the JVM Instance Performance Report for additional details.

JVM 'localhost.016' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			176,253
Calibration 2			204,564
Calibration 3			204,990
ssj_ops@calibrated=204,777
100%	99.4%	204,777	203,555
90%	89.6%	184,299	183,524
80%	80.1%	163,822	163,959
70%	70.2%	143,344	143,700
60%	59.9%	122,866	122,595
50%	50.7%	102,388	103,910
40%	40.2%	81,911	82,244
30%	30.2%	61,433	61,825
20%	20.0%	40,955	40,880
10%	9.9%	20,478	20,172
Active Idle		0	0

See the JVM Instance Performance Report for additional details.

http://www.spec.org - info@spec.org

SPECpower_ssj2008 Reporter Version: [SSJ 1.2.10, May 9, 2012]
