Hewlett Packard Enterprise ProLiant DL110 Gen10 Plus SPECpower_ssj2008 = 9,247 overall ssj_ops/watt
Test Sponsor: Hewlett Packard Enterprise SPEC License #: 3 Test Method: Single Node
Tested By: Hewlett Packard Enterprise Test Location: Houston, TX, USA Test Date: Jul 26, 2021
Hardware Availability: Aug-2021 Software Availability: Jun-2021 Publication: Aug 31, 2021
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Average Active Power (W) Minimum Ambient Temperature (°C)
Calibration 1 265 20.4
Calibration 2 309 20.4
Calibration 3 307 20.4
100% 307 20.4
90% 287 20.4
80% 250 20.5
70% 197 20.7
60% 172 20.6
50% 156 20.7
40% 143 20.7
30% 130 20.6
20% 116 20.5
10% 104 20.7
Active Idle 93.8 20.6

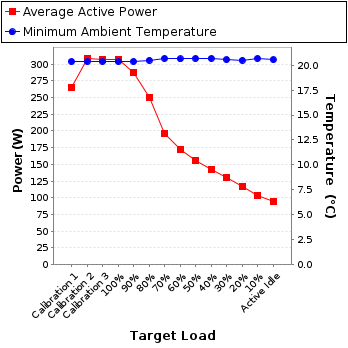

Graph of power and temperature
Measurement Devices
Power Analyzer pwr1
Hardware Vendor: Yokogawa
Model: WT210
Serial Number: 91K218965
Connectivity: GPIB vi NI GPIB-USB-HS
Input Connection: Default
Metrology Institute: NIST
Accredited by: TRANSCAT
Calibration Label: 5-FU771-60-1
Date of Calibration: 23-Aug-2020
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
PTDaemon Version: 1.9.2-3976349f-20201208
Setup Description: Connected to SUT Power Supply 1
Temperature Sensor temp1
Hardware Vendor: Digi International Inc.
Model: Watchport/H
Driver Version: 5.70.105.0
Connectivity: USB
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
Setup Description: 5 mm in front of SUT main intake
Notes
None
Power Details for Device pwr1
Target Load Voltage (V) Current (A) Avg Power Factor Avg Active Power (W) Power Measurement Uncertainty (%)
Avg Range Avg Range
Calibration 1 214 300.0 1.42 2.0 0.877 265 0.5%
Calibration 2 212 300.0 1.60 2.0 0.909 309 0.4%
Calibration 3 212 300.0 1.60 2.0 0.908 307 0.4%
100% 212 300.0 1.60 2.0 0.908 307 0.4%
90% 212 300.0 1.52 2.0 0.894 287 0.5%
80% 212 300.0 1.36 2.0 0.871 250 0.5%
70% 212 300.0 1.11 2.0 0.836 197 0.6%
60% 212 300.0 1.00 2.0 0.812 172 0.6%
50% 212 300.0 0.926 2.0 0.795 156 0.7%
40% 212 300.0 0.866 1.0 0.780 143 0.5%
30% 212 300.0 0.790 1.0 0.778 130 0.5%
20% 212 300.0 0.720 1.0 0.762 116 0.6%
10% 212 300.0 0.657 1.0 0.744 104 0.6%
Active Idle 212 300.0 0.606 1.0 0.729 93.8 0.7%

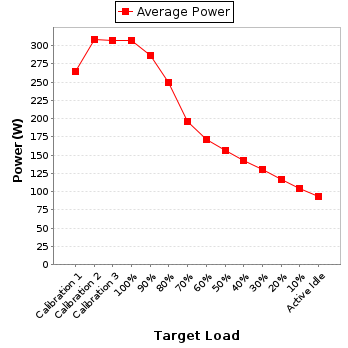

Power details for pwr1
