Inspur Corporation Inspur NF5280M5 | ssj_ops@100% = 82,960 | ||||
Test Sponsor: | Inspur Corporation | SPEC License #: | 3358 | Test Method: | Single Node |
Tested By: | Inspur Corporation | Test Location: | JINAN, CHINA | Test Date: | Jul 2, 2021 |
Hardware Availability: | May-2021 | Software Availability: | Jan-2021 | Publication: | Aug 19, 2021 |
System Source: | Single Supplier | System Designation: | Server | Power Provisioning: | Line-powered |

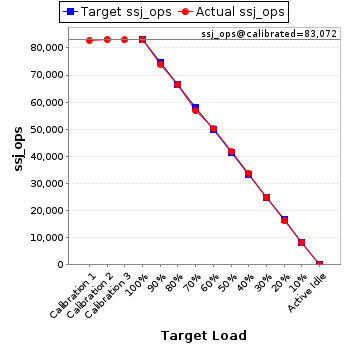

Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 82,823 | ||
Calibration 2 | 83,207 | ||
Calibration 3 | 82,938 | ||
ssj_ops@calibrated=83,072 | |||
100% | 99.9% | 83,072 | 82,960 |
90% | 89.1% | 74,765 | 74,020 |
80% | 80.1% | 66,458 | 66,501 |
70% | 68.5% | 58,151 | 56,905 |
60% | 60.3% | 49,843 | 50,117 |
50% | 50.3% | 41,536 | 41,816 |
40% | 40.7% | 33,229 | 33,819 |
30% | 30.0% | 24,922 | 24,899 |
20% | 19.5% | 16,614 | 16,168 |
10% | 9.8% | 8,307 | 8,162 |
Active Idle | 0 | 0 |
Set Identifier: | sut |
Set Description: | System Under Test |
# of Identical Nodes: | 1 |
Comment: | Single Node |
Hardware | |
---|---|
Hardware Vendor: | Inspur Corporation |
Model: | Inspur NF5280M5 |
Form Factor: | 2U |
CPU Name: | Intel Xeon Silver 4214 |
CPU Characteristics: | 12-Core, 2.20 GHz, 16.5MB L3 Cache |
CPU Frequency (MHz): | 2200 |
CPU(s) Enabled: | 24 cores, 2 chips, 12 cores/chip |
Hardware Threads: | 48 (2 / core) |
CPU(s) Orderable: | 1,2 chips |
Primary Cache: | 32 KB I + 32 KB D on chip per core |
Secondary Cache: | 1 MB I+D on chip per chip |
Tertiary Cache: | 16896 KB I+D on chip per chip |
Other Cache: | None |
Memory Amount (GB): | 384 |
# and size of DIMM: | 12 x 32 GB |
Memory Details: | 12 x SA_32G_DDR4-2400ER_2R4_B36F_M393A4K40BB1-CRC;slots CPU0_C0D0,CPU0_C1D0, CPU0_C2D0, CPU0_C3D0, CPU0_C4D0, CPU0_C5D0, CPU1_C0D0,CPU1_C1D0, CPU1_C2D0, CPU1_C3D0, CPU1_C4D0, CPU1_C5D0 populated |
Power Supply Quantity and Rating (W): | 1 x 550 |
Power Supply Details: | Delta DPS-550AB-11 A Platinum P/N:ZMPS1000105 |
Disk Drive: | SSD_I_480G_SSDSC2BB480G7_S3520 * 2, PN:ZMHD1000273; Intel_SSD_S4500_1.92T_SSDSC2KB019T7 * 4, PN:ZMHD1000389 |
Disk Controller: | INSPUR Adaptec PM 8222-SmartHBA , PN:YZSA-01188-101 |
# and type of Network Interface Cards (NICs) Installed: | 1 x Intel I350 Gigabit Ethernet controller with 2 port; |
NICs Enabled in Firmware / OS / Connected: | 2/2/1 |
Network Speed (Mbit): | 1000 |
Keyboard: | None |
Mouse: | None |
Monitor: | None |
Optical Drives: | Yes |
Other Hardware: | 1 x NIC_Inspur_OCP 25G_CX4LX_25G_LC_PCI-EX8_2,PN:YZNC-00762-101; 2 x G_NIC_INSPUR_82599ES_10G_LC_PCIEX8_2_XR,PN:YZCA-00431-103; 2 x SFP_Hisense_LC_LTF8505-BC+_25G_SW_MM ,PN: V075013000000000; 4 x SFP_Hisense_LC_LTF8502-BC+_10G_SW_MM, PN: V07500P000000000 |
Software | |
---|---|
Power Management: | Balanced Mode enabled in OS |
Operating System (OS): | Windows Server 2019 Datacenter |
OS Version: | Version 1809 (OS Build 17763.1728) |
Filesystem: | NTFS |
JVM Vendor: | Oracle Corporation |
JVM Version: | Oracle Java HotSpot(TM) 64-Bit Server VM 18.9 (build 11.0.9+7-LTS, mixed mode) |
JVM Command-line Options: | -server -Xmn1700m -Xms1950m -Xmx1950m -XX:SurvivorRatio=1 -XX:TargetSurvivorRatio=99 -XX:ParallelGCThreads=2 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=4 -XX:LoopUnrollLimit=45 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:InlineSmallCode=3900 -XX:MaxInlineSize=270 -XX:FreqInlineSize=2500 -XX:+UseLargePages -XX:+UseParallelOldGC -XX:UseAVX=1 -XX:-UseAdaptiveSizePolicy -XX:-ThreadLocalHandshakes |
JVM Affinity: | start /NODE [0,1,2,3] /AFFINITY [3,C,30,C0,300,C00] |
JVM Instances: | 24 |
JVM Initial Heap (MB): | 1950 |
JVM Maximum Heap (MB): | 1950 |
JVM Address Bits: | 64 |
Boot Firmware Version: | 4.1.19 |
Management Firmware Version: | 4.26.9 |
Workload Version: | SSJ 1.2.10 |
Director Location: | Controller |
Other Software: | Microsoft Windows KB4598296 |
Target Load | Actual Load | Transaction Type | Count | Total Heap (MB) |
---|---|---|---|---|
Calibration 1 | New Order | 6,033,254 | 1,384 | |
Payment | 6,033,254 | |||
Order Status | 603,326 | |||
Delivery | 603,326 | |||
Stock Level | 603,325 | |||
Customer Report | 6,033,259 | |||
Calibration 2 | New Order | 6,056,121 | 1,384 | |
Payment | 6,056,120 | |||
Order Status | 605,612 | |||
Delivery | 605,613 | |||
Stock Level | 605,612 | |||
Customer Report | 6,056,117 | |||
Calibration 3 | New Order | 6,036,116 | 1,384 | |
Payment | 6,036,119 | |||
Order Status | 603,611 | |||
Delivery | 603,612 | |||
Stock Level | 603,611 | |||
Customer Report | 6,036,121 | |||
100% | 99.9% | New Order | 6,033,839 | 1,384 |
Payment | 6,033,832 | |||
Order Status | 603,385 | |||
Delivery | 603,382 | |||
Stock Level | 603,383 | |||
Customer Report | 6,033,831 | |||
90% | 89.1% | New Order | 5,383,629 | 1,384 |
Payment | 5,383,630 | |||
Order Status | 538,364 | |||
Delivery | 538,364 | |||
Stock Level | 538,362 | |||
Customer Report | 5,383,636 | |||
80% | 80.1% | New Order | 4,836,672 | 1,384 |
Payment | 4,836,673 | |||
Order Status | 483,667 | |||
Delivery | 483,668 | |||
Stock Level | 483,668 | |||
Customer Report | 4,836,669 | |||
70% | 68.5% | New Order | 4,138,877 | 1,384 |
Payment | 4,138,877 | |||
Order Status | 413,888 | |||
Delivery | 413,888 | |||
Stock Level | 413,886 | |||
Customer Report | 4,138,873 | |||
60% | 60.3% | New Order | 3,646,223 | 1,384 |
Payment | 3,646,218 | |||
Order Status | 364,623 | |||
Delivery | 364,622 | |||
Stock Level | 364,622 | |||
Customer Report | 3,646,220 | |||
50% | 50.3% | New Order | 3,041,318 | 1,384 |
Payment | 3,041,316 | |||
Order Status | 304,131 | |||
Delivery | 304,133 | |||
Stock Level | 304,132 | |||
Customer Report | 3,041,315 | |||
40% | 40.7% | New Order | 2,459,700 | 1,384 |
Payment | 2,459,692 | |||
Order Status | 245,971 | |||
Delivery | 245,970 | |||
Stock Level | 245,969 | |||
Customer Report | 2,459,698 | |||
30% | 30.0% | New Order | 1,810,937 | 1,384 |
Payment | 1,810,939 | |||
Order Status | 181,093 | |||
Delivery | 181,094 | |||
Stock Level | 181,094 | |||
Customer Report | 1,810,939 | |||
20% | 19.5% | New Order | 1,175,915 | 1,384 |
Payment | 1,175,916 | |||
Order Status | 117,591 | |||
Delivery | 117,592 | |||
Stock Level | 117,592 | |||
Customer Report | 1,175,913 | |||
10% | 9.8% | New Order | 593,638 | 1,384 |
Payment | 593,639 | |||
Order Status | 59,363 | |||
Delivery | 59,363 | |||
Stock Level | 59,363 | |||
Customer Report | 593,634 | |||
Active Idle | New Order | 0 | 1,384 | |
Payment | 0 | |||
Order Status | 0 | |||
Delivery | 0 | |||
Stock Level | 0 | |||
Customer Report | 0 |
