Inspur Corporation Inspur NF5280M5 ssj_ops@100% = 80,489
Test Sponsor: Inspur Corporation SPEC License #: 3358 Test Method: Single Node
Tested By: Inspur Corporation Test Location: JINAN, CHINA Test Date: Jul 2, 2021
Hardware Availability: May-2021 Software Availability: Jan-2021 Publication: Aug 19, 2021
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     81,825
Calibration 2     81,398
Calibration 3     81,449
ssj_ops@calibrated=81,423
100% 98.9% 81,423 80,489
90% 89.9% 73,281 73,193
80% 80.3% 65,139 65,410
70% 70.5% 56,996 57,439
60% 60.7% 48,854 49,454
50% 49.6% 40,712 40,398
40% 39.9% 32,569 32,514
30% 31.0% 24,427 25,211
20% 20.0% 16,285 16,257
10% 10.0% 8,142 8,131
Active Idle   0 0

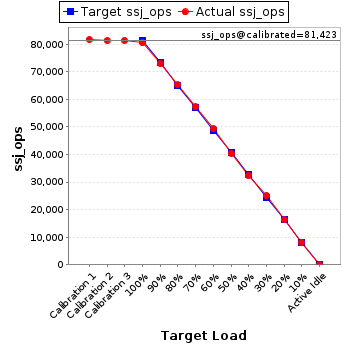

Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: System Under Test
# of Identical Nodes: 1
Comment: Single Node
Hardware
Hardware Vendor: Inspur Corporation
Model: Inspur NF5280M5
Form Factor: 2U
CPU Name: Intel Xeon Silver 4214
CPU Characteristics: 12-Core, 2.20 GHz, 16.5MB L3 Cache
CPU Frequency (MHz): 2200
CPU(s) Enabled: 24 cores, 2 chips, 12 cores/chip
Hardware Threads: 48 (2 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 1 MB I+D on chip per chip
Tertiary Cache: 16896 KB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 384
# and size of DIMM: 12 x 32 GB
Memory Details: 12 x SA_32G_DDR4-2400ER_2R4_B36F_M393A4K40BB1-CRC;slots CPU0_C0D0,CPU0_C1D0, CPU0_C2D0, CPU0_C3D0, CPU0_C4D0, CPU0_C5D0, CPU1_C0D0,CPU1_C1D0, CPU1_C2D0, CPU1_C3D0, CPU1_C4D0, CPU1_C5D0 populated
Power Supply Quantity and Rating (W): 1 x 550
Power Supply Details: Delta DPS-550AB-11 A Platinum P/N:ZMPS1000105
Disk Drive: SSD_I_480G_SSDSC2BB480G7_S3520 * 2, PN:ZMHD1000273; Intel_SSD_S4500_1.92T_SSDSC2KB019T7 * 4, PN:ZMHD1000389
Disk Controller: INSPUR Adaptec PM 8222-SmartHBA , PN:YZSA-01188-101
# and type of Network Interface Cards (NICs) Installed: 1 x Intel I350 Gigabit Ethernet controller with 2 port;
NICs Enabled in Firmware / OS / Connected: 2/2/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: Yes
Other Hardware: 1 x NIC_Inspur_OCP 25G_CX4LX_25G_LC_PCI-EX8_2,PN:YZNC-00762-101; 2 x G_NIC_INSPUR_82599ES_10G_LC_PCIEX8_2_XR,PN:YZCA-00431-103; 2 x SFP_Hisense_LC_LTF8505-BC+_25G_SW_MM ,PN: V075013000000000; 4 x SFP_Hisense_LC_LTF8502-BC+_10G_SW_MM, PN: V07500P000000000
Software
Power Management: Balanced Mode enabled in OS
Operating System (OS): Windows Server 2019 Datacenter
OS Version: Version 1809 (OS Build 17763.1728)
Filesystem: NTFS
JVM Vendor: Oracle Corporation
JVM Version: Oracle Java HotSpot(TM) 64-Bit Server VM 18.9 (build 11.0.9+7-LTS, mixed mode)
JVM Command-line Options: -server -Xmn1700m -Xms1950m -Xmx1950m -XX:SurvivorRatio=1 -XX:TargetSurvivorRatio=99 -XX:ParallelGCThreads=2 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=4 -XX:LoopUnrollLimit=45 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:InlineSmallCode=3900 -XX:MaxInlineSize=270 -XX:FreqInlineSize=2500 -XX:+UseLargePages -XX:+UseParallelOldGC -XX:UseAVX=1 -XX:-UseAdaptiveSizePolicy -XX:-ThreadLocalHandshakes
JVM Affinity: start /NODE [0,1,2,3] /AFFINITY [3,C,30,C0,300,C00]
JVM Instances: 24
JVM Initial Heap (MB): 1950
JVM Maximum Heap (MB): 1950
JVM Address Bits: 64
Boot Firmware Version: 4.1.19
Management Firmware Version: 4.26.9
Workload Version: SSJ 1.2.10
Director Location: Controller
Other Software: Microsoft Windows KB4598296
Boot Firmware Settings
Management Firmware Settings
none
System Under Test Notes
Notes
SPECpower_ssj.props input.load_level.number_warehouses set to 48 due to a known inconsistency in processor reporting with this Java version
Performance Details
Target Load Actual Load Transaction Type Count Total Heap (MB)
Calibration 1 New Order 5,965,610 1,384
Payment 5,965,611
Order Status 596,562
Delivery 596,561
Stock Level 596,562
Customer Report 5,965,612
Calibration 2 New Order 5,924,062 1,384
Payment 5,924,062
Order Status 592,407
Delivery 592,406
Stock Level 592,405
Customer Report 5,924,062
Calibration 3 New Order 5,928,158 1,384
Payment 5,928,162
Order Status 592,816
Delivery 592,817
Stock Level 592,816
Customer Report 5,928,161
100% 98.9% New Order 5,854,087 1,384
Payment 5,854,083
Order Status 585,409
Delivery 585,409
Stock Level 585,408
Customer Report 5,854,087
90% 89.9% New Order 5,326,865 1,384
Payment 5,326,862
Order Status 532,687
Delivery 532,686
Stock Level 532,685
Customer Report 5,326,862
80% 80.3% New Order 4,757,228 1,384
Payment 4,757,224
Order Status 475,722
Delivery 475,722
Stock Level 475,723
Customer Report 4,757,229
70% 70.5% New Order 4,177,587 1,384
Payment 4,177,580
Order Status 417,758
Delivery 417,759
Stock Level 417,759
Customer Report 4,177,578
60% 60.7% New Order 3,596,950 1,384
Payment 3,596,945
Order Status 359,694
Delivery 359,695
Stock Level 359,695
Customer Report 3,596,941
50% 49.6% New Order 2,938,182 1,384
Payment 2,938,179
Order Status 293,819
Delivery 293,817
Stock Level 293,818
Customer Report 2,938,181
40% 39.9% New Order 2,364,752 1,384
Payment 2,364,750
Order Status 236,475
Delivery 236,475
Stock Level 236,475
Customer Report 2,364,753
30% 31.0% New Order 1,833,640 1,384
Payment 1,833,636
Order Status 183,364
Delivery 183,363
Stock Level 183,363
Customer Report 1,833,635
20% 20.0% New Order 1,182,426 1,384
Payment 1,182,423
Order Status 118,241
Delivery 118,242
Stock Level 118,242
Customer Report 1,182,426
10% 10.0% New Order 591,356 1,384
Payment 591,355
Order Status 59,136
Delivery 59,135
Stock Level 59,135
Customer Report 591,356
Active Idle New Order 0 1,384
Payment 0
Order Status 0
Delivery 0
Stock Level 0
Customer Report 0
