Inspur Corporation Inspur NF5280M5 | ssj_ops@100% = 81,977 | ||||
Test Sponsor: | Inspur Corporation | SPEC License #: | 3358 | Test Method: | Single Node |
Tested By: | Inspur Corporation | Test Location: | JINAN, CHINA | Test Date: | Jul 2, 2021 |
Hardware Availability: | May-2021 | Software Availability: | Jan-2021 | Publication: | Aug 19, 2021 |
System Source: | Single Supplier | System Designation: | Server | Power Provisioning: | Line-powered |

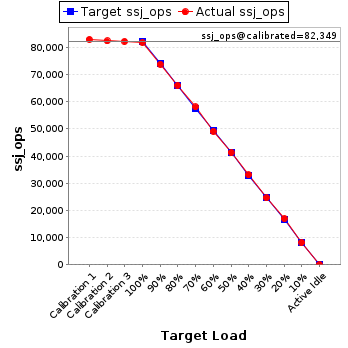

Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 83,049 | ||
Calibration 2 | 82,402 | ||
Calibration 3 | 82,297 | ||
ssj_ops@calibrated=82,349 | |||
100% | 99.5% | 82,349 | 81,977 |
90% | 89.7% | 74,114 | 73,851 |
80% | 80.3% | 65,879 | 66,111 |
70% | 70.6% | 57,644 | 58,123 |
60% | 59.7% | 49,410 | 49,189 |
50% | 50.2% | 41,175 | 41,365 |
40% | 40.2% | 32,940 | 33,129 |
30% | 29.9% | 24,705 | 24,603 |
20% | 20.7% | 16,470 | 17,045 |
10% | 10.0% | 8,235 | 8,254 |
Active Idle | 0 | 0 |
Set Identifier: | sut |
Set Description: | System Under Test |
# of Identical Nodes: | 1 |
Comment: | Single Node |
Hardware | |
---|---|
Hardware Vendor: | Inspur Corporation |
Model: | Inspur NF5280M5 |
Form Factor: | 2U |
CPU Name: | Intel Xeon Silver 4214 |
CPU Characteristics: | 12-Core, 2.20 GHz, 16.5MB L3 Cache |
CPU Frequency (MHz): | 2200 |
CPU(s) Enabled: | 24 cores, 2 chips, 12 cores/chip |
Hardware Threads: | 48 (2 / core) |
CPU(s) Orderable: | 1,2 chips |
Primary Cache: | 32 KB I + 32 KB D on chip per core |
Secondary Cache: | 1 MB I+D on chip per chip |
Tertiary Cache: | 16896 KB I+D on chip per chip |
Other Cache: | None |
Memory Amount (GB): | 384 |
# and size of DIMM: | 12 x 32 GB |
Memory Details: | 12 x SA_32G_DDR4-2400ER_2R4_B36F_M393A4K40BB1-CRC;slots CPU0_C0D0,CPU0_C1D0, CPU0_C2D0, CPU0_C3D0, CPU0_C4D0, CPU0_C5D0, CPU1_C0D0,CPU1_C1D0, CPU1_C2D0, CPU1_C3D0, CPU1_C4D0, CPU1_C5D0 populated |
Power Supply Quantity and Rating (W): | 1 x 550 |
Power Supply Details: | Delta DPS-550AB-11 A Platinum P/N:ZMPS1000105 |
Disk Drive: | SSD_I_480G_SSDSC2BB480G7_S3520 * 2, PN:ZMHD1000273; Intel_SSD_S4500_1.92T_SSDSC2KB019T7 * 4, PN:ZMHD1000389 |
Disk Controller: | INSPUR Adaptec PM 8222-SmartHBA , PN:YZSA-01188-101 |
# and type of Network Interface Cards (NICs) Installed: | 1 x Intel I350 Gigabit Ethernet controller with 2 port; |
NICs Enabled in Firmware / OS / Connected: | 2/2/1 |
Network Speed (Mbit): | 1000 |
Keyboard: | None |
Mouse: | None |
Monitor: | None |
Optical Drives: | Yes |
Other Hardware: | 1 x NIC_Inspur_OCP 25G_CX4LX_25G_LC_PCI-EX8_2,PN:YZNC-00762-101; 2 x G_NIC_INSPUR_82599ES_10G_LC_PCIEX8_2_XR,PN:YZCA-00431-103; 2 x SFP_Hisense_LC_LTF8505-BC+_25G_SW_MM ,PN: V075013000000000; 4 x SFP_Hisense_LC_LTF8502-BC+_10G_SW_MM, PN: V07500P000000000 |
Software | |
---|---|
Power Management: | Balanced Mode enabled in OS |
Operating System (OS): | Windows Server 2019 Datacenter |
OS Version: | Version 1809 (OS Build 17763.1728) |
Filesystem: | NTFS |
JVM Vendor: | Oracle Corporation |
JVM Version: | Oracle Java HotSpot(TM) 64-Bit Server VM 18.9 (build 11.0.9+7-LTS, mixed mode) |
JVM Command-line Options: | -server -Xmn1700m -Xms1950m -Xmx1950m -XX:SurvivorRatio=1 -XX:TargetSurvivorRatio=99 -XX:ParallelGCThreads=2 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=4 -XX:LoopUnrollLimit=45 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:InlineSmallCode=3900 -XX:MaxInlineSize=270 -XX:FreqInlineSize=2500 -XX:+UseLargePages -XX:+UseParallelOldGC -XX:UseAVX=1 -XX:-UseAdaptiveSizePolicy -XX:-ThreadLocalHandshakes |
JVM Affinity: | start /NODE [0,1,2,3] /AFFINITY [3,C,30,C0,300,C00] |
JVM Instances: | 24 |
JVM Initial Heap (MB): | 1950 |
JVM Maximum Heap (MB): | 1950 |
JVM Address Bits: | 64 |
Boot Firmware Version: | 4.1.19 |
Management Firmware Version: | 4.26.9 |
Workload Version: | SSJ 1.2.10 |
Director Location: | Controller |
Other Software: | Microsoft Windows KB4598296 |
Target Load | Actual Load | Transaction Type | Count | Total Heap (MB) |
---|---|---|---|---|
Calibration 1 | New Order | 6,048,941 | 1,384 | |
Payment | 6,048,944 | |||
Order Status | 604,893 | |||
Delivery | 604,893 | |||
Stock Level | 604,894 | |||
Customer Report | 6,048,937 | |||
Calibration 2 | New Order | 5,993,219 | 1,384 | |
Payment | 5,993,218 | |||
Order Status | 599,321 | |||
Delivery | 599,322 | |||
Stock Level | 599,322 | |||
Customer Report | 5,993,221 | |||
Calibration 3 | New Order | 5,993,727 | 1,384 | |
Payment | 5,993,729 | |||
Order Status | 599,372 | |||
Delivery | 599,372 | |||
Stock Level | 599,372 | |||
Customer Report | 5,993,729 | |||
100% | 99.5% | New Order | 5,969,554 | 1,384 |
Payment | 5,969,550 | |||
Order Status | 596,957 | |||
Delivery | 596,955 | |||
Stock Level | 596,956 | |||
Customer Report | 5,969,558 | |||
90% | 89.7% | New Order | 5,371,965 | 1,384 |
Payment | 5,371,964 | |||
Order Status | 537,196 | |||
Delivery | 537,195 | |||
Stock Level | 537,195 | |||
Customer Report | 5,371,966 | |||
80% | 80.3% | New Order | 4,812,249 | 1,384 |
Payment | 4,812,247 | |||
Order Status | 481,225 | |||
Delivery | 481,225 | |||
Stock Level | 481,224 | |||
Customer Report | 4,812,248 | |||
70% | 70.6% | New Order | 4,227,206 | 1,384 |
Payment | 4,227,203 | |||
Order Status | 422,722 | |||
Delivery | 422,721 | |||
Stock Level | 422,720 | |||
Customer Report | 4,227,209 | |||
60% | 59.7% | New Order | 3,577,545 | 1,384 |
Payment | 3,577,536 | |||
Order Status | 357,753 | |||
Delivery | 357,754 | |||
Stock Level | 357,754 | |||
Customer Report | 3,577,544 | |||
50% | 50.2% | New Order | 3,008,504 | 1,384 |
Payment | 3,008,502 | |||
Order Status | 300,850 | |||
Delivery | 300,851 | |||
Stock Level | 300,850 | |||
Customer Report | 3,008,504 | |||
40% | 40.2% | New Order | 2,409,477 | 1,384 |
Payment | 2,409,479 | |||
Order Status | 240,947 | |||
Delivery | 240,949 | |||
Stock Level | 240,947 | |||
Customer Report | 2,409,479 | |||
30% | 29.9% | New Order | 1,789,395 | 1,384 |
Payment | 1,789,397 | |||
Order Status | 178,940 | |||
Delivery | 178,939 | |||
Stock Level | 178,939 | |||
Customer Report | 1,789,390 | |||
20% | 20.7% | New Order | 1,239,697 | 1,384 |
Payment | 1,239,697 | |||
Order Status | 123,969 | |||
Delivery | 123,970 | |||
Stock Level | 123,969 | |||
Customer Report | 1,239,698 | |||
10% | 10.0% | New Order | 600,305 | 1,384 |
Payment | 600,303 | |||
Order Status | 60,031 | |||
Delivery | 60,030 | |||
Stock Level | 60,030 | |||
Customer Report | 600,301 | |||
Active Idle | New Order | 0 | 1,384 | |
Payment | 0 | |||
Order Status | 0 | |||
Delivery | 0 | |||
Stock Level | 0 | |||
Customer Report | 0 |
