SPECpower_ssj2008 JVM Instance 'WIN-2776QBOHVOT.028' Performance Report

SPECpower_ssj2008

JVM Instance 'WIN-2776QBOHVOT.028' Performance Report

Inspur Corporation Inspur NF5180M6			ssj_ops@100% = 114,276
Test Sponsor:	Inspur Corporation	SPEC License #:	3358	Test Method:	Single Node
Tested By:	Inspur Corporation	Test Location:	JINAN, CHINA	Test Date:	Jun 29, 2021
Hardware Availability:	May-2021	Software Availability:	Jan-2021	Publication:	Jul 29, 2021
System Source:	Single Supplier	System Designation:	Server	Power Provisioning:	Line-powered

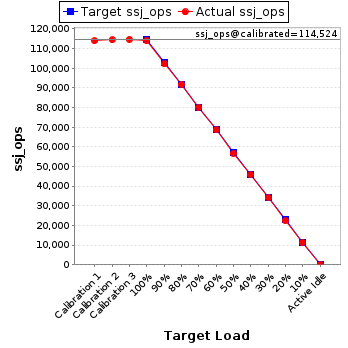

Benchmark Results Summary

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			113,927
Calibration 2			114,380
Calibration 3			114,667
ssj_ops@calibrated=114,524
100%	99.8%	114,524	114,276
90%	89.2%	103,071	102,184
80%	80.1%	91,619	91,688
70%	70.0%	80,167	80,185
60%	59.9%	68,714	68,571
50%	49.6%	57,262	56,772
40%	39.9%	45,809	45,700
30%	30.0%	34,357	34,308
20%	19.6%	22,905	22,396
10%	9.9%	11,452	11,309
Active Idle		0	0

System Under Test

Set: 'sut'

Set Identifier:	sut
Set Description:	System Under Test
# of Identical Nodes:	1
Comment:	Single Node

Hardware
Hardware Vendor:	Inspur Corporation
Model:	Inspur NF5180M6
Form Factor:	1U
CPU Name:	Intel Xeon Gold 6336Y Processor
CPU Characteristics:	24-Core, 2.4GHz, 36MB L3 Cache
CPU Frequency (MHz):	2400
CPU(s) Enabled:	48 cores, 2 chips, 24 cores/chip
Hardware Threads:	96 (2 / core)
CPU(s) Orderable:	1,2 chips
Primary Cache:	32 KB I + 48 KB D on chip per core
Secondary Cache:	1280 KB I+D on chip per chip
Tertiary Cache:	36 MB I+D on chip per chip
Other Cache:	None
Memory Amount (GB):	256
# and size of DIMM:	16 x 16 GB
Memory Details:	16 x SA_16G_DDR4-3200ER_2R8_D18F;slots CPU0_C0D0,CPU0_C1D0, CPU0_C2D0, CPU0_C3D0, CPU0_C4D0, CPU0_C5D0, CPU0_C6D0, CPU0_C7D0, CPU1_C0D0,CPU1_C1D0, CPU1_C2D0, CPU1_C3D0, CPU1_C4D0, CPU1_C5D0, CPU1_C6D0, CPU1_C7D0 populated
Power Supply Quantity and Rating (W):	1 x 800
Power Supply Details:	1 x DELTA_M_DPS-800AB-58A_800W_1U_P,PN:V03105C000000000
Disk Drive:	1 x I_480TD_SSDSC2KG480G8_T2_6_132_S461,PN:V0231P0000000000; 1 x I_3.84KTD_SSDSC2KB038T8_T2_6_132_451,PN:V0231P6000000000
Disk Controller:	Integrated SAS controller
# and type of Network Interface Cards (NICs) Installed:	1 x Intel I350 Gigabit Ethernet controller
NICs Enabled in Firmware / OS / Connected:	2/2/1
Network Speed (Mbit):	1000
Keyboard:	None
Mouse:	None
Monitor:	None
Optical Drives:	No
Other Hardware:	None

Software
Power Management:	Balanced Mode enabled in OS
Operating System (OS):	Windows Server 2019 Datacenter
OS Version:	Version 1809 (OS Build 17763.1728)
Filesystem:	NTFS
JVM Vendor:	Oracle Corporation
JVM Version:	Oracle Java HotSpot(TM) 64-Bit Server VM 18.9 (build 11.0.9+7-LTS, mixed mode)
JVM Command-line Options:	-server -Xmn1700m -Xms1950m -Xmx1950m -XX:SurvivorRatio=1 -XX:TargetSurvivorRatio=99 -XX:ParallelGCThreads=2 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=4 -XX:LoopUnrollLimit=45 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:InlineSmallCode=3900 -XX:MaxInlineSize=270 -XX:FreqInlineSize=2500 -XX:+UseLargePages -XX:+UseParallelOldGC -XX:UseAVX=1 -XX:-UseAdaptiveSizePolicy -XX:-ThreadLocalHandshakes
JVM Affinity:	start /node [0,1,2,3] /affinity [3,C,30,C0,300,C00,3000,C000,30000,C0000,300000,C00000]
JVM Instances:	48
JVM Initial Heap (MB):	1950
JVM Maximum Heap (MB):	1950
JVM Address Bits:	64
Boot Firmware Version:	05.00.01
Management Firmware Version:	4.12.04
Workload Version:	SSJ 1.2.10
Director Location:	Controller
Other Software:	Microsoft Windows KB4598296

Boot Firmware Settings

Set "Hardware Prefetcher = Disabled" in BIOS.
Set "Adjacent Cache Prefetcher = Disabled" in BIOS.
Set "DCU Streamer Prefetcher = Disabled" in BIOS.
Set "Turbo mode = Disabled" in BIOS
Set "Sub NUMA Cluster (SNC) = Enable 2-cluster" in BIOS
Set "Package C-State = C6(retention) State" in BIOS
Set "Monitor/Mwait = Enabled" in BIOS
Set "Memory Patrol Scrub = Disabled"
Set "Energy Performance BIAS = Balanced Power" in BIOS

Management Firmware Settings

none

System Under Test Notes

Set "Turn off hard disk after = 1 Minute" in OS.
Minimum Processor State:0%.
Maximum Processor State:100%.
Using the local security settings console, "lock pages in memory" was enabled for the user running the benchmark.
Benchmark was started via Windows Remote Desktop Connection.
Each JVM instance was affinitized to 2 logical processors
Yes: The test sponsor attests, as of date of publication, that CVE-2017-5754 (Meltdown) is mitigated in the system as tested and documented
Yes: The test sponsor attests, as of date of publication, that CVE-2017-5753 (Spectre variant 1) is mitigated in the system as tested and documented
Yes: The test sponsor attests, as of date of publication, that CVE-2017-5715 (Spectre variant 2) is mitigated in the system as tested and documented
reg add "HKEY_LOCAL_MACHINE\SYSTEM\CurrentControlSet\Control\Session Manager\Memory Management" /v FeatureSettingsOverride /t REG_DWORD /d 0 /f
reg add "HKEY_LOCAL_MACHINE\SYSTEM\CurrentControlSet\Control\Session Manager\Memory Management" /v FeatureSettingsOverrideMask /t REG_DWORD /d 3 /f

Notes

SPECpower_ssj.props input.load_level.number_warehouses set to 96 due to a known inconsistency in processor reporting with this Java version

Performance Details

Target Load	Actual Load	Transaction Type	Count	Total Heap (MB)
Calibration 1		New Order	8,296,808	1,384
		Payment	8,296,810
		Order Status	829,681
		Delivery	829,681
		Stock Level	829,681
		Customer Report	8,296,813
Calibration 2		New Order	8,324,909	1,384
		Payment	8,324,910
		Order Status	832,490
		Delivery	832,490
		Stock Level	832,490
		Customer Report	8,324,905
Calibration 3		New Order	8,341,107	1,384
		Payment	8,341,105
		Order Status	834,109
		Delivery	834,112
		Stock Level	834,111
		Customer Report	8,341,107
100%	99.8%	New Order	8,315,965	1,384
		Payment	8,315,967
		Order Status	831,596
		Delivery	831,596
		Stock Level	831,596
		Customer Report	8,315,963
90%	89.2%	New Order	7,433,005	1,384
		Payment	7,433,003
		Order Status	743,299
		Delivery	743,300
		Stock Level	743,301
		Customer Report	7,433,004
80%	80.1%	New Order	6,672,385	1,384
		Payment	6,672,387
		Order Status	667,238
		Delivery	667,238
		Stock Level	667,239
		Customer Report	6,672,390
70%	70.0%	New Order	5,833,162	1,384
		Payment	5,833,161
		Order Status	583,317
		Delivery	583,317
		Stock Level	583,316
		Customer Report	5,833,162
60%	59.9%	New Order	4,989,604	1,384
		Payment	4,989,611
		Order Status	498,962
		Delivery	498,961
		Stock Level	498,961
		Customer Report	4,989,607
50%	49.6%	New Order	4,129,088	1,384
		Payment	4,129,094
		Order Status	412,911
		Delivery	412,909
		Stock Level	412,908
		Customer Report	4,129,089
40%	39.9%	New Order	3,323,796	1,384
		Payment	3,323,796
		Order Status	332,379
		Delivery	332,379
		Stock Level	332,380
		Customer Report	3,323,792
30%	30.0%	New Order	2,495,165	1,384
		Payment	2,495,169
		Order Status	249,516
		Delivery	249,516
		Stock Level	249,518
		Customer Report	2,495,166
20%	19.6%	New Order	1,628,776	1,384
		Payment	1,628,773
		Order Status	162,878
		Delivery	162,877
		Stock Level	162,878
		Customer Report	1,628,774
10%	9.9%	New Order	822,540	1,384
		Payment	822,541
		Order Status	82,254
		Delivery	82,254
		Stock Level	82,255
		Customer Report	822,542
Active Idle		New Order	0	1,384
		Payment	0
		Order Status	0
		Delivery	0
		Stock Level	0
		Customer Report	0
