SPECpower_ssj2008 JVM Instance 'WIN-2776QBOHVOT.005' Performance Report

SPECpower_ssj2008

JVM Instance 'WIN-2776QBOHVOT.005' Performance Report

Inspur Corporation Inspur NF5180M6			ssj_ops@100% = 110,569
Test Sponsor:	Inspur Corporation	SPEC License #:	3358	Test Method:	Single Node
Tested By:	Inspur Corporation	Test Location:	JINAN, CHINA	Test Date:	Jun 29, 2021
Hardware Availability:	May-2021	Software Availability:	Jan-2021	Publication:	Jul 29, 2021
System Source:	Single Supplier	System Designation:	Server	Power Provisioning:	Line-powered

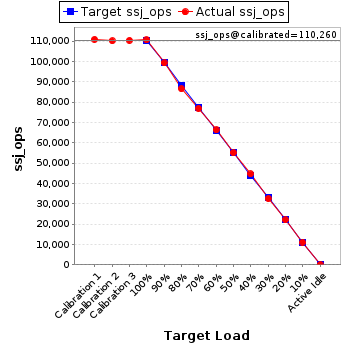

Benchmark Results Summary

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			110,883
Calibration 2			110,109
Calibration 3			110,411
ssj_ops@calibrated=110,260
100%	100.3%	110,260	110,569
90%	90.0%	99,234	99,241
80%	78.4%	88,208	86,497
70%	69.8%	77,182	76,929
60%	60.2%	66,156	66,373
50%	50.0%	55,130	55,109
40%	40.5%	44,104	44,630
30%	29.5%	33,078	32,550
20%	20.0%	22,052	22,026
10%	10.1%	11,026	11,120
Active Idle		0	0

System Under Test

Set: 'sut'

Set Identifier:	sut
Set Description:	System Under Test
# of Identical Nodes:	1
Comment:	Single Node

Hardware
Hardware Vendor:	Inspur Corporation
Model:	Inspur NF5180M6
Form Factor:	1U
CPU Name:	Intel Xeon Gold 6336Y Processor
CPU Characteristics:	24-Core, 2.4GHz, 36MB L3 Cache
CPU Frequency (MHz):	2400
CPU(s) Enabled:	48 cores, 2 chips, 24 cores/chip
Hardware Threads:	96 (2 / core)
CPU(s) Orderable:	1,2 chips
Primary Cache:	32 KB I + 48 KB D on chip per core
Secondary Cache:	1280 KB I+D on chip per chip
Tertiary Cache:	36 MB I+D on chip per chip
Other Cache:	None
Memory Amount (GB):	256
# and size of DIMM:	16 x 16 GB
Memory Details:	16 x SA_16G_DDR4-3200ER_2R8_D18F;slots CPU0_C0D0,CPU0_C1D0, CPU0_C2D0, CPU0_C3D0, CPU0_C4D0, CPU0_C5D0, CPU0_C6D0, CPU0_C7D0, CPU1_C0D0,CPU1_C1D0, CPU1_C2D0, CPU1_C3D0, CPU1_C4D0, CPU1_C5D0, CPU1_C6D0, CPU1_C7D0 populated
Power Supply Quantity and Rating (W):	1 x 800
Power Supply Details:	1 x DELTA_M_DPS-800AB-58A_800W_1U_P,PN:V03105C000000000
Disk Drive:	1 x I_480TD_SSDSC2KG480G8_T2_6_132_S461,PN:V0231P0000000000; 1 x I_3.84KTD_SSDSC2KB038T8_T2_6_132_451,PN:V0231P6000000000
Disk Controller:	Integrated SAS controller
# and type of Network Interface Cards (NICs) Installed:	1 x Intel I350 Gigabit Ethernet controller
NICs Enabled in Firmware / OS / Connected:	2/2/1
Network Speed (Mbit):	1000
Keyboard:	None
Mouse:	None
Monitor:	None
Optical Drives:	No
Other Hardware:	None

Software
Power Management:	Balanced Mode enabled in OS
Operating System (OS):	Windows Server 2019 Datacenter
OS Version:	Version 1809 (OS Build 17763.1728)
Filesystem:	NTFS
JVM Vendor:	Oracle Corporation
JVM Version:	Oracle Java HotSpot(TM) 64-Bit Server VM 18.9 (build 11.0.9+7-LTS, mixed mode)
JVM Command-line Options:	-server -Xmn1700m -Xms1950m -Xmx1950m -XX:SurvivorRatio=1 -XX:TargetSurvivorRatio=99 -XX:ParallelGCThreads=2 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=4 -XX:LoopUnrollLimit=45 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:InlineSmallCode=3900 -XX:MaxInlineSize=270 -XX:FreqInlineSize=2500 -XX:+UseLargePages -XX:+UseParallelOldGC -XX:UseAVX=1 -XX:-UseAdaptiveSizePolicy -XX:-ThreadLocalHandshakes
JVM Affinity:	start /node [0,1,2,3] /affinity [3,C,30,C0,300,C00,3000,C000,30000,C0000,300000,C00000]
JVM Instances:	48
JVM Initial Heap (MB):	1950
JVM Maximum Heap (MB):	1950
JVM Address Bits:	64
Boot Firmware Version:	05.00.01
Management Firmware Version:	4.12.04
Workload Version:	SSJ 1.2.10
Director Location:	Controller
Other Software:	Microsoft Windows KB4598296

Boot Firmware Settings

Set "Hardware Prefetcher = Disabled" in BIOS.
Set "Adjacent Cache Prefetcher = Disabled" in BIOS.
Set "DCU Streamer Prefetcher = Disabled" in BIOS.
Set "Turbo mode = Disabled" in BIOS
Set "Sub NUMA Cluster (SNC) = Enable 2-cluster" in BIOS
Set "Package C-State = C6(retention) State" in BIOS
Set "Monitor/Mwait = Enabled" in BIOS
Set "Memory Patrol Scrub = Disabled"
Set "Energy Performance BIAS = Balanced Power" in BIOS

Management Firmware Settings

none

System Under Test Notes

Set "Turn off hard disk after = 1 Minute" in OS.
Minimum Processor State:0%.
Maximum Processor State:100%.
Using the local security settings console, "lock pages in memory" was enabled for the user running the benchmark.
Benchmark was started via Windows Remote Desktop Connection.
Each JVM instance was affinitized to 2 logical processors
Yes: The test sponsor attests, as of date of publication, that CVE-2017-5754 (Meltdown) is mitigated in the system as tested and documented
Yes: The test sponsor attests, as of date of publication, that CVE-2017-5753 (Spectre variant 1) is mitigated in the system as tested and documented
Yes: The test sponsor attests, as of date of publication, that CVE-2017-5715 (Spectre variant 2) is mitigated in the system as tested and documented
reg add "HKEY_LOCAL_MACHINE\SYSTEM\CurrentControlSet\Control\Session Manager\Memory Management" /v FeatureSettingsOverride /t REG_DWORD /d 0 /f
reg add "HKEY_LOCAL_MACHINE\SYSTEM\CurrentControlSet\Control\Session Manager\Memory Management" /v FeatureSettingsOverrideMask /t REG_DWORD /d 3 /f

Notes

SPECpower_ssj.props input.load_level.number_warehouses set to 96 due to a known inconsistency in processor reporting with this Java version

Performance Details

Target Load	Actual Load	Transaction Type	Count	Total Heap (MB)
Calibration 1		New Order	8,070,278	1,384
		Payment	8,070,286
		Order Status	807,028
		Delivery	807,029
		Stock Level	807,030
		Customer Report	8,070,280
Calibration 2		New Order	8,014,111	1,384
		Payment	8,014,106
		Order Status	801,411
		Delivery	801,411
		Stock Level	801,411
		Customer Report	8,014,108
Calibration 3		New Order	8,030,517	1,384
		Payment	8,030,517
		Order Status	803,051
		Delivery	803,052
		Stock Level	803,052
		Customer Report	8,030,516
100%	100.3%	New Order	8,042,240	1,384
		Payment	8,042,233
		Order Status	804,224
		Delivery	804,223
		Stock Level	804,223
		Customer Report	8,042,239
90%	90.0%	New Order	7,217,604	1,384
		Payment	7,217,602
		Order Status	721,761
		Delivery	721,760
		Stock Level	721,760
		Customer Report	7,217,607
80%	78.4%	New Order	6,294,466	1,384
		Payment	6,294,462
		Order Status	629,447
		Delivery	629,446
		Stock Level	629,447
		Customer Report	6,294,462
70%	69.8%	New Order	5,595,400	1,384
		Payment	5,595,412
		Order Status	559,540
		Delivery	559,540
		Stock Level	559,541
		Customer Report	5,595,412
60%	60.2%	New Order	4,827,424	1,384
		Payment	4,827,423
		Order Status	482,743
		Delivery	482,743
		Stock Level	482,742
		Customer Report	4,827,422
50%	50.0%	New Order	4,010,119	1,384
		Payment	4,010,117
		Order Status	401,013
		Delivery	401,012
		Stock Level	401,010
		Customer Report	4,010,115
40%	40.5%	New Order	3,245,994	1,384
		Payment	3,245,999
		Order Status	324,600
		Delivery	324,601
		Stock Level	324,599
		Customer Report	3,245,999
30%	29.5%	New Order	2,367,365	1,384
		Payment	2,367,370
		Order Status	236,738
		Delivery	236,737
		Stock Level	236,736
		Customer Report	2,367,362
20%	20.0%	New Order	1,601,872	1,384
		Payment	1,601,875
		Order Status	160,187
		Delivery	160,187
		Stock Level	160,188
		Customer Report	1,601,874
10%	10.1%	New Order	808,788	1,384
		Payment	808,786
		Order Status	80,879
		Delivery	80,878
		Stock Level	80,879
		Customer Report	808,790
Active Idle		New Order	0	1,384
		Payment	0
		Order Status	0
		Delivery	0
		Stock Level	0
		Customer Report	0
