Inspur Corporation Inspur NF5180M6 | ssj_ops@100% = 104,363 | ||||
Test Sponsor: | Inspur Corporation | SPEC License #: | 3358 | Test Method: | Single Node |
Tested By: | Inspur Corporation | Test Location: | JINAN, CHINA | Test Date: | Jun 29, 2021 |
Hardware Availability: | May-2021 | Software Availability: | Jan-2021 | Publication: | Jul 29, 2021 |
System Source: | Single Supplier | System Designation: | Server | Power Provisioning: | Line-powered |

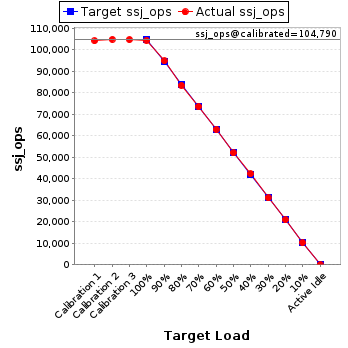

Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 104,128 | ||
Calibration 2 | 104,858 | ||
Calibration 3 | 104,722 | ||
ssj_ops@calibrated=104,790 | |||
100% | 99.6% | 104,790 | 104,363 |
90% | 90.5% | 94,311 | 94,826 |
80% | 79.6% | 83,832 | 83,439 |
70% | 70.2% | 73,353 | 73,583 |
60% | 60.1% | 62,874 | 63,000 |
50% | 49.6% | 52,395 | 52,021 |
40% | 40.4% | 41,916 | 42,317 |
30% | 29.7% | 31,437 | 31,085 |
20% | 19.9% | 20,958 | 20,897 |
10% | 9.8% | 10,479 | 10,312 |
Active Idle | 0 | 0 |
Set Identifier: | sut |
Set Description: | System Under Test |
# of Identical Nodes: | 1 |
Comment: | Single Node |
Hardware | |
---|---|
Hardware Vendor: | Inspur Corporation |
Model: | Inspur NF5180M6 |
Form Factor: | 1U |
CPU Name: | Intel Xeon Platinum 8352Y Processor |
CPU Characteristics: | 32-Core, 2.2GHz, 48MB L3 Cache |
CPU Frequency (MHz): | 2200 |
CPU(s) Enabled: | 64 cores, 2 chips, 32 cores/chip |
Hardware Threads: | 128 (2 / core) |
CPU(s) Orderable: | 1,2 chips |
Primary Cache: | 32 KB I + 48 KB D on chip per core |
Secondary Cache: | 1280 KB I+D on chip per chip |
Tertiary Cache: | 48 MB I+D on chip per chip |
Other Cache: | None |
Memory Amount (GB): | 512 |
# and size of DIMM: | 16 x 32 GB |
Memory Details: | 16 x SA_32G_DDR4-3200ER_2R4_D36F;slots CPU0_C0D0,CPU0_C1D0, CPU0_C2D0, CPU0_C3D0, CPU0_C4D0, CPU0_C5D0, CPU0_C6D0, CPU0_C7D0, CPU1_C0D0,CPU1_C1D0, CPU1_C2D0, CPU1_C3D0, CPU1_C4D0, CPU1_C5D0, CPU1_C6D0, CPU1_C7D0 populated |
Power Supply Quantity and Rating (W): | 1 x 800 |
Power Supply Details: | 1 x DELTA_M_DPS-800AB-58A_800W_1U_P,PN:V03105C000000000 |
Disk Drive: | 1 x I_480TD_SSDSC2KG480G8_T2_6_132_S461,PN:V0231P0000000000; 1 x SSD_MT_7.68KTD_MTFDDAK7T6TDS_T2_6_801_PR,PN:V0231H9000000000 |
Disk Controller: | Integrated SATA controller |
# and type of Network Interface Cards (NICs) Installed: | 1 x Intel I350 Gigabit Ethernet controller |
NICs Enabled in Firmware / OS / Connected: | 2/2/1 |
Network Speed (Mbit): | 1000 |
Keyboard: | None |
Mouse: | None |
Monitor: | None |
Optical Drives: | No |
Other Hardware: | None |
Software | |
---|---|
Power Management: | Balanced Mode enabled in OS |
Operating System (OS): | Windows Server 2019 Datacenter |
OS Version: | Version 1809 (OS Build 17763.1728) |
Filesystem: | NTFS |
JVM Vendor: | Oracle Corporation |
JVM Version: | Oracle Java HotSpot(TM) 64-Bit Server VM 18.9 (build 11.0.9+7-LTS, mixed mode) |
JVM Command-line Options: | -server -Xmn1700m -Xms1950m -Xmx1950m -XX:SurvivorRatio=1 -XX:TargetSurvivorRatio=99 -XX:ParallelGCThreads=2 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=4 -XX:LoopUnrollLimit=45 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:InlineSmallCode=3900 -XX:MaxInlineSize=270 -XX:FreqInlineSize=2500 -XX:+UseLargePages -XX:+UseParallelOldGC -XX:UseAVX=1 -XX:-UseAdaptiveSizePolicy -XX:-ThreadLocalHandshakes |
JVM Affinity: | start /node [0,1,2,3] /affinity [3,C,30,C0,300,C00,3000,C000,30000,C0000,300000,C00000,3000000,C000000,30000000,C0000000] |
JVM Instances: | 64 |
JVM Initial Heap (MB): | 1950 |
JVM Maximum Heap (MB): | 1950 |
JVM Address Bits: | 64 |
Boot Firmware Version: | 05.00.01 |
Management Firmware Version: | 4.12.04 |
Workload Version: | SSJ 1.2.10 |
Director Location: | Controller |
Other Software: | Microsoft Windows KB4598296 |
Target Load | Actual Load | Transaction Type | Count | Total Heap (MB) |
---|---|---|---|---|
Calibration 1 | New Order | 7,584,765 | 1,384 | |
Payment | 7,584,770 | |||
Order Status | 758,477 | |||
Delivery | 758,475 | |||
Stock Level | 758,477 | |||
Customer Report | 7,584,773 | |||
Calibration 2 | New Order | 7,628,497 | 1,384 | |
Payment | 7,628,500 | |||
Order Status | 762,850 | |||
Delivery | 762,850 | |||
Stock Level | 762,851 | |||
Customer Report | 7,628,501 | |||
Calibration 3 | New Order | 7,619,577 | 1,384 | |
Payment | 7,619,576 | |||
Order Status | 761,958 | |||
Delivery | 761,957 | |||
Stock Level | 761,957 | |||
Customer Report | 7,619,581 | |||
100% | 99.6% | New Order | 7,595,053 | 1,384 |
Payment | 7,595,054 | |||
Order Status | 759,505 | |||
Delivery | 759,506 | |||
Stock Level | 759,506 | |||
Customer Report | 7,595,057 | |||
90% | 90.5% | New Order | 6,897,116 | 1,384 |
Payment | 6,897,119 | |||
Order Status | 689,710 | |||
Delivery | 689,711 | |||
Stock Level | 689,712 | |||
Customer Report | 6,897,123 | |||
80% | 79.6% | New Order | 6,068,527 | 1,384 |
Payment | 6,068,533 | |||
Order Status | 606,853 | |||
Delivery | 606,853 | |||
Stock Level | 606,853 | |||
Customer Report | 6,068,536 | |||
70% | 70.2% | New Order | 5,352,011 | 1,384 |
Payment | 5,352,008 | |||
Order Status | 535,202 | |||
Delivery | 535,200 | |||
Stock Level | 535,200 | |||
Customer Report | 5,352,015 | |||
60% | 60.1% | New Order | 4,582,361 | 1,384 |
Payment | 4,582,361 | |||
Order Status | 458,236 | |||
Delivery | 458,237 | |||
Stock Level | 458,236 | |||
Customer Report | 4,582,358 | |||
50% | 49.6% | New Order | 3,784,083 | 1,384 |
Payment | 3,784,085 | |||
Order Status | 378,408 | |||
Delivery | 378,407 | |||
Stock Level | 378,409 | |||
Customer Report | 3,784,085 | |||
40% | 40.4% | New Order | 3,078,825 | 1,384 |
Payment | 3,078,822 | |||
Order Status | 307,882 | |||
Delivery | 307,882 | |||
Stock Level | 307,883 | |||
Customer Report | 3,078,820 | |||
30% | 29.7% | New Order | 2,260,807 | 1,384 |
Payment | 2,260,804 | |||
Order Status | 226,081 | |||
Delivery | 226,080 | |||
Stock Level | 226,080 | |||
Customer Report | 2,260,804 | |||
20% | 19.9% | New Order | 1,519,876 | 1,384 |
Payment | 1,519,876 | |||
Order Status | 151,989 | |||
Delivery | 151,987 | |||
Stock Level | 151,989 | |||
Customer Report | 1,519,875 | |||
10% | 9.8% | New Order | 749,996 | 1,384 |
Payment | 750,000 | |||
Order Status | 74,999 | |||
Delivery | 75,001 | |||
Stock Level | 75,000 | |||
Customer Report | 750,004 | |||
Active Idle | New Order | 0 | 1,384 | |
Payment | 0 | |||
Order Status | 0 | |||
Delivery | 0 | |||
Stock Level | 0 | |||
Customer Report | 0 |
