Inspur Corporation Inspur NF5180M6 | ssj_ops@100% = 104,504 | ||||
Test Sponsor: | Inspur Corporation | SPEC License #: | 3358 | Test Method: | Single Node |
Tested By: | Inspur Corporation | Test Location: | JINAN, CHINA | Test Date: | Jun 29, 2021 |
Hardware Availability: | May-2021 | Software Availability: | Jan-2021 | Publication: | Jul 29, 2021 |
System Source: | Single Supplier | System Designation: | Server | Power Provisioning: | Line-powered |

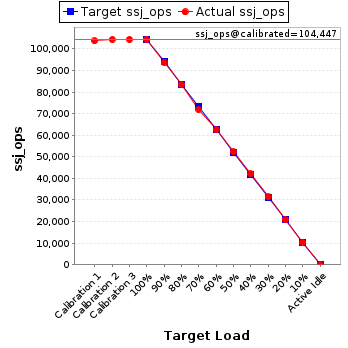

Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 103,767 | ||
Calibration 2 | 104,444 | ||
Calibration 3 | 104,450 | ||
ssj_ops@calibrated=104,447 | |||
100% | 100.1% | 104,447 | 104,504 |
90% | 89.7% | 94,002 | 93,671 |
80% | 79.9% | 83,557 | 83,457 |
70% | 68.9% | 73,113 | 72,009 |
60% | 60.0% | 62,668 | 62,713 |
50% | 50.0% | 52,223 | 52,262 |
40% | 40.3% | 41,779 | 42,119 |
30% | 30.1% | 31,334 | 31,448 |
20% | 19.8% | 20,889 | 20,723 |
10% | 9.7% | 10,445 | 10,158 |
Active Idle | 0 | 0 |
Set Identifier: | sut |
Set Description: | System Under Test |
# of Identical Nodes: | 1 |
Comment: | Single Node |
Hardware | |
---|---|
Hardware Vendor: | Inspur Corporation |
Model: | Inspur NF5180M6 |
Form Factor: | 1U |
CPU Name: | Intel Xeon Platinum 8352Y Processor |
CPU Characteristics: | 32-Core, 2.2GHz, 48MB L3 Cache |
CPU Frequency (MHz): | 2200 |
CPU(s) Enabled: | 64 cores, 2 chips, 32 cores/chip |
Hardware Threads: | 128 (2 / core) |
CPU(s) Orderable: | 1,2 chips |
Primary Cache: | 32 KB I + 48 KB D on chip per core |
Secondary Cache: | 1280 KB I+D on chip per chip |
Tertiary Cache: | 48 MB I+D on chip per chip |
Other Cache: | None |
Memory Amount (GB): | 512 |
# and size of DIMM: | 16 x 32 GB |
Memory Details: | 16 x SA_32G_DDR4-3200ER_2R4_D36F;slots CPU0_C0D0,CPU0_C1D0, CPU0_C2D0, CPU0_C3D0, CPU0_C4D0, CPU0_C5D0, CPU0_C6D0, CPU0_C7D0, CPU1_C0D0,CPU1_C1D0, CPU1_C2D0, CPU1_C3D0, CPU1_C4D0, CPU1_C5D0, CPU1_C6D0, CPU1_C7D0 populated |
Power Supply Quantity and Rating (W): | 1 x 800 |
Power Supply Details: | 1 x DELTA_M_DPS-800AB-58A_800W_1U_P,PN:V03105C000000000 |
Disk Drive: | 1 x I_480TD_SSDSC2KG480G8_T2_6_132_S461,PN:V0231P0000000000; 1 x SSD_MT_7.68KTD_MTFDDAK7T6TDS_T2_6_801_PR,PN:V0231H9000000000 |
Disk Controller: | Integrated SATA controller |
# and type of Network Interface Cards (NICs) Installed: | 1 x Intel I350 Gigabit Ethernet controller |
NICs Enabled in Firmware / OS / Connected: | 2/2/1 |
Network Speed (Mbit): | 1000 |
Keyboard: | None |
Mouse: | None |
Monitor: | None |
Optical Drives: | No |
Other Hardware: | None |
Software | |
---|---|
Power Management: | Balanced Mode enabled in OS |
Operating System (OS): | Windows Server 2019 Datacenter |
OS Version: | Version 1809 (OS Build 17763.1728) |
Filesystem: | NTFS |
JVM Vendor: | Oracle Corporation |
JVM Version: | Oracle Java HotSpot(TM) 64-Bit Server VM 18.9 (build 11.0.9+7-LTS, mixed mode) |
JVM Command-line Options: | -server -Xmn1700m -Xms1950m -Xmx1950m -XX:SurvivorRatio=1 -XX:TargetSurvivorRatio=99 -XX:ParallelGCThreads=2 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=4 -XX:LoopUnrollLimit=45 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:InlineSmallCode=3900 -XX:MaxInlineSize=270 -XX:FreqInlineSize=2500 -XX:+UseLargePages -XX:+UseParallelOldGC -XX:UseAVX=1 -XX:-UseAdaptiveSizePolicy -XX:-ThreadLocalHandshakes |
JVM Affinity: | start /node [0,1,2,3] /affinity [3,C,30,C0,300,C00,3000,C000,30000,C0000,300000,C00000,3000000,C000000,30000000,C0000000] |
JVM Instances: | 64 |
JVM Initial Heap (MB): | 1950 |
JVM Maximum Heap (MB): | 1950 |
JVM Address Bits: | 64 |
Boot Firmware Version: | 05.00.01 |
Management Firmware Version: | 4.12.04 |
Workload Version: | SSJ 1.2.10 |
Director Location: | Controller |
Other Software: | Microsoft Windows KB4598296 |
Target Load | Actual Load | Transaction Type | Count | Total Heap (MB) |
---|---|---|---|---|
Calibration 1 | New Order | 7,562,850 | 1,384 | |
Payment | 7,562,852 | |||
Order Status | 756,285 | |||
Delivery | 756,286 | |||
Stock Level | 756,285 | |||
Customer Report | 7,562,853 | |||
Calibration 2 | New Order | 7,599,819 | 1,384 | |
Payment | 7,599,819 | |||
Order Status | 759,982 | |||
Delivery | 759,982 | |||
Stock Level | 759,982 | |||
Customer Report | 7,599,816 | |||
Calibration 3 | New Order | 7,601,264 | 1,384 | |
Payment | 7,601,271 | |||
Order Status | 760,126 | |||
Delivery | 760,126 | |||
Stock Level | 760,125 | |||
Customer Report | 7,601,266 | |||
100% | 100.1% | New Order | 7,604,722 | 1,384 |
Payment | 7,604,723 | |||
Order Status | 760,472 | |||
Delivery | 760,473 | |||
Stock Level | 760,471 | |||
Customer Report | 7,604,721 | |||
90% | 89.7% | New Order | 6,814,394 | 1,384 |
Payment | 6,814,386 | |||
Order Status | 681,440 | |||
Delivery | 681,439 | |||
Stock Level | 681,439 | |||
Customer Report | 6,814,392 | |||
80% | 79.9% | New Order | 6,071,841 | 1,384 |
Payment | 6,071,844 | |||
Order Status | 607,184 | |||
Delivery | 607,186 | |||
Stock Level | 607,184 | |||
Customer Report | 6,071,840 | |||
70% | 68.9% | New Order | 5,238,712 | 1,384 |
Payment | 5,238,716 | |||
Order Status | 523,871 | |||
Delivery | 523,871 | |||
Stock Level | 523,871 | |||
Customer Report | 5,238,720 | |||
60% | 60.0% | New Order | 4,562,794 | 1,384 |
Payment | 4,562,792 | |||
Order Status | 456,279 | |||
Delivery | 456,279 | |||
Stock Level | 456,280 | |||
Customer Report | 4,562,793 | |||
50% | 50.0% | New Order | 3,801,326 | 1,384 |
Payment | 3,801,318 | |||
Order Status | 380,132 | |||
Delivery | 380,134 | |||
Stock Level | 380,133 | |||
Customer Report | 3,801,323 | |||
40% | 40.3% | New Order | 3,063,333 | 1,384 |
Payment | 3,063,338 | |||
Order Status | 306,332 | |||
Delivery | 306,333 | |||
Stock Level | 306,332 | |||
Customer Report | 3,063,332 | |||
30% | 30.1% | New Order | 2,287,627 | 1,384 |
Payment | 2,287,631 | |||
Order Status | 228,762 | |||
Delivery | 228,763 | |||
Stock Level | 228,763 | |||
Customer Report | 2,287,632 | |||
20% | 19.8% | New Order | 1,508,073 | 1,384 |
Payment | 1,508,074 | |||
Order Status | 150,807 | |||
Delivery | 150,807 | |||
Stock Level | 150,808 | |||
Customer Report | 1,508,078 | |||
10% | 9.7% | New Order | 738,786 | 1,384 |
Payment | 738,789 | |||
Order Status | 73,878 | |||
Delivery | 73,880 | |||
Stock Level | 73,878 | |||
Customer Report | 738,789 | |||
Active Idle | New Order | 0 | 1,384 | |
Payment | 0 | |||
Order Status | 0 | |||
Delivery | 0 | |||
Stock Level | 0 | |||
Customer Report | 0 |
