Inspur Corporation Inspur NF5180M6 ssj_ops@100% = 103,544
Test Sponsor: Inspur Corporation SPEC License #: 3358 Test Method: Single Node
Tested By: Inspur Corporation Test Location: JINAN, CHINA Test Date: Jun 29, 2021
Hardware Availability: May-2021 Software Availability: Jan-2021 Publication: Jul 29, 2021
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     103,124
Calibration 2     103,900
Calibration 3     103,447
ssj_ops@calibrated=103,673
100% 99.9% 103,673 103,544
90% 89.6% 93,306 92,926
80% 79.4% 82,939 82,365
70% 69.9% 72,571 72,459
60% 60.3% 62,204 62,524
50% 49.8% 51,837 51,612
40% 40.5% 41,469 41,945
30% 30.3% 31,102 31,376
20% 20.2% 20,735 20,929
10% 9.8% 10,367 10,175
Active Idle   0 0

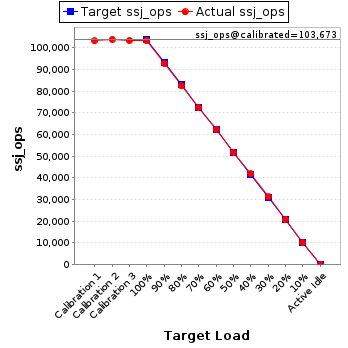

Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: System Under Test
# of Identical Nodes: 1
Comment: Single Node
Hardware
Hardware Vendor: Inspur Corporation
Model: Inspur NF5180M6
Form Factor: 1U
CPU Name: Intel Xeon Platinum 8352Y Processor
CPU Characteristics: 32-Core, 2.2GHz, 48MB L3 Cache
CPU Frequency (MHz): 2200
CPU(s) Enabled: 64 cores, 2 chips, 32 cores/chip
Hardware Threads: 128 (2 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 32 KB I + 48 KB D on chip per core
Secondary Cache: 1280 KB I+D on chip per chip
Tertiary Cache: 48 MB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 512
# and size of DIMM: 16 x 32 GB
Memory Details: 16 x SA_32G_DDR4-3200ER_2R4_D36F;slots CPU0_C0D0,CPU0_C1D0, CPU0_C2D0, CPU0_C3D0, CPU0_C4D0, CPU0_C5D0, CPU0_C6D0, CPU0_C7D0, CPU1_C0D0,CPU1_C1D0, CPU1_C2D0, CPU1_C3D0, CPU1_C4D0, CPU1_C5D0, CPU1_C6D0, CPU1_C7D0 populated
Power Supply Quantity and Rating (W): 1 x 800
Power Supply Details: 1 x DELTA_M_DPS-800AB-58A_800W_1U_P,PN:V03105C000000000
Disk Drive: 1 x I_480TD_SSDSC2KG480G8_T2_6_132_S461,PN:V0231P0000000000; 1 x SSD_MT_7.68KTD_MTFDDAK7T6TDS_T2_6_801_PR,PN:V0231H9000000000
Disk Controller: Integrated SATA controller
# and type of Network Interface Cards (NICs) Installed: 1 x Intel I350 Gigabit Ethernet controller
NICs Enabled in Firmware / OS / Connected: 2/2/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Balanced Mode enabled in OS
Operating System (OS): Windows Server 2019 Datacenter
OS Version: Version 1809 (OS Build 17763.1728)
Filesystem: NTFS
JVM Vendor: Oracle Corporation
JVM Version: Oracle Java HotSpot(TM) 64-Bit Server VM 18.9 (build 11.0.9+7-LTS, mixed mode)
JVM Command-line Options: -server -Xmn1700m -Xms1950m -Xmx1950m -XX:SurvivorRatio=1 -XX:TargetSurvivorRatio=99 -XX:ParallelGCThreads=2 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=4 -XX:LoopUnrollLimit=45 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:InlineSmallCode=3900 -XX:MaxInlineSize=270 -XX:FreqInlineSize=2500 -XX:+UseLargePages -XX:+UseParallelOldGC -XX:UseAVX=1 -XX:-UseAdaptiveSizePolicy -XX:-ThreadLocalHandshakes
JVM Affinity: start /node [0,1,2,3] /affinity [3,C,30,C0,300,C00,3000,C000,30000,C0000,300000,C00000,3000000,C000000,30000000,C0000000]
JVM Instances: 64
JVM Initial Heap (MB): 1950
JVM Maximum Heap (MB): 1950
JVM Address Bits: 64
Boot Firmware Version: 05.00.01
Management Firmware Version: 4.12.04
Workload Version: SSJ 1.2.10
Director Location: Controller
Other Software: Microsoft Windows KB4598296
Boot Firmware Settings
Management Firmware Settings
none
System Under Test Notes
Notes
SPECpower_ssj.props input.load_level.number_warehouses set to 128 due to a known inconsistency in processor reporting with this Java version
Performance Details
Target Load Actual Load Transaction Type Count Total Heap (MB)
Calibration 1 New Order 7,509,483 1,384
Payment 7,509,479
Order Status 750,948
Delivery 750,950
Stock Level 750,948
Customer Report 7,509,481
Calibration 2 New Order 7,562,240 1,384
Payment 7,562,241
Order Status 756,224
Delivery 756,225
Stock Level 756,223
Customer Report 7,562,236
Calibration 3 New Order 7,529,619 1,384
Payment 7,529,619
Order Status 752,962
Delivery 752,962
Stock Level 752,961
Customer Report 7,529,617
100% 99.9% New Order 7,535,321 1,384
Payment 7,535,320
Order Status 753,532
Delivery 753,532
Stock Level 753,532
Customer Report 7,535,321
90% 89.6% New Order 6,760,328 1,384
Payment 6,760,325
Order Status 676,031
Delivery 676,032
Stock Level 676,032
Customer Report 6,760,325
80% 79.4% New Order 5,993,478 1,384
Payment 5,993,475
Order Status 599,348
Delivery 599,348
Stock Level 599,347
Customer Report 5,993,477
70% 69.9% New Order 5,270,433 1,384
Payment 5,270,437
Order Status 527,043
Delivery 527,043
Stock Level 527,042
Customer Report 5,270,436
60% 60.3% New Order 4,547,736 1,384
Payment 4,547,737
Order Status 454,775
Delivery 454,773
Stock Level 454,774
Customer Report 4,547,732
50% 49.8% New Order 3,753,868 1,384
Payment 3,753,868
Order Status 375,387
Delivery 375,388
Stock Level 375,386
Customer Report 3,753,868
40% 40.5% New Order 3,052,611 1,384
Payment 3,052,609
Order Status 305,260
Delivery 305,261
Stock Level 305,260
Customer Report 3,052,611
30% 30.3% New Order 2,281,967 1,384
Payment 2,281,967
Order Status 228,195
Delivery 228,196
Stock Level 228,198
Customer Report 2,281,963
20% 20.2% New Order 1,522,139 1,384
Payment 1,522,137
Order Status 152,213
Delivery 152,215
Stock Level 152,215
Customer Report 1,522,137
10% 9.8% New Order 740,001 1,384
Payment 740,000
Order Status 74,001
Delivery 74,000
Stock Level 73,999
Customer Report 739,999
Active Idle New Order 0 1,384
Payment 0
Order Status 0
Delivery 0
Stock Level 0
Customer Report 0
