Inspur Corporation Inspur NF5180M6 | ssj_ops@100% = 102,252 | ||||
Test Sponsor: | Inspur Corporation | SPEC License #: | 3358 | Test Method: | Single Node |
Tested By: | Inspur Corporation | Test Location: | JINAN, CHINA | Test Date: | Jun 29, 2021 |
Hardware Availability: | May-2021 | Software Availability: | Jan-2021 | Publication: | Jul 29, 2021 |
System Source: | Single Supplier | System Designation: | Server | Power Provisioning: | Line-powered |

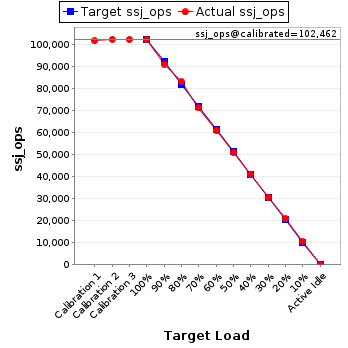

Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 101,760 | ||
Calibration 2 | 102,476 | ||
Calibration 3 | 102,447 | ||
ssj_ops@calibrated=102,462 | |||
100% | 99.8% | 102,462 | 102,252 |
90% | 89.0% | 92,215 | 91,157 |
80% | 81.2% | 81,969 | 83,226 |
70% | 69.5% | 71,723 | 71,219 |
60% | 59.6% | 61,477 | 61,070 |
50% | 49.9% | 51,231 | 51,099 |
40% | 40.2% | 40,985 | 41,199 |
30% | 29.8% | 30,738 | 30,541 |
20% | 20.4% | 20,492 | 20,876 |
10% | 10.1% | 10,246 | 10,358 |
Active Idle | 0 | 0 |
Set Identifier: | sut |
Set Description: | System Under Test |
# of Identical Nodes: | 1 |
Comment: | Single Node |
Hardware | |
---|---|
Hardware Vendor: | Inspur Corporation |
Model: | Inspur NF5180M6 |
Form Factor: | 1U |
CPU Name: | Intel Xeon Platinum 8352Y Processor |
CPU Characteristics: | 32-Core, 2.2GHz, 48MB L3 Cache |
CPU Frequency (MHz): | 2200 |
CPU(s) Enabled: | 64 cores, 2 chips, 32 cores/chip |
Hardware Threads: | 128 (2 / core) |
CPU(s) Orderable: | 1,2 chips |
Primary Cache: | 32 KB I + 48 KB D on chip per core |
Secondary Cache: | 1280 KB I+D on chip per chip |
Tertiary Cache: | 48 MB I+D on chip per chip |
Other Cache: | None |
Memory Amount (GB): | 512 |
# and size of DIMM: | 16 x 32 GB |
Memory Details: | 16 x SA_32G_DDR4-3200ER_2R4_D36F;slots CPU0_C0D0,CPU0_C1D0, CPU0_C2D0, CPU0_C3D0, CPU0_C4D0, CPU0_C5D0, CPU0_C6D0, CPU0_C7D0, CPU1_C0D0,CPU1_C1D0, CPU1_C2D0, CPU1_C3D0, CPU1_C4D0, CPU1_C5D0, CPU1_C6D0, CPU1_C7D0 populated |
Power Supply Quantity and Rating (W): | 1 x 800 |
Power Supply Details: | 1 x DELTA_M_DPS-800AB-58A_800W_1U_P,PN:V03105C000000000 |
Disk Drive: | 1 x I_480TD_SSDSC2KG480G8_T2_6_132_S461,PN:V0231P0000000000; 1 x SSD_MT_7.68KTD_MTFDDAK7T6TDS_T2_6_801_PR,PN:V0231H9000000000 |
Disk Controller: | Integrated SATA controller |
# and type of Network Interface Cards (NICs) Installed: | 1 x Intel I350 Gigabit Ethernet controller |
NICs Enabled in Firmware / OS / Connected: | 2/2/1 |
Network Speed (Mbit): | 1000 |
Keyboard: | None |
Mouse: | None |
Monitor: | None |
Optical Drives: | No |
Other Hardware: | None |
Software | |
---|---|
Power Management: | Balanced Mode enabled in OS |
Operating System (OS): | Windows Server 2019 Datacenter |
OS Version: | Version 1809 (OS Build 17763.1728) |
Filesystem: | NTFS |
JVM Vendor: | Oracle Corporation |
JVM Version: | Oracle Java HotSpot(TM) 64-Bit Server VM 18.9 (build 11.0.9+7-LTS, mixed mode) |
JVM Command-line Options: | -server -Xmn1700m -Xms1950m -Xmx1950m -XX:SurvivorRatio=1 -XX:TargetSurvivorRatio=99 -XX:ParallelGCThreads=2 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=4 -XX:LoopUnrollLimit=45 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:InlineSmallCode=3900 -XX:MaxInlineSize=270 -XX:FreqInlineSize=2500 -XX:+UseLargePages -XX:+UseParallelOldGC -XX:UseAVX=1 -XX:-UseAdaptiveSizePolicy -XX:-ThreadLocalHandshakes |
JVM Affinity: | start /node [0,1,2,3] /affinity [3,C,30,C0,300,C00,3000,C000,30000,C0000,300000,C00000,3000000,C000000,30000000,C0000000] |
JVM Instances: | 64 |
JVM Initial Heap (MB): | 1950 |
JVM Maximum Heap (MB): | 1950 |
JVM Address Bits: | 64 |
Boot Firmware Version: | 05.00.01 |
Management Firmware Version: | 4.12.04 |
Workload Version: | SSJ 1.2.10 |
Director Location: | Controller |
Other Software: | Microsoft Windows KB4598296 |
Target Load | Actual Load | Transaction Type | Count | Total Heap (MB) |
---|---|---|---|---|
Calibration 1 | New Order | 7,417,576 | 1,384 | |
Payment | 7,417,572 | |||
Order Status | 741,755 | |||
Delivery | 741,755 | |||
Stock Level | 741,758 | |||
Customer Report | 7,417,574 | |||
Calibration 2 | New Order | 7,457,822 | 1,384 | |
Payment | 7,457,825 | |||
Order Status | 745,783 | |||
Delivery | 745,783 | |||
Stock Level | 745,782 | |||
Customer Report | 7,457,829 | |||
Calibration 3 | New Order | 7,453,087 | 1,384 | |
Payment | 7,453,086 | |||
Order Status | 745,308 | |||
Delivery | 745,309 | |||
Stock Level | 745,308 | |||
Customer Report | 7,453,086 | |||
100% | 99.8% | New Order | 7,437,446 | 1,384 |
Payment | 7,437,448 | |||
Order Status | 743,745 | |||
Delivery | 743,745 | |||
Stock Level | 743,745 | |||
Customer Report | 7,437,450 | |||
90% | 89.0% | New Order | 6,630,422 | 1,384 |
Payment | 6,630,418 | |||
Order Status | 663,043 | |||
Delivery | 663,042 | |||
Stock Level | 663,042 | |||
Customer Report | 6,630,421 | |||
80% | 81.2% | New Order | 6,053,045 | 1,384 |
Payment | 6,053,044 | |||
Order Status | 605,303 | |||
Delivery | 605,306 | |||
Stock Level | 605,304 | |||
Customer Report | 6,053,043 | |||
70% | 69.5% | New Order | 5,180,820 | 1,384 |
Payment | 5,180,822 | |||
Order Status | 518,082 | |||
Delivery | 518,082 | |||
Stock Level | 518,082 | |||
Customer Report | 5,180,821 | |||
60% | 59.6% | New Order | 4,441,595 | 1,384 |
Payment | 4,441,594 | |||
Order Status | 444,159 | |||
Delivery | 444,159 | |||
Stock Level | 444,159 | |||
Customer Report | 4,441,594 | |||
50% | 49.9% | New Order | 3,718,713 | 1,384 |
Payment | 3,718,713 | |||
Order Status | 371,871 | |||
Delivery | 371,871 | |||
Stock Level | 371,871 | |||
Customer Report | 3,718,711 | |||
40% | 40.2% | New Order | 2,996,307 | 1,384 |
Payment | 2,996,306 | |||
Order Status | 299,630 | |||
Delivery | 299,632 | |||
Stock Level | 299,632 | |||
Customer Report | 2,996,309 | |||
30% | 29.8% | New Order | 2,221,250 | 1,384 |
Payment | 2,221,249 | |||
Order Status | 222,125 | |||
Delivery | 222,125 | |||
Stock Level | 222,125 | |||
Customer Report | 2,221,244 | |||
20% | 20.4% | New Order | 1,518,600 | 1,384 |
Payment | 1,518,604 | |||
Order Status | 151,861 | |||
Delivery | 151,861 | |||
Stock Level | 151,860 | |||
Customer Report | 1,518,603 | |||
10% | 10.1% | New Order | 753,326 | 1,384 |
Payment | 753,323 | |||
Order Status | 75,333 | |||
Delivery | 75,331 | |||
Stock Level | 75,333 | |||
Customer Report | 753,321 | |||
Active Idle | New Order | 0 | 1,384 | |
Payment | 0 | |||
Order Status | 0 | |||
Delivery | 0 | |||
Stock Level | 0 | |||
Customer Report | 0 |
