Inspur Corporation Inspur NF5180M6 ssj_ops@100% = 104,591
Test Sponsor: Inspur Corporation SPEC License #: 3358 Test Method: Single Node
Tested By: Inspur Corporation Test Location: JINAN, CHINA Test Date: Jun 29, 2021
Hardware Availability: May-2021 Software Availability: Jan-2021 Publication: Jul 29, 2021
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     104,299
Calibration 2     104,392
Calibration 3     104,521
ssj_ops@calibrated=104,456
100% 100.1% 104,456 104,591
90% 90.1% 94,011 94,100
80% 80.6% 83,565 84,141
70% 70.4% 73,119 73,577
60% 59.8% 62,674 62,516
50% 50.4% 52,228 52,608
40% 40.5% 41,783 42,265
30% 30.0% 31,337 31,386
20% 19.5% 20,891 20,365
10% 9.8% 10,446 10,221
Active Idle   0 0

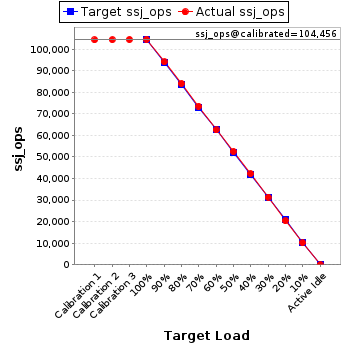

Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: System Under Test
# of Identical Nodes: 1
Comment: Single Node
Hardware
Hardware Vendor: Inspur Corporation
Model: Inspur NF5180M6
Form Factor: 1U
CPU Name: Intel Xeon Platinum 8352Y Processor
CPU Characteristics: 32-Core, 2.2GHz, 48MB L3 Cache
CPU Frequency (MHz): 2200
CPU(s) Enabled: 64 cores, 2 chips, 32 cores/chip
Hardware Threads: 128 (2 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 32 KB I + 48 KB D on chip per core
Secondary Cache: 1280 KB I+D on chip per chip
Tertiary Cache: 48 MB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 512
# and size of DIMM: 16 x 32 GB
Memory Details: 16 x SA_32G_DDR4-3200ER_2R4_D36F;slots CPU0_C0D0,CPU0_C1D0, CPU0_C2D0, CPU0_C3D0, CPU0_C4D0, CPU0_C5D0, CPU0_C6D0, CPU0_C7D0, CPU1_C0D0,CPU1_C1D0, CPU1_C2D0, CPU1_C3D0, CPU1_C4D0, CPU1_C5D0, CPU1_C6D0, CPU1_C7D0 populated
Power Supply Quantity and Rating (W): 1 x 800
Power Supply Details: 1 x DELTA_M_DPS-800AB-58A_800W_1U_P,PN:V03105C000000000
Disk Drive: 1 x I_480TD_SSDSC2KG480G8_T2_6_132_S461,PN:V0231P0000000000; 1 x SSD_MT_7.68KTD_MTFDDAK7T6TDS_T2_6_801_PR,PN:V0231H9000000000
Disk Controller: Integrated SATA controller
# and type of Network Interface Cards (NICs) Installed: 1 x Intel I350 Gigabit Ethernet controller
NICs Enabled in Firmware / OS / Connected: 2/2/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Balanced Mode enabled in OS
Operating System (OS): Windows Server 2019 Datacenter
OS Version: Version 1809 (OS Build 17763.1728)
Filesystem: NTFS
JVM Vendor: Oracle Corporation
JVM Version: Oracle Java HotSpot(TM) 64-Bit Server VM 18.9 (build 11.0.9+7-LTS, mixed mode)
JVM Command-line Options: -server -Xmn1700m -Xms1950m -Xmx1950m -XX:SurvivorRatio=1 -XX:TargetSurvivorRatio=99 -XX:ParallelGCThreads=2 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=4 -XX:LoopUnrollLimit=45 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:InlineSmallCode=3900 -XX:MaxInlineSize=270 -XX:FreqInlineSize=2500 -XX:+UseLargePages -XX:+UseParallelOldGC -XX:UseAVX=1 -XX:-UseAdaptiveSizePolicy -XX:-ThreadLocalHandshakes
JVM Affinity: start /node [0,1,2,3] /affinity [3,C,30,C0,300,C00,3000,C000,30000,C0000,300000,C00000,3000000,C000000,30000000,C0000000]
JVM Instances: 64
JVM Initial Heap (MB): 1950
JVM Maximum Heap (MB): 1950
JVM Address Bits: 64
Boot Firmware Version: 05.00.01
Management Firmware Version: 4.12.04
Workload Version: SSJ 1.2.10
Director Location: Controller
Other Software: Microsoft Windows KB4598296
Boot Firmware Settings
Management Firmware Settings
none
System Under Test Notes
Notes
SPECpower_ssj.props input.load_level.number_warehouses set to 128 due to a known inconsistency in processor reporting with this Java version
Performance Details
Target Load Actual Load Transaction Type Count Total Heap (MB)
Calibration 1 New Order 7,589,197 1,384
Payment 7,589,202
Order Status 758,920
Delivery 758,921
Stock Level 758,920
Customer Report 7,589,202
Calibration 2 New Order 7,592,578 1,384
Payment 7,592,587
Order Status 759,257
Delivery 759,259
Stock Level 759,258
Customer Report 7,592,584
Calibration 3 New Order 7,606,440 1,384
Payment 7,606,437
Order Status 760,642
Delivery 760,643
Stock Level 760,645
Customer Report 7,606,439
100% 100.1% New Order 7,607,056 1,384
Payment 7,607,054
Order Status 760,705
Delivery 760,706
Stock Level 760,706
Customer Report 7,607,058
90% 90.1% New Order 6,847,190 1,384
Payment 6,847,195
Order Status 684,721
Delivery 684,719
Stock Level 684,718
Customer Report 6,847,192
80% 80.6% New Order 6,119,924 1,384
Payment 6,119,919
Order Status 611,992
Delivery 611,992
Stock Level 611,993
Customer Report 6,119,923
70% 70.4% New Order 5,351,337 1,384
Payment 5,351,345
Order Status 535,134
Delivery 535,133
Stock Level 535,135
Customer Report 5,351,342
60% 59.8% New Order 4,546,781 1,384
Payment 4,546,783
Order Status 454,677
Delivery 454,679
Stock Level 454,678
Customer Report 4,546,780
50% 50.4% New Order 3,826,531 1,384
Payment 3,826,530
Order Status 382,652
Delivery 382,655
Stock Level 382,652
Customer Report 3,826,529
40% 40.5% New Order 3,074,722 1,384
Payment 3,074,724
Order Status 307,473
Delivery 307,472
Stock Level 307,474
Customer Report 3,074,726
30% 30.0% New Order 2,282,726 1,384
Payment 2,282,724
Order Status 228,273
Delivery 228,273
Stock Level 228,274
Customer Report 2,282,730
20% 19.5% New Order 1,481,195 1,384
Payment 1,481,199
Order Status 148,120
Delivery 148,119
Stock Level 148,120
Customer Report 1,481,196
10% 9.8% New Order 743,370 1,384
Payment 743,371
Order Status 74,336
Delivery 74,337
Stock Level 74,336
Customer Report 743,368
Active Idle New Order 0 1,384
Payment 0
Order Status 0
Delivery 0
Stock Level 0
Customer Report 0
