Lenovo Global Technology ThinkSystem SR635 SPECpower_ssj2008 = 21,133 overall ssj_ops/watt
Test Sponsor: Lenovo Global Technology SPEC License #: 9017 Test Method: Single Node
Tested By: Lenovo Global Technology Test Location: Beijing, China Test Date: Jun 10, 2021
Hardware Availability: Jun-2021 Software Availability: May-2020 Publication: Jun 30, 2021
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Average Active Power (W) Minimum Ambient Temperature (°C)
Calibration 1 237 20.9
Calibration 2 240 21.4
Calibration 3 241 21.8
100% 240 22.1
90% 203 22.4
80% 178 22.4
70% 165 22.1
60% 154 21.8
50% 143 21.6
40% 132 21.2
30% 123 21.0
20% 112 20.8
10% 99.6 20.8
Active Idle 54.0 20.7

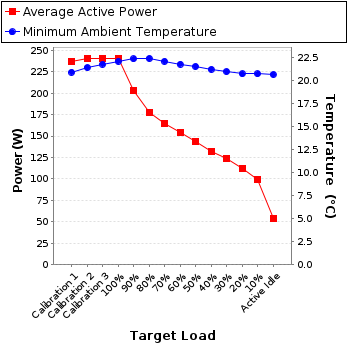

Graph of power and temperature
Measurement Devices
Power Analyzer pwr1
Hardware Vendor: YOKOGAWA, Inc.
Model: WT310E
Serial Number: C3SH31010E
Connectivity: USB
Input Connection: Default
Metrology Institute: China National Accreditation Service for Conformity Assessment (CNAS)
Accredited by: China CEPREI Laboratory
Calibration Label: J202009040176A-0005
Date of Calibration: 25-Sep-2020
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
PTDaemon Version: 1.9.2-3976349f-20201208
Setup Description: Connected to PSU 1
Temperature Sensor temp1
Hardware Vendor: Digi Intermational, Inc.
Model: Watchport/H
Driver Version: 5.70.105.0
Connectivity: USB
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
Setup Description: 50 mm in front of SUT main intake
Notes
Power Details for Device pwr1
Target Load Voltage (V) Current (A) Avg Power Factor Avg Active Power (W) Power Measurement Uncertainty (%)
Avg Range Avg Range
Calibration 1 220 300.0 1.09 5.0 0.989 237 0.4%
Calibration 2 220 300.0 1.10 5.0 0.989 240 0.4%
Calibration 3 220 300.0 1.11 5.0 0.989 241 0.4%
100% 220 300.0 1.10 5.0 0.989 240 0.4%
90% 220 300.0 0.934 5.0 0.989 203 0.5%
80% 220 300.0 0.819 5.0 0.987 178 0.6%
70% 220 300.0 0.762 2.0 0.985 165 0.3%
60% 220 300.0 0.712 2.0 0.983 154 0.3%
50% 220 300.0 0.664 2.0 0.981 143 0.4%
40% 220 300.0 0.615 2.0 0.978 132 0.4%
30% 220 300.0 0.575 2.0 0.975 123 0.4%
20% 220 300.0 0.523 2.0 0.969 112 0.4%
10% 220 300.0 0.467 2.0 0.970 99.6 0.4%
Active Idle 220 300.0 0.281 1.0 0.872 54.0 0.5%

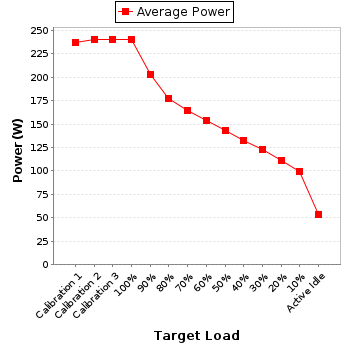

Power details for pwr1
