Lenovo Global Technology ThinkSystem SR655 ssj_ops@100% = 6,114,552
ssj_ops@100% per JVM = 191,080
Test Sponsor: Lenovo Global Technology SPEC License #: 9017 Test Method: Single Node
Tested By: Lenovo Global Technology Test Location: Beijing, China Test Date: May 29, 2021
Hardware Availability: Jun-2021 Software Availability: Jul-2020 Publication: Jun 30, 2021
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     6,149,396
Calibration 2     6,138,276
Calibration 3     6,139,021
ssj_ops@calibrated=6,138,649
100% 99.6% 6,138,649 6,114,552
90% 89.9% 5,524,784 5,520,918
80% 79.4% 4,910,919 4,875,441
70% 69.8% 4,297,054 4,287,820
60% 59.8% 3,683,189 3,672,211
50% 50.0% 3,069,324 3,069,128
40% 40.0% 2,455,459 2,453,590
30% 30.0% 1,841,595 1,839,277
20% 20.0% 1,227,730 1,229,720
10% 10.0% 613,865 613,931
Active Idle   0 0

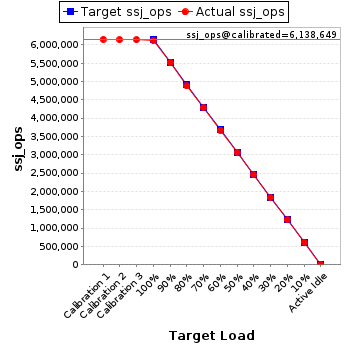

Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: System Under Test
# of Identical Nodes: 1
Comment: 'SUT'
Hardware
Hardware Vendor: Lenovo Global Technology
Model: ThinkSystem SR655
Form Factor: 2U
CPU Name: AMD EPYC 7763 2.45GHz
CPU Characteristics: 64-Core, 2.45GHz, 256MB L3 Cache
CPU Frequency (MHz): 2450
CPU(s) Enabled: 64 cores, 1 chip, 64 cores/chip
Hardware Threads: 128 (2 / core)
CPU(s) Orderable: 1 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 512 KB I+D on chip per core
Tertiary Cache: 256 MB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 128
# and size of DIMM: 8 x 16384 MB
Memory Details: 8 x 16GB 2Rx8 PC4-3200AA-RE2-12; slots 1, 3, 5, 7, 10, 12, 14, and 16 populated
Power Supply Quantity and Rating (W): 1 x 750
Power Supply Details: Lenovo P/N:7N67A00883
Disk Drive: 1 x 128GB M.2 SSD P/N:7N47A00130 M.2 Module P/N:4Y37A09738
Disk Controller: Integrated SATA controller
# and type of Network Interface Cards (NICs) Installed: 1 x ThinkSystem Broadcom 1GbE 2-Port Ethernet Adapter P/N:7ZT7A00482
NICs Enabled in Firmware / OS / Connected: 2/2/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: Test using the performance fan module P/N:4F17A14484
Software
Power Management: Enabled (see SUT Notes)
Operating System (OS): Suse Linux Enterprise Server 15 SP2
OS Version: 5.3.18-22-default
Filesystem: btrfs
JVM Vendor: Oracle Corporation
JVM Version: Java HotSpot(TM) 64-Bit Server VM 18.9 (build 11.0.5+10-LTS, mixed mode)
JVM Command-line Options: -server -Xmn1700m -Xms1950m -Xmx1950m -XX:UseSSE=4 -XX:UseAVX=1 -XX:SurvivorRatio=1 -XX:TargetSurvivorRatio=99 -XX:ParallelGCThreads=2 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=2 -XX:LoopUnrollLimit=45 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:InlineSmallCode=3900 -XX:MaxInlineSize=270 -XX:FreqInlineSize=2500 -XX:+UseLargePages -XX:+UseParallelOldGC -XX:LargePageSizeInBytes=2m -XX:+UseBiasedLocking -XX:+UseHugeTLBFS -XX:+UseTransparentHugePages
JVM Affinity: for each even physicalCoreId { numactl -C physicalCoreId, physicalCoreId+1, physicalCoreId + 64, physicalCoreId + 65 }
JVM Instances: 32
JVM Initial Heap (MB): 1950
JVM Maximum Heap (MB): 1950
JVM Address Bits: 64
Boot Firmware Version: CFE125S(6.00)
Management Firmware Version: AMBT23l(4.11)
Workload Version: SSJ 1.2.10
Director Location: Controller
Other Software: None
Boot Firmware Settings
Management Firmware Settings
None
System Under Test Notes
Notes
JVM Instance Summary
JVM Instance ssj_ops@100%
localhost.001 194,961
localhost.002 190,187
localhost.003 192,826
localhost.004 190,146
localhost.005 188,394
localhost.006 187,902
localhost.007 193,315
localhost.008 189,613
localhost.009 193,683
localhost.010 193,219
localhost.011 188,248
localhost.012 188,674
localhost.013 188,165
localhost.014 192,026
localhost.015 194,218
localhost.016 189,546
localhost.017 194,589
localhost.018 194,089
localhost.019 191,515
localhost.020 186,627
localhost.021 194,770
localhost.022 188,303
localhost.023 192,228
localhost.024 186,517
localhost.025 193,825
localhost.026 193,749
localhost.027 193,591
localhost.028 191,746
localhost.029 195,173
localhost.030 193,213
localhost.031 185,320
localhost.032 184,173
ssj_ops@100% 6,114,552
ssj_ops@100% per JVM 191,080

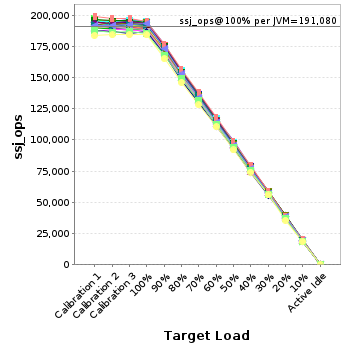

Graph of per-instance results
JVM 'localhost.001' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     196,599
Calibration 2     194,541
Calibration 3     195,188
ssj_ops@calibrated=194,865
100% 100.0% 194,865 194,961
90% 90.1% 175,378 175,501
80% 79.7% 155,892 155,399
70% 69.3% 136,405 134,977
60% 59.5% 116,919 116,017
50% 49.9% 97,432 97,301
40% 40.4% 77,946 78,657
30% 30.1% 58,459 58,647
20% 20.0% 38,973 39,047
10% 10.1% 19,486 19,594
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.

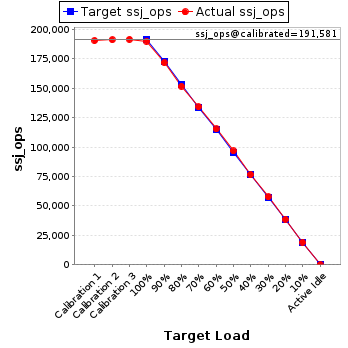

JVM 'localhost.002' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     190,756
Calibration 2     191,389
Calibration 3     191,773
ssj_ops@calibrated=191,581
100% 99.3% 191,581 190,187
90% 89.7% 172,423 171,885
80% 79.3% 153,265 151,872
70% 70.1% 134,107 134,280
60% 60.3% 114,948 115,467
50% 50.5% 95,790 96,729
40% 40.0% 76,632 76,676
30% 30.1% 57,474 57,716
20% 20.2% 38,316 38,747
10% 10.0% 19,158 19,211
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'localhost.003' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     194,793
Calibration 2     193,823
Calibration 3     193,666
ssj_ops@calibrated=193,745
100% 99.5% 193,745 192,826
90% 90.1% 174,370 174,540
80% 79.1% 154,996 153,272
70% 70.2% 135,621 135,999
60% 60.2% 116,247 116,633
50% 49.6% 96,872 96,060
40% 39.9% 77,498 77,213
30% 29.7% 58,123 57,565
20% 20.1% 38,749 38,872
10% 10.2% 19,374 19,802
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'localhost.004' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     190,301
Calibration 2     192,755
Calibration 3     190,417
ssj_ops@calibrated=191,586
100% 99.2% 191,586 190,146
90% 89.6% 172,428 171,631
80% 79.2% 153,269 151,749
70% 69.8% 134,110 133,781
60% 60.1% 114,952 115,094
50% 49.6% 95,793 94,977
40% 39.5% 76,634 75,609
30% 30.1% 57,476 57,696
20% 19.8% 38,317 38,004
10% 10.0% 19,159 19,180
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.

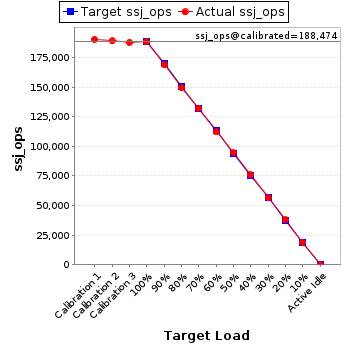

JVM 'localhost.005' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     190,400
Calibration 2     188,933
Calibration 3     188,014
ssj_ops@calibrated=188,474
100% 100.0% 188,474 188,394
90% 89.7% 169,626 169,011
80% 79.4% 150,779 149,656
70% 70.1% 131,931 132,192
60% 59.5% 113,084 112,190
50% 50.2% 94,237 94,622
40% 40.2% 75,389 75,770
30% 29.9% 56,542 56,325
20% 20.1% 37,695 37,821
10% 10.0% 18,847 18,801
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'localhost.006' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     190,250
Calibration 2     190,325
Calibration 3     189,365
ssj_ops@calibrated=189,845
100% 99.0% 189,845 187,902
90% 89.8% 170,860 170,528
80% 79.2% 151,876 150,423
70% 69.6% 132,891 132,075
60% 59.4% 113,907 112,674
50% 49.0% 94,922 92,970
40% 40.1% 75,938 76,080
30% 29.7% 56,953 56,400
20% 20.0% 37,969 38,026
10% 10.0% 18,984 18,975
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'localhost.007' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     192,275
Calibration 2     193,935
Calibration 3     193,879
ssj_ops@calibrated=193,907
100% 99.7% 193,907 193,315
90% 90.3% 174,516 175,082
80% 79.7% 155,125 154,471
70% 70.1% 135,735 135,945
60% 60.0% 116,344 116,430
50% 49.8% 96,953 96,639
40% 40.2% 77,563 77,859
30% 29.6% 58,172 57,469
20% 19.8% 38,781 38,449
10% 9.9% 19,391 19,212
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'localhost.008' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     191,858
Calibration 2     189,925
Calibration 3     192,077
ssj_ops@calibrated=191,001
100% 99.3% 191,001 189,613
90% 89.8% 171,901 171,585
80% 79.2% 152,801 151,236
70% 69.4% 133,701 132,641
60% 59.9% 114,601 114,374
50% 50.3% 95,501 96,013
40% 39.9% 76,400 76,171
30% 30.1% 57,300 57,530
20% 20.1% 38,200 38,387
10% 9.9% 19,100 18,878
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'localhost.009' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     194,071
Calibration 2     195,174
Calibration 3     194,553
ssj_ops@calibrated=194,863
100% 99.4% 194,863 193,683
90% 90.0% 175,377 175,283
80% 79.4% 155,891 154,782
70% 69.8% 136,404 135,982
60% 60.3% 116,918 117,462
50% 49.8% 97,432 96,969
40% 39.7% 77,945 77,274
30% 30.0% 58,459 58,445
20% 20.2% 38,973 39,290
10% 10.1% 19,486 19,633
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.

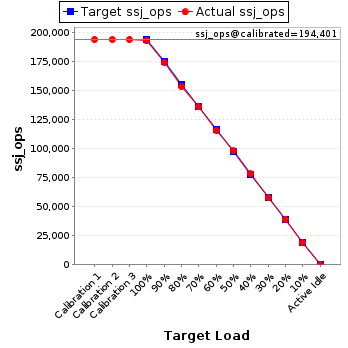

JVM 'localhost.010' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     194,376
Calibration 2     194,395
Calibration 3     194,408
ssj_ops@calibrated=194,401
100% 99.4% 194,401 193,219
90% 89.9% 174,961 174,715
80% 79.1% 155,521 153,729
70% 70.0% 136,081 136,049
60% 59.7% 116,641 116,025
50% 50.5% 97,201 98,128
40% 40.3% 77,760 78,289
30% 29.7% 58,320 57,694
20% 20.1% 38,880 39,075
10% 9.8% 19,440 19,060
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'localhost.011' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     189,313
Calibration 2     189,071
Calibration 3     188,584
ssj_ops@calibrated=188,828
100% 99.7% 188,828 188,248
90% 89.9% 169,945 169,846
80% 79.3% 151,062 149,682
70% 69.1% 132,179 130,485
60% 60.2% 113,297 113,677
50% 50.2% 94,414 94,856
40% 39.9% 75,531 75,387
30% 29.9% 56,648 56,434
20% 19.9% 37,766 37,622
10% 9.7% 18,883 18,295
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'localhost.012' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     190,004
Calibration 2     189,808
Calibration 3     190,085
ssj_ops@calibrated=189,947
100% 99.3% 189,947 188,674
90% 90.1% 170,952 171,118
80% 79.0% 151,957 150,049
70% 69.9% 132,963 132,702
60% 59.6% 113,968 113,251
50% 50.0% 94,973 95,022
40% 40.3% 75,979 76,594
30% 30.0% 56,984 56,898
20% 20.1% 37,989 38,192
10% 10.3% 18,995 19,517
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'localhost.013' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     193,362
Calibration 2     188,936
Calibration 3     190,145
ssj_ops@calibrated=189,541
100% 99.3% 189,541 188,165
90% 89.7% 170,587 170,098
80% 79.3% 151,632 150,278
70% 69.5% 132,678 131,665
60% 59.7% 113,724 113,236
50% 50.2% 94,770 95,144
40% 39.4% 75,816 74,715
30% 30.4% 56,862 57,631
20% 20.1% 37,908 38,163
10% 10.1% 18,954 19,207
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'localhost.014' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     190,800
Calibration 2     193,512
Calibration 3     192,664
ssj_ops@calibrated=193,088
100% 99.5% 193,088 192,026
90% 89.7% 173,779 173,112
80% 79.2% 154,470 152,854
70% 70.0% 135,162 135,129
60% 60.0% 115,853 115,804
50% 49.9% 96,544 96,330
40% 40.0% 77,235 77,327
30% 29.9% 57,926 57,781
20% 19.8% 38,618 38,156
10% 10.1% 19,309 19,461
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'localhost.015' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     194,424
Calibration 2     195,664
Calibration 3     194,744
ssj_ops@calibrated=195,204
100% 99.5% 195,204 194,218
90% 89.8% 175,684 175,218
80% 79.1% 156,163 154,487
70% 69.4% 136,643 135,529
60% 59.6% 117,122 116,333
50% 50.3% 97,602 98,177
40% 40.0% 78,082 78,039
30% 29.8% 58,561 58,132
20% 20.3% 39,041 39,601
10% 9.7% 19,520 19,026
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'localhost.016' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     192,033
Calibration 2     190,457
Calibration 3     190,008
ssj_ops@calibrated=190,233
100% 99.6% 190,233 189,546
90% 89.7% 171,209 170,643
80% 80.3% 152,186 152,843
70% 69.9% 133,163 132,925
60% 59.9% 114,140 113,976
50% 49.9% 95,116 95,014
40% 39.6% 76,093 75,241
30% 30.0% 57,070 57,016
20% 20.3% 38,047 38,692
10% 10.1% 19,023 19,155
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'localhost.017' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     194,113
Calibration 2     194,842
Calibration 3     196,059
ssj_ops@calibrated=195,450
100% 99.6% 195,450 194,589
90% 90.2% 175,905 176,392
80% 79.3% 156,360 154,895
70% 70.2% 136,815 137,146
60% 59.7% 117,270 116,632
50% 50.7% 97,725 99,142
40% 40.0% 78,180 78,256
30% 30.0% 58,635 58,584
20% 20.2% 39,090 39,452
10% 10.2% 19,545 19,869
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'localhost.018' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     197,358
Calibration 2     192,613
Calibration 3     193,575
ssj_ops@calibrated=193,094
100% 100.5% 193,094 194,089
90% 90.0% 173,785 173,722
80% 79.5% 154,475 153,422
70% 69.7% 135,166 134,611
60% 60.2% 115,856 116,168
50% 49.8% 96,547 96,070
40% 39.7% 77,238 76,630
30% 29.8% 57,928 57,632
20% 20.1% 38,619 38,725
10% 9.7% 19,309 18,817
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'localhost.019' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     192,492
Calibration 2     191,092
Calibration 3     191,602
ssj_ops@calibrated=191,347
100% 100.1% 191,347 191,515
90% 90.2% 172,212 172,674
80% 79.7% 153,077 152,555
70% 70.0% 133,943 133,849
60% 59.9% 114,808 114,571
50% 50.1% 95,673 95,941
40% 40.2% 76,539 76,946
30% 30.0% 57,404 57,484
20% 20.0% 38,269 38,295
10% 10.0% 19,135 19,100
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'localhost.020' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     186,713
Calibration 2     188,138
Calibration 3     188,492
ssj_ops@calibrated=188,315
100% 99.1% 188,315 186,627
90% 90.3% 169,483 170,048
80% 79.8% 150,652 150,211
70% 70.2% 131,820 132,259
60% 59.5% 112,989 111,984
50% 49.9% 94,157 93,886
40% 39.7% 75,326 74,730
30% 30.2% 56,494 56,842
20% 19.8% 37,663 37,350
10% 9.8% 18,831 18,500
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'localhost.021' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     194,972
Calibration 2     195,021
Calibration 3     195,747
ssj_ops@calibrated=195,384
100% 99.7% 195,384 194,770
90% 89.5% 175,846 174,865
80% 79.5% 156,307 155,296
70% 69.4% 136,769 135,630
60% 60.0% 117,231 117,240
50% 50.0% 97,692 97,744
40% 39.5% 78,154 77,243
30% 30.2% 58,615 58,991
20% 19.8% 39,077 38,757
10% 10.0% 19,538 19,446
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'localhost.022' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     189,275
Calibration 2     190,577
Calibration 3     188,992
ssj_ops@calibrated=189,784
100% 99.2% 189,784 188,303
90% 89.7% 170,806 170,325
80% 79.3% 151,827 150,427
70% 70.2% 132,849 133,287
60% 59.5% 113,870 112,831
50% 49.9% 94,892 94,738
40% 39.8% 75,914 75,513
30% 30.0% 56,935 56,873
20% 20.1% 37,957 38,170
10% 10.1% 18,978 19,179
Active Idle   0 0

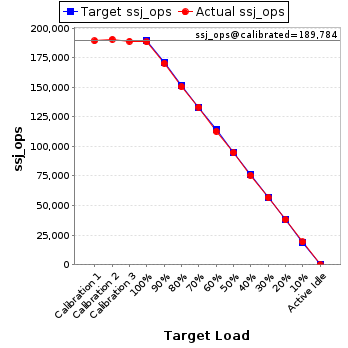

Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'localhost.023' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     194,489
Calibration 2     192,752
Calibration 3     193,531
ssj_ops@calibrated=193,141
100% 99.5% 193,141 192,228
90% 90.4% 173,827 174,507
80% 79.7% 154,513 153,892
70% 69.8% 135,199 134,813
60% 59.8% 115,885 115,459
50% 49.9% 96,571 96,395
40% 40.0% 77,257 77,190
30% 30.0% 57,942 57,922
20% 20.2% 38,628 39,104
10% 9.9% 19,314 19,213
Active Idle   0 0

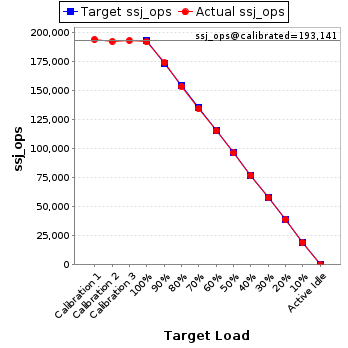

Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'localhost.024' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     187,347
Calibration 2     186,836
Calibration 3     185,571
ssj_ops@calibrated=186,203
100% 100.2% 186,203 186,517
90% 90.2% 167,583 168,013
80% 79.2% 148,963 147,508
70% 69.8% 130,342 129,962
60% 59.6% 111,722 111,009
50% 49.8% 93,102 92,698
40% 39.8% 74,481 74,167
30% 29.9% 55,861 55,589
20% 20.1% 37,241 37,391
10% 9.9% 18,620 18,492
Active Idle   0 0

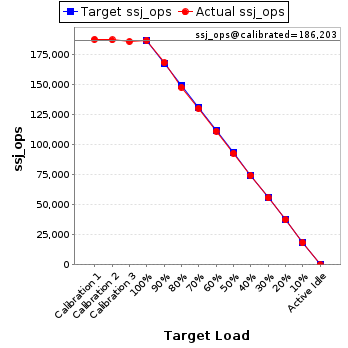

Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'localhost.025' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     196,787
Calibration 2     195,795
Calibration 3     195,541
ssj_ops@calibrated=195,668
100% 99.1% 195,668 193,825
90% 89.9% 176,102 175,934
80% 79.4% 156,535 155,413
70% 70.0% 136,968 136,933
60% 59.3% 117,401 116,028
50% 50.0% 97,834 97,926
40% 39.7% 78,267 77,583
30% 30.1% 58,701 58,868
20% 20.2% 39,134 39,476
10% 10.3% 19,567 20,155
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'localhost.026' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     191,807
Calibration 2     193,836
Calibration 3     192,512
ssj_ops@calibrated=193,174
100% 100.3% 193,174 193,749
90% 89.4% 173,856 172,694
80% 79.1% 154,539 152,749
70% 69.6% 135,222 134,413
60% 59.9% 115,904 115,696
50% 50.0% 96,587 96,653
40% 40.2% 77,269 77,706
30% 30.5% 57,952 58,941
20% 20.4% 38,635 39,367
10% 10.1% 19,317 19,580
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'localhost.027' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     194,166
Calibration 2     193,258
Calibration 3     194,746
ssj_ops@calibrated=194,002
100% 99.8% 194,002 193,591
90% 90.5% 174,602 175,563
80% 79.7% 155,202 154,659
70% 70.2% 135,801 136,256
60% 60.2% 116,401 116,738
50% 49.8% 97,001 96,652
40% 40.0% 77,601 77,522
30% 29.7% 58,201 57,554
20% 20.0% 38,800 38,824
10% 10.1% 19,400 19,507
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'localhost.028' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     192,418
Calibration 2     191,044
Calibration 3     192,802
ssj_ops@calibrated=191,923
100% 99.9% 191,923 191,746
90% 90.6% 172,731 173,946
80% 79.9% 153,538 153,413
70% 70.6% 134,346 135,405
60% 59.7% 115,154 114,527
50% 50.1% 95,962 96,231
40% 40.2% 76,769 77,121
30% 29.6% 57,577 56,793
20% 19.9% 38,385 38,278
10% 10.0% 19,192 19,193
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'localhost.029' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     198,904
Calibration 2     197,562
Calibration 3     197,422
ssj_ops@calibrated=197,492
100% 98.8% 197,492 195,173
90% 89.5% 177,743 176,728
80% 79.1% 157,994 156,149
70% 69.7% 138,245 137,684
60% 59.7% 118,495 117,869
50% 49.9% 98,746 98,597
40% 40.3% 78,997 79,632
30% 29.8% 59,248 58,859
20% 19.7% 39,498 38,812
10% 10.1% 19,749 20,007
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'localhost.030' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     191,940
Calibration 2     191,839
Calibration 3     192,159
ssj_ops@calibrated=191,999
100% 100.6% 191,999 193,213
90% 90.0% 172,799 172,834
80% 79.6% 153,599 152,783
70% 69.7% 134,399 133,781
60% 59.5% 115,199 114,274
50% 49.8% 95,999 95,657
40% 40.0% 76,800 76,894
30% 29.7% 57,600 57,109
20% 20.2% 38,400 38,740
10% 9.9% 19,200 19,073
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'localhost.031' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     187,270
Calibration 2     186,280
Calibration 3     186,465
ssj_ops@calibrated=186,373
100% 99.4% 186,373 185,320
90% 90.0% 167,736 167,807
80% 80.0% 149,098 149,072
70% 70.4% 130,461 131,270
60% 60.1% 111,824 111,956
50% 50.4% 93,186 93,907
40% 40.5% 74,549 75,458
30% 30.0% 55,912 55,996
20% 19.9% 37,275 37,077
10% 9.8% 18,637 18,268
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'localhost.032' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     183,730
Calibration 2     184,151
Calibration 3     184,234
ssj_ops@calibrated=184,192
100% 100.0% 184,192 184,173
90% 89.6% 165,773 165,073
80% 79.4% 147,354 146,216
70% 69.6% 128,935 128,162
60% 60.0% 110,515 110,588
50% 49.9% 92,096 91,940
40% 40.2% 73,677 74,098
30% 30.3% 55,258 55,862
20% 19.4% 36,838 35,758
10% 10.1% 18,419 18,526
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
