SPECpower_ssj2008
Power/Temperature Details
Copyright © 2007-2021 Standard Performance Evaluation Corporation
| Hewlett Packard Enterprise ProLiant DL360 Gen10 Plus | SPECpower_ssj2008 = 12,170 overall ssj_ops/watt | ||||
| Test Sponsor: | Hewlett Packard Enterprise | SPEC License #: | 3 | Test Method: | Single Node |
| Tested By: | Hewlett Packard Enterprise | Test Location: | Houston, TX, USA | Test Date: | May 27, 2021 |
| Hardware Availability: | May-2021 | Software Availability: | Apr-2021 | Publication: | Jun 30, 2021 |
| System Source: | Single Supplier | System Designation: | Server | Power Provisioning: | Line-powered |

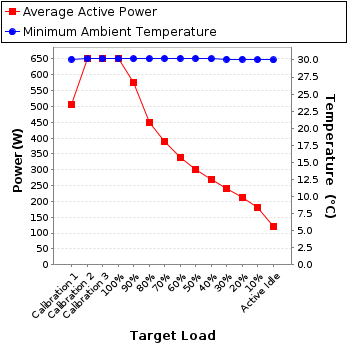

| Target Load | Average Active Power (W) | Minimum Ambient Temperature (°C) |
|---|---|---|
| Calibration 1 | 507 | 30.1 |
| Calibration 2 | 651 | 30.2 |
| Calibration 3 | 652 | 30.2 |
| 100% | 651 | 30.2 |
| 90% | 576 | 30.2 |
| 80% | 450 | 30.2 |
| 70% | 389 | 30.2 |
| 60% | 339 | 30.2 |
| 50% | 301 | 30.2 |
| 40% | 268 | 30.2 |
| 30% | 240 | 30.1 |
| 20% | 211 | 30.1 |
| 10% | 181 | 30.1 |
| Active Idle | 119 | 30.0 |
| Power Analyzer pwr1 | |
|---|---|
| Hardware Vendor: | Yokogawa |
| Model: | WT210 |
| Serial Number: | 91GC23225 |
| Connectivity: | GPIB vi NI GPIB-USB-HS |
| Input Connection: | Default |
| Metrology Institute: | NIST |
| Accredited by: | TRANSCAT |
| Calibration Label: | 5-F13XW-20-1 |
| Date of Calibration: | 28-Jan-2021 |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| PTDaemon Version: | 1.9.2-3976349f-20201208 |
| Setup Description: | SUT Power Supply 1 |
| Temperature Sensor temp1 | |
|---|---|
| Hardware Vendor: | Digi International Inc. |
| Model: | Watchport/H |
| Driver Version: | 5.70.105.0 |
| Connectivity: | USB |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| Setup Description: | 5 mm in front of SUT main intake |
| Target Load | Voltage (V) | Current (A) | Avg Power Factor | Avg Active Power (W) | Power Measurement Uncertainty (%) | ||
|---|---|---|---|---|---|---|---|
| Avg | Range | Avg | Range | ||||
| Calibration 1 | 211 | 300.0 | 2.50 | 5.0 | 0.993 | 507 | 0.5% |
| Calibration 2 | 211 | 300.0 | 3.10 | 5.0 | 0.995 | 651 | 0.4% |
| Calibration 3 | 211 | 300.0 | 3.11 | 5.0 | 0.995 | 652 | 0.4% |
| 100% | 211 | 300.0 | 3.11 | 5.0 | 0.995 | 651 | 0.4% |
| 90% | 211 | 300.0 | 2.75 | 5.0 | 0.994 | 576 | 0.4% |
| 80% | 211 | 300.0 | 2.15 | 5.0 | 0.994 | 450 | 0.5% |
| 70% | 211 | 300.0 | 1.86 | 5.0 | 0.991 | 389 | 0.6% |
| 60% | 211 | 300.0 | 1.62 | 2.0 | 0.992 | 339 | 0.4% |
| 50% | 212 | 300.0 | 1.44 | 2.0 | 0.991 | 301 | 0.4% |
| 40% | 211 | 300.0 | 1.28 | 2.0 | 0.991 | 268 | 0.4% |
| 30% | 211 | 300.0 | 1.15 | 2.0 | 0.990 | 240 | 0.4% |
| 20% | 211 | 300.0 | 1.01 | 2.0 | 0.990 | 211 | 0.5% |
| 10% | 212 | 300.0 | 0.864 | 2.0 | 0.989 | 181 | 0.5% |
| Active Idle | 212 | 300.0 | 0.575 | 2.0 | 0.979 | 119 | 0.7% |
