Fujitsu PRIMERGY RX2530 M6 ssj_ops@100% = 7,573,884
ssj_ops@100% per JVM = 946,736
Test Sponsor: Fujitsu SPEC License #: 19 Test Method: Single Node
Tested By: Fujitsu Test Location: Kawasaki, Kanagawa, Japan Test Date: Apr 2, 2021
Hardware Availability: May-2021 Software Availability: Dec-2020 Publication: Apr 28, 2021
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     5,705,593
Calibration 2     7,571,015
Calibration 3     7,577,805
ssj_ops@calibrated=7,574,410
100% 100.0% 7,574,410 7,573,884
90% 90.0% 6,816,969 6,814,856
80% 79.8% 6,059,528 6,047,198
70% 69.9% 5,302,087 5,292,424
60% 59.9% 4,544,646 4,535,904
50% 49.9% 3,787,205 3,781,094
40% 40.0% 3,029,764 3,031,768
30% 30.1% 2,272,323 2,279,204
20% 20.0% 1,514,882 1,516,364
10% 10.0% 757,441 758,504
Active Idle   0 0
Graph of results
System Under Test
Set: 'RX2530M6'
Set Identifier: RX2530M6
Set Description: System Under Test
# of Identical Nodes: 1
Comment: Single Node
Hardware
Hardware Vendor: Fujitsu
Model: PRIMERGY RX2530 M6
Form Factor: 1U
CPU Name: Intel Xeon Platinum 8380
CPU Characteristics: 40-Core, 2.30GHz, 60MB L3 Cache
CPU Frequency (MHz): 2300
CPU(s) Enabled: 80 cores, 2 chips, 40 cores/chip
Hardware Threads: 160 (2 / core)
CPU(s) Orderable: 2 chips
Primary Cache: 32 KB I + 48 KB D on chip per core
Secondary Cache: 1280 KB I+D on chip per core
Tertiary Cache: 60 MB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 256
# and size of DIMM: 16 x 16384 MB
Memory Details: 16 x 16 GB 2Rx8 PC4-3200Y-R; slots 1A, 1B, 1C, 1D, 1E, 1F, 1G, 1H, 1J, 1K, 1L, 1M, 1N, 1P, 1Q, 1R populated
Power Supply Quantity and Rating (W): 1 x 900
Power Supply Details: S26113-E629-V50-1
Disk Drive: 1 x SSD M.2 240GB, S26361-F5787-E240
Disk Controller: Integrated SATA Controller
# and type of Network Interface Cards (NICs) Installed: 1 x PLAN CP I350-T4 4X 1000BASE-T OCPv3, PYBLA274U
NICs Enabled in Firmware / OS / Connected: 4/4/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Enabled (see SUT Notes)
Operating System (OS): SUSE Linux Enterprise Server 15 SP2
OS Version: 5.3.18-24.43-default
Filesystem: btrfs
JVM Vendor: Oracle Corporation
JVM Version: Oracle Java HotSpot(TM) 64-Bit Server VM 18.9 (build 11.0.9+7-LTS, mixed mode)
JVM Command-line Options: -server -Xmn16000m -Xms18000m -Xmx18000m -XX:+UseHugeTLBFS -XX:+UseLargePages -XX:+UseTransparentHugePages -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchInstr=0 -XX:AllocatePrefetchLines=4 -XX:InlineSmallCode=3900 -XX:MaxInlineSize=270 -XX:ParallelGCThreads=8 -XX:SurvivorRatio=1 -XX:TargetSurvivorRatio=99 -XX:+UseParallelOldGC -XX:FreqInlineSize=2500 -XX:MinJumpTableSize=18 -XX:UseAVX=0 -XX:+UseBiasedLocking
JVM Affinity: chrt -r 1 taskset -c [(0,1,2,3,4,5,6,7,8,9,80,81,82,83,84,85,86,87,88,89),(10,11,12,13,14,15,16,17,18,19,90,91,92,93,94,95,96,97,98),(20,21,22,23,24,25,26,27,28,29,100,101,102,103,104,105,106,107,108,109),(30,31,32,33,34,35,36,37,38,39,110,111,112,113,114,115,116,117,118),(40,41,42,43,44,45,46,47,48,49,120,121,122,123,124,125,126,127,128,129),(50,51,52,53,54,55,56,57,58,59,130,131,132,133,134,135,136,137,138),(60,61,62,63,64,65,66,67,68,69,140,141,142,143,144,145,146,147,148,149),(70,71,72,73,74,75,76,77,78,79,150,151,152,153,154,155,156,157,158)] numactl --membind=[0-3]
JVM Instances: 8
JVM Initial Heap (MB): 1950
JVM Maximum Heap (MB): 1950
JVM Address Bits: 64
Boot Firmware Version: R1.3.0
Management Firmware Version: 3.20m
Workload Version: SSJ 1.2.10
Director Location: Controller
Other Software: None
Boot Firmware Settings
Management Firmware Settings
None
System Under Test Notes
Notes
JVM Instance Summary
JVM Instance ssj_ops@100%
localhost.001 965,313
localhost.002 928,791
localhost.003 964,115
localhost.004 931,929
localhost.005 955,825
localhost.006 937,621
localhost.007 955,371
localhost.008 934,920
ssj_ops@100% 7,573,884
ssj_ops@100% per JVM 946,736

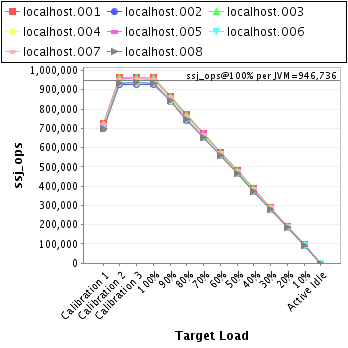

Graph of per-instance results
JVM 'localhost.001' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     726,894
Calibration 2     961,797
Calibration 3     964,264
ssj_ops@calibrated=963,031
100% 100.2% 963,031 965,313
90% 89.9% 866,727 865,805
80% 80.1% 770,424 771,376
70% 70.0% 674,121 674,276
60% 59.8% 577,818 576,089
50% 50.0% 481,515 481,213
40% 40.2% 385,212 386,968
30% 29.9% 288,909 287,707
20% 20.1% 192,606 193,284
10% 10.0% 96,303 96,696
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'localhost.002' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     700,648
Calibration 2     929,931
Calibration 3     929,516
ssj_ops@calibrated=929,723
100% 99.9% 929,723 928,791
90% 90.0% 836,751 836,647
80% 79.9% 743,779 743,165
70% 69.9% 650,806 650,142
60% 59.9% 557,834 557,173
50% 50.1% 464,862 466,168
40% 39.9% 371,889 371,118
30% 30.0% 278,917 278,787
20% 20.2% 185,945 187,384
10% 10.0% 92,972 93,160
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'localhost.003' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     726,276
Calibration 2     963,579
Calibration 3     962,090
ssj_ops@calibrated=962,835
100% 100.1% 962,835 964,115
90% 89.8% 866,551 864,333
80% 80.0% 770,268 770,546
70% 69.8% 673,984 671,878
60% 59.9% 577,701 576,932
50% 50.1% 481,417 482,306
40% 40.3% 385,134 388,451
30% 30.1% 288,850 290,033
20% 19.9% 192,567 192,016
10% 10.0% 96,283 96,606
Active Idle   0 0

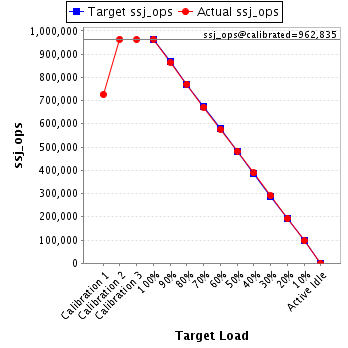

Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'localhost.004' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     702,837
Calibration 2     931,896
Calibration 3     933,937
ssj_ops@calibrated=932,917
100% 99.9% 932,917 931,929
90% 90.0% 839,625 839,928
80% 79.8% 746,333 744,472
70% 69.8% 653,042 651,583
60% 60.0% 559,750 559,736
50% 49.7% 466,458 463,504
40% 40.0% 373,167 372,777
30% 30.0% 279,875 280,207
20% 20.0% 186,583 186,264
10% 10.0% 93,292 93,013
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'localhost.005' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     717,840
Calibration 2     956,659
Calibration 3     957,103
ssj_ops@calibrated=956,881
100% 99.9% 956,881 955,825
90% 90.0% 861,193 860,757
80% 79.4% 765,505 760,005
70% 69.9% 669,816 669,159
60% 59.8% 574,128 572,067
50% 49.8% 478,440 476,402
40% 39.8% 382,752 380,830
30% 30.1% 287,064 287,993
20% 20.0% 191,376 191,808
10% 10.0% 95,688 95,928
Active Idle   0 0

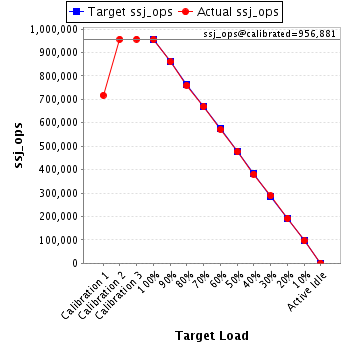

Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'localhost.006' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     708,734
Calibration 2     937,817
Calibration 3     938,007
ssj_ops@calibrated=937,912
100% 100.0% 937,912 937,621
90% 89.8% 844,121 842,678
80% 79.6% 750,330 746,762
70% 69.7% 656,538 654,123
60% 60.1% 562,747 563,254
50% 50.0% 468,956 468,807
40% 40.1% 375,165 375,880
30% 30.3% 281,374 283,848
20% 19.9% 187,582 186,977
10% 10.0% 93,791 94,075
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'localhost.007' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     721,094
Calibration 2     954,195
Calibration 3     956,115
ssj_ops@calibrated=955,155
100% 100.0% 955,155 955,371
90% 90.3% 859,639 862,294
80% 79.9% 764,124 763,186
70% 69.9% 668,608 667,223
60% 59.7% 573,093 570,441
50% 49.8% 477,577 475,402
40% 40.0% 382,062 381,668
30% 30.3% 286,546 289,237
20% 20.0% 191,031 190,977
10% 10.0% 95,515 95,163
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'localhost.008' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     701,271
Calibration 2     935,141
Calibration 3     936,774
ssj_ops@calibrated=935,958
100% 99.9% 935,958 934,920
90% 90.0% 842,362 842,415
80% 79.9% 748,766 747,684
70% 69.9% 655,170 654,040
60% 59.9% 561,575 560,212
50% 49.9% 467,979 467,292
40% 40.0% 374,383 374,076
30% 30.1% 280,787 281,391
20% 20.0% 187,192 187,654
10% 10.0% 93,596 93,863
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
