SPECpower_ssj2008
Power/Temperature Details
Copyright © 2007-2021 Standard Performance Evaluation Corporation
| Fujitsu PRIMERGY RX2530 M6 | SPECpower_ssj2008 = 11,533 overall ssj_ops/watt | ||||
| Test Sponsor: | Fujitsu | SPEC License #: | 19 | Test Method: | Single Node |
| Tested By: | Fujitsu | Test Location: | Kawasaki, Kanagawa, Japan | Test Date: | Apr 2, 2021 |
| Hardware Availability: | May-2021 | Software Availability: | Dec-2020 | Publication: | Apr 28, 2021 |
| System Source: | Single Supplier | System Designation: | Server | Power Provisioning: | Line-powered |

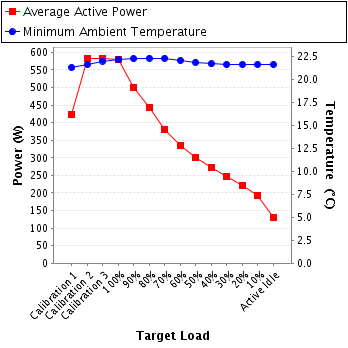

| Target Load | Average Active Power (W) | Minimum Ambient Temperature (°C) |
|---|---|---|
| Calibration 1 | 423 | 21.3 |
| Calibration 2 | 583 | 21.6 |
| Calibration 3 | 584 | 22.0 |
| 100% | 580 | 22.2 |
| 90% | 499 | 22.2 |
| 80% | 444 | 22.3 |
| 70% | 380 | 22.3 |
| 60% | 336 | 22.1 |
| 50% | 302 | 21.9 |
| 40% | 274 | 21.7 |
| 30% | 248 | 21.6 |
| 20% | 221 | 21.6 |
| 10% | 194 | 21.6 |
| Active Idle | 131 | 21.6 |
| Power Analyzer pwr1 | |
|---|---|
| Hardware Vendor: | Hioki |
| Model: | Hioki3336 |
| Serial Number: | 170213562 |
| Connectivity: | RS-232 |
| Input Connection: | Default |
| Metrology Institute: | NICT (National Institute of Information and Communications Technology) |
| Accredited by: | HIOKI E.E. CORPORATION |
| Calibration Label: | H06400088-2002 |
| Date of Calibration: | 25-Jun-2020 |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| PTDaemon Version: | 1.9.2-3976349f-20201208 |
| Setup Description: | Connected to PSU 1 |
| Temperature Sensor temp1 | |
|---|---|
| Hardware Vendor: | Digi International Inc. |
| Model: | Watchport/H |
| Driver Version: | Watchport Virtual Port 5.70.105.0 |
| Connectivity: | USB |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| Setup Description: | 5 mm in front of SUT main air intake |

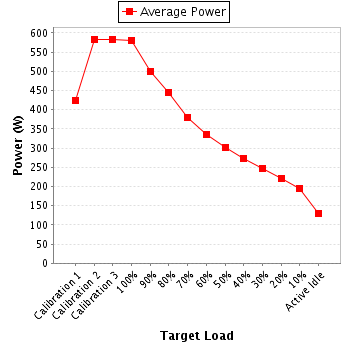

| Target Load | Voltage (V) | Current (A) | Avg Power Factor | Avg Active Power (W) | Power Measurement Uncertainty (%) | ||
|---|---|---|---|---|---|---|---|
| Avg | Range | Avg | Range | ||||
| Calibration 1 | 200 | 300.0 | 2.27 | 5.0 | 0.957 | 423 | 0.3% |
| Calibration 2 | 200 | 300.0 | 3.00 | 5.0 | 0.972 | 583 | 0.3% |
| Calibration 3 | 200 | 300.0 | 3.00 | 5.0 | 0.971 | 584 | 0.3% |
| 100% | 200 | 300.0 | 2.96 | 5.0 | 0.980 | 580 | 0.3% |
| 90% | 200 | 300.0 | 2.56 | 5.0 | 0.975 | 499 | 0.3% |
| 80% | 200 | 300.0 | 2.30 | 5.0 | 0.969 | 444 | 0.3% |
| 70% | 200 | 300.0 | 1.98 | 5.0 | 0.960 | 380 | 0.3% |
| 60% | 200 | 300.0 | 1.77 | 2.0 | 0.951 | 336 | 0.2% |
| 50% | 200 | 300.0 | 1.60 | 2.0 | 0.942 | 302 | 0.2% |
| 40% | 200 | 300.0 | 1.47 | 2.0 | 0.932 | 274 | 0.2% |
| 30% | 200 | 300.0 | 1.34 | 2.0 | 0.922 | 248 | 0.3% |
| 20% | 200 | 300.0 | 1.22 | 2.0 | 0.911 | 221 | 0.3% |
| 10% | 200 | 300.0 | 1.08 | 2.0 | 0.898 | 194 | 0.3% |
| Active Idle | 200 | 300.0 | 0.760 | 2.0 | 0.861 | 131 | 0.4% |
