SPECpower_ssj2008
Power/Temperature Details
Copyright © 2007-2021 Standard Performance Evaluation Corporation
| Lenovo Global Technology ThinkSystem SR665 | SPECpower_ssj2008 = 23,505 overall ssj_ops/watt | ||||
| Test Sponsor: | Lenovo Global Technology | SPEC License #: | 9017 | Test Method: | Single Node |
| Tested By: | Lenovo Global Technology | Test Location: | Beijing, China | Test Date: | Mar 12, 2021 |
| Hardware Availability: | Mar-2021 | Software Availability: | May-2020 | Publication: | Apr 8, 2021 |
| System Source: | Single Supplier | System Designation: | Server | Power Provisioning: | Line-powered |

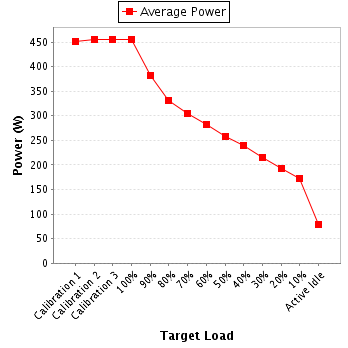

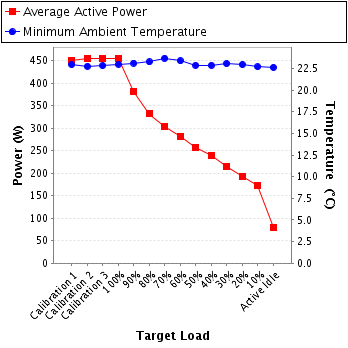

| Target Load | Average Active Power (W) | Minimum Ambient Temperature (°C) |
|---|---|---|
| Calibration 1 | 450 | 22.9 |
| Calibration 2 | 455 | 22.8 |
| Calibration 3 | 456 | 22.8 |
| 100% | 454 | 23.0 |
| 90% | 382 | 23.1 |
| 80% | 332 | 23.2 |
| 70% | 304 | 23.7 |
| 60% | 281 | 23.4 |
| 50% | 258 | 22.9 |
| 40% | 239 | 22.9 |
| 30% | 216 | 23.1 |
| 20% | 194 | 22.9 |
| 10% | 172 | 22.7 |
| Active Idle | 79.3 | 22.6 |
| Power Analyzer pwr1 | |
|---|---|
| Hardware Vendor: | YOKOGAWA, Inc. |
| Model: | WT310E |
| Serial Number: | C3SH31010E |
| Connectivity: | USB |
| Input Connection: | Default |
| Metrology Institute: | China National Accreditation Service for Conformity Assessment (CNAS) |
| Accredited by: | China CEPREI Laboratory |
| Calibration Label: | J202009040176A-0005 |
| Date of Calibration: | 25-Sep-2020 |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| PTDaemon Version: | 1.9.2-3976349f-20201208 |
| Setup Description: | Connected to PSU 1 |
| Temperature Sensor temp1 | |
|---|---|
| Hardware Vendor: | Digi Intermational, Inc. |
| Model: | Watchport/H |
| Driver Version: | 5.70.105.0 |
| Connectivity: | USB |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| Setup Description: | 50 mm in front of SUT main intake |
| Target Load | Voltage (V) | Current (A) | Avg Power Factor | Avg Active Power (W) | Power Measurement Uncertainty (%) | ||
|---|---|---|---|---|---|---|---|
| Avg | Range | Avg | Range | ||||
| Calibration 1 | 220 | 300.0 | 2.06 | 5.0 | 0.995 | 450 | 0.3% |
| Calibration 2 | 220 | 300.0 | 2.08 | 5.0 | 0.995 | 455 | 0.3% |
| Calibration 3 | 220 | 300.0 | 2.08 | 5.0 | 0.995 | 456 | 0.3% |
| 100% | 220 | 300.0 | 2.08 | 5.0 | 0.995 | 454 | 0.3% |
| 90% | 220 | 300.0 | 1.75 | 5.0 | 0.995 | 382 | 0.3% |
| 80% | 220 | 300.0 | 1.52 | 5.0 | 0.993 | 332 | 0.4% |
| 70% | 220 | 300.0 | 1.39 | 2.0 | 0.993 | 304 | 0.2% |
| 60% | 220 | 300.0 | 1.29 | 2.0 | 0.992 | 281 | 0.2% |
| 50% | 220 | 300.0 | 1.18 | 2.0 | 0.990 | 258 | 0.2% |
| 40% | 220 | 300.0 | 1.10 | 2.0 | 0.988 | 239 | 0.3% |
| 30% | 220 | 300.0 | 0.996 | 2.0 | 0.986 | 216 | 0.3% |
| 20% | 220 | 300.0 | 0.886 | 2.0 | 0.993 | 194 | 0.3% |
| 10% | 220 | 300.0 | 0.791 | 2.0 | 0.990 | 172 | 0.3% |
| Active Idle | 220 | 300.0 | 0.410 | 1.0 | 0.898 | 79.3 | 0.4% |
